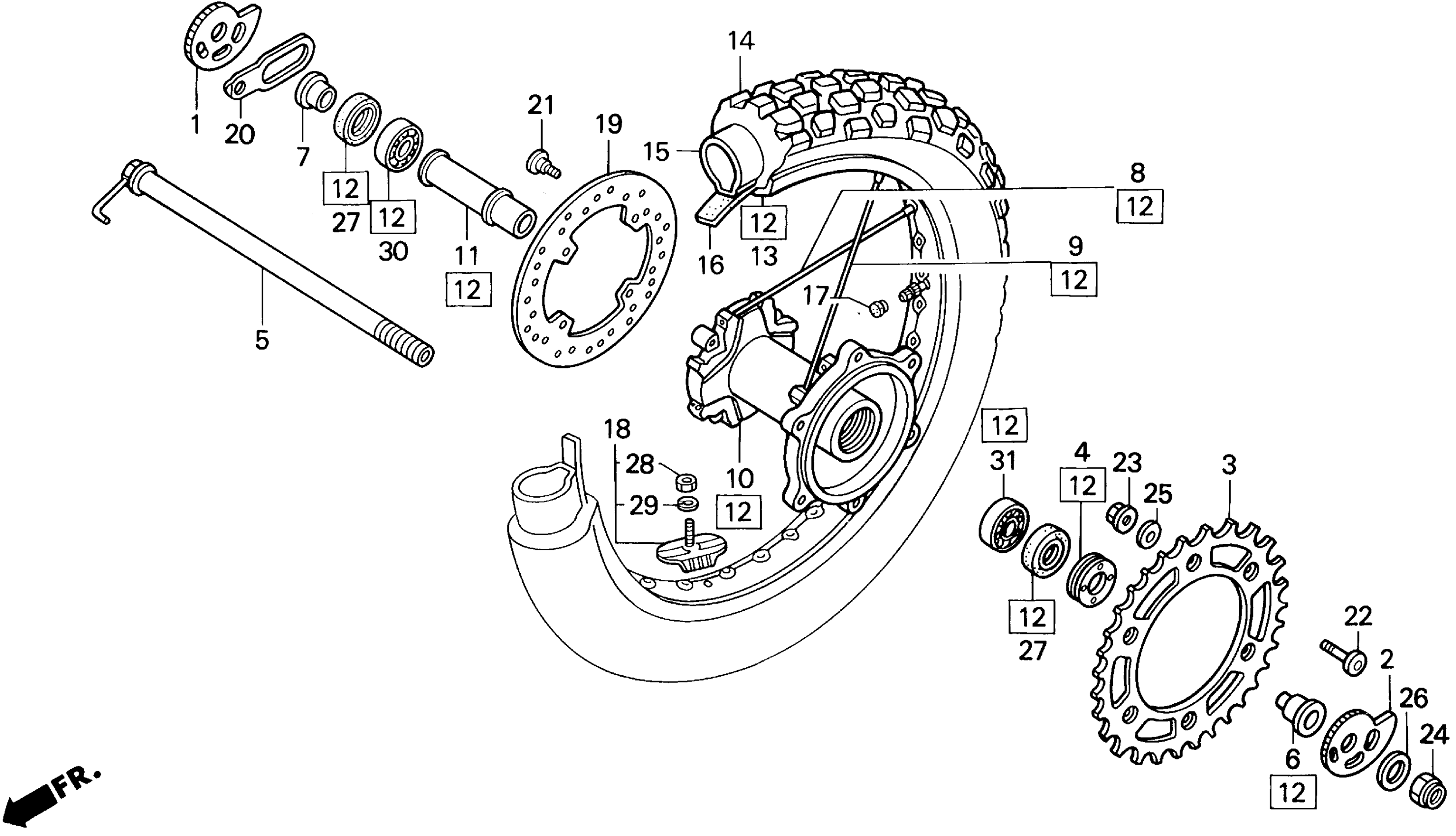

Honda XR250RA (95) MOTORCYCLE, JPN, VIN# JH2ME060-SM100001 REAR WHEEL Diagram

#

Description
Price

1

ADJUSTER, R. CHAIN

40544-MN1-670

$11.70

2

ADJUSTER, L. CHAIN

40545-MN1-670

$12.76

3

SPROCKET, FINAL DRIVEN (48T)

41201-KCV-670

Unavailable

4

RETAINER, BEARING

41231-429-000

$29.54

5

AXLE, RR. WHEEL

42301-KZ1-600

Unavailable

6

COLLAR, RR. WHEEL

42312-KZ1-670

Unavailable

7

COLLAR, RR. WHEEL SIDE

42313-KZ1-670

$17.22

8

SPOKE SET A, RR. (A10X223)

42610-KZ1-405

Unavailable

9

SPOKE SET B, RR. (A10X220)

42611-KZ1-405

Unavailable

10

HUB, RR. WHEEL

42601-KCV-770

Unavailable

11

COLLAR, RR. AXLE DISTANCE

42620-KZ1-670

Unavailable

12

WHEEL SET, RR.

42650-KCV-305

Unavailable

13

RIM, RR. WHEEL

42701-KZ1-671

Unavailable

14

TIRE, RR. (110/100-18) (64M) (INOUE)

42711-KT1-671

Unavailable

15

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$34.91

16

FLAP, TIRE (1.85X18) (INOUE)

42713-446-631

Unavailable

17

CAP, VALVE

42714-KA3-710

$10.04

18

STOPPER, BEAD (1.85)

42715-KA2-680

$30.86

19

DISK, RR. BRAKE

43351-KZ1-770

$169.00

20

STOPPER, RR. AXLE

52162-KF0-000

$5.43

21

BOLT, DISK (8X22)

90105-MK5-010

$4.91

22

BOLT, SPROCKET FIXING

90125-MN1-671

$4.91

23

NUT, AXLE (10MM)

90304-GA6-003

$2.78

24

NUT, AXLE (16MM)

90305-KE8-003

$8.54

25

WASHER (10MM)

90465-MN1-670

$3.26

26

WASHER, PLAIN (16MM)

90559-469-000

$5.17

27

OIL SEAL (25X40X7)

91216-729-921

$7.42

27

OIL SEAL (25X40X7) This part replaces 91252-428-000.

91216-729-921

$7.42

28

NUT, HEX. (8MM)

94001-08000-0S

$1.37

29

WASHER, SPRING (8MM)

94111-08000

Unavailable

30

BEARING, RADIAL BALL (6203U)

96140-62030-10

$11.42

31

BEARING, RADIAL BALL (6204U)

96140-62040-10

$20.95
