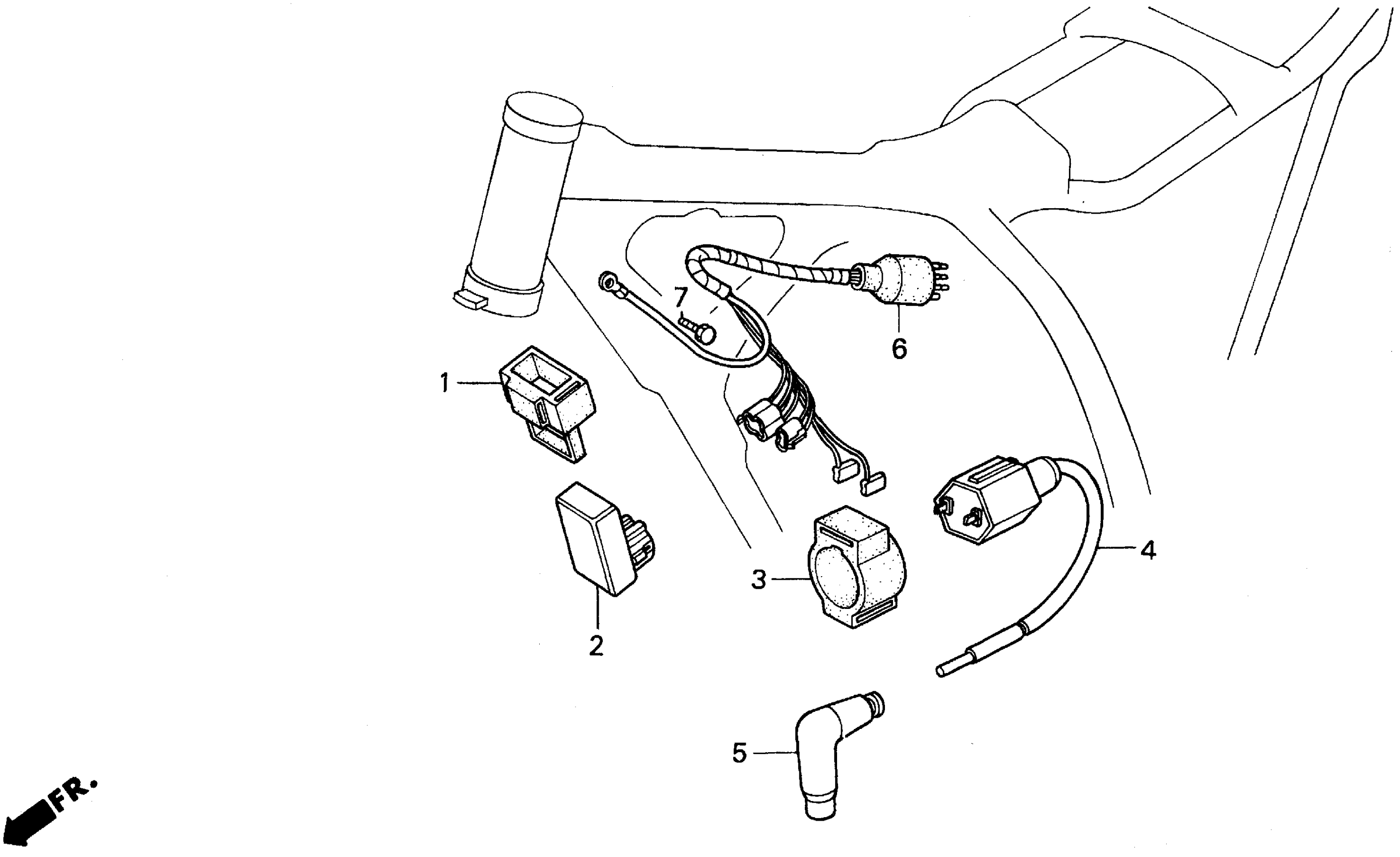

Honda XR200RA (97) MOTORCYCLE, JPN, VIN# JH2ME050-VK100001 WIRE HARNESS Diagram

#

Description

Price

1

RUBBER, IGNITION CONTROL MODULE

30401-KT0-670

Unavailable

2

MODULE, IGNITION CONTROL (CDI)

30410-KT0-670

Unavailable

3

SUSPENSION, IGNITION COIL

30506-KV3-771

$11.98

4

COIL, IGNITION

30510-KT0-405

$73.93

4

COIL, IGNITION This part replaces 30510-KT0-830.

30510-KT0-405

$73.93

5

CAP ASSY,NOISE(SU This part replaces 30700-KA2-013.

30701-MN8-003

$24.45

5

CAP ASSY,NOISE(SU This part replaces 30701-MN8-010.

30701-MN8-003

$24.45

6

WIRE HARNESS

32100-KT0-830

Unavailable

7

BOLT, HEX. (5X8)

92101-05008-0A

$1.11
