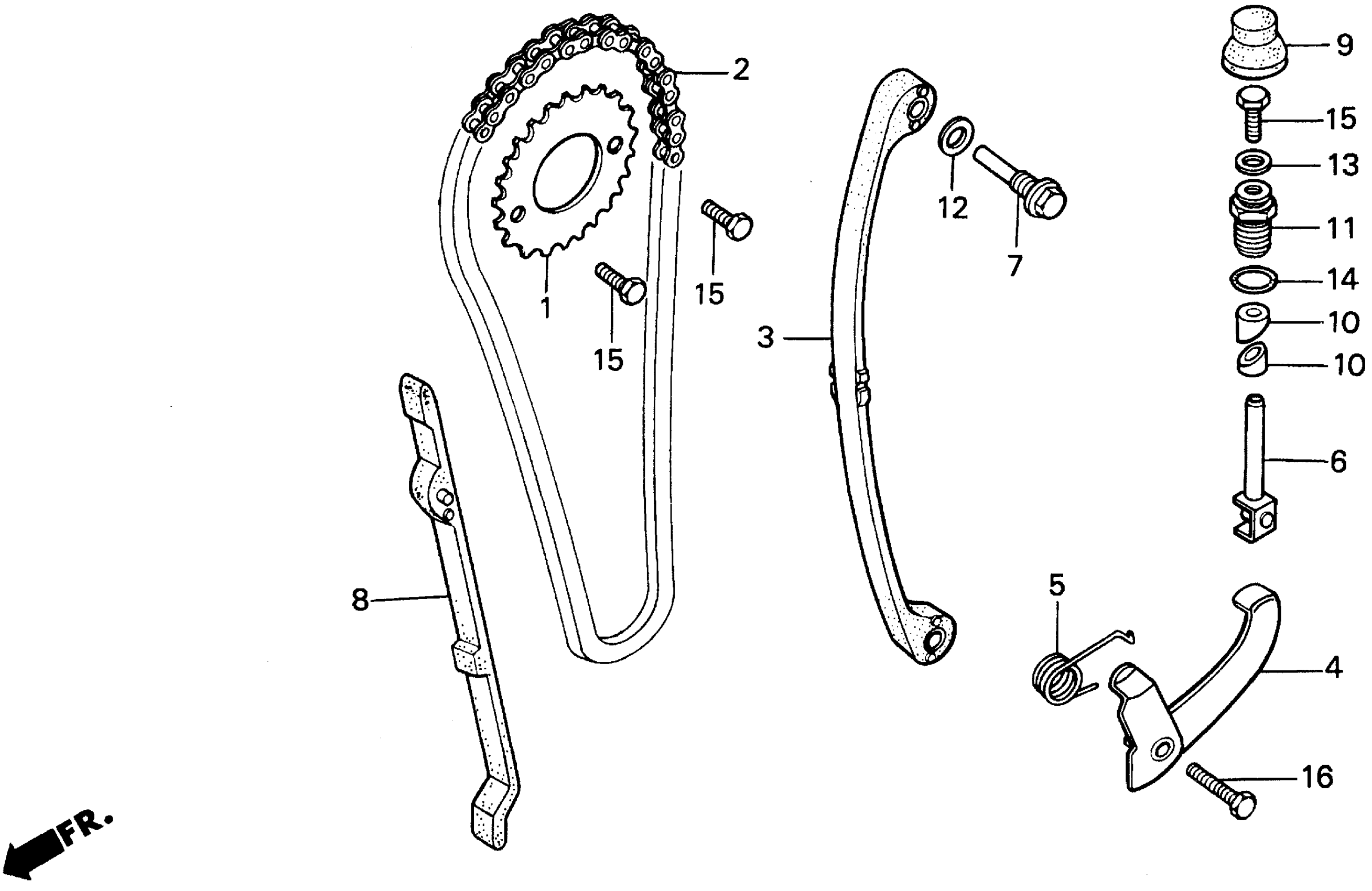

Honda XR200RA (97) MOTORCYCLE, JPN, VIN# JH2ME050-VK100001 CAM CHAIN Diagram

SPROCKET, CAM (32T)

14321-440-000

$40.01

CHAIN, CAM (100L) (DAIDO) This part replaces 14401-427-003.

14401-958-003

$75.65

CHAIN, CAM (100L) (DAIDO)

14401-958-003

$75.65

CHAIN, CAM (100L) (DAIDO) | (Optional).

14401-958-003

$75.65

TENSIONER, CAM CHAIN

14500-427-000

$69.14

ARM, CAM CHAIN TENSIONER

14510-383-000

$30.20

SPRING, CAM CHAIN TENSIONER

14515-383-000

$4.74

BAR, TENSIONER SETTING

14520-969-010

$23.42

BOLT, CAM CHAIN TENSIONER PIVOT

14535-437-000

$5.86

GUIDE, CAM CHAIN

14550-427-000

$47.52

CAP, TENSIONER ADJ.

14564-383-000

$4.13

COLLAR, SET BAR LOCKING

14626-383-000

$8.54

BOLT, SPECIAL (16MM)

90082-383-000

$24.30

WASHER C (8MM)

90475-703-000

Unavailable

WASHER A (6MM)

90478-700-000

$0.70

O-RING (13X2.5)

91335-567-000

$3.73

BOLT, HEX. (6X10)

92101-06010-0A

$1.28

BOLT, HEX. (6X18)

92101-06018-0A

$1.35
