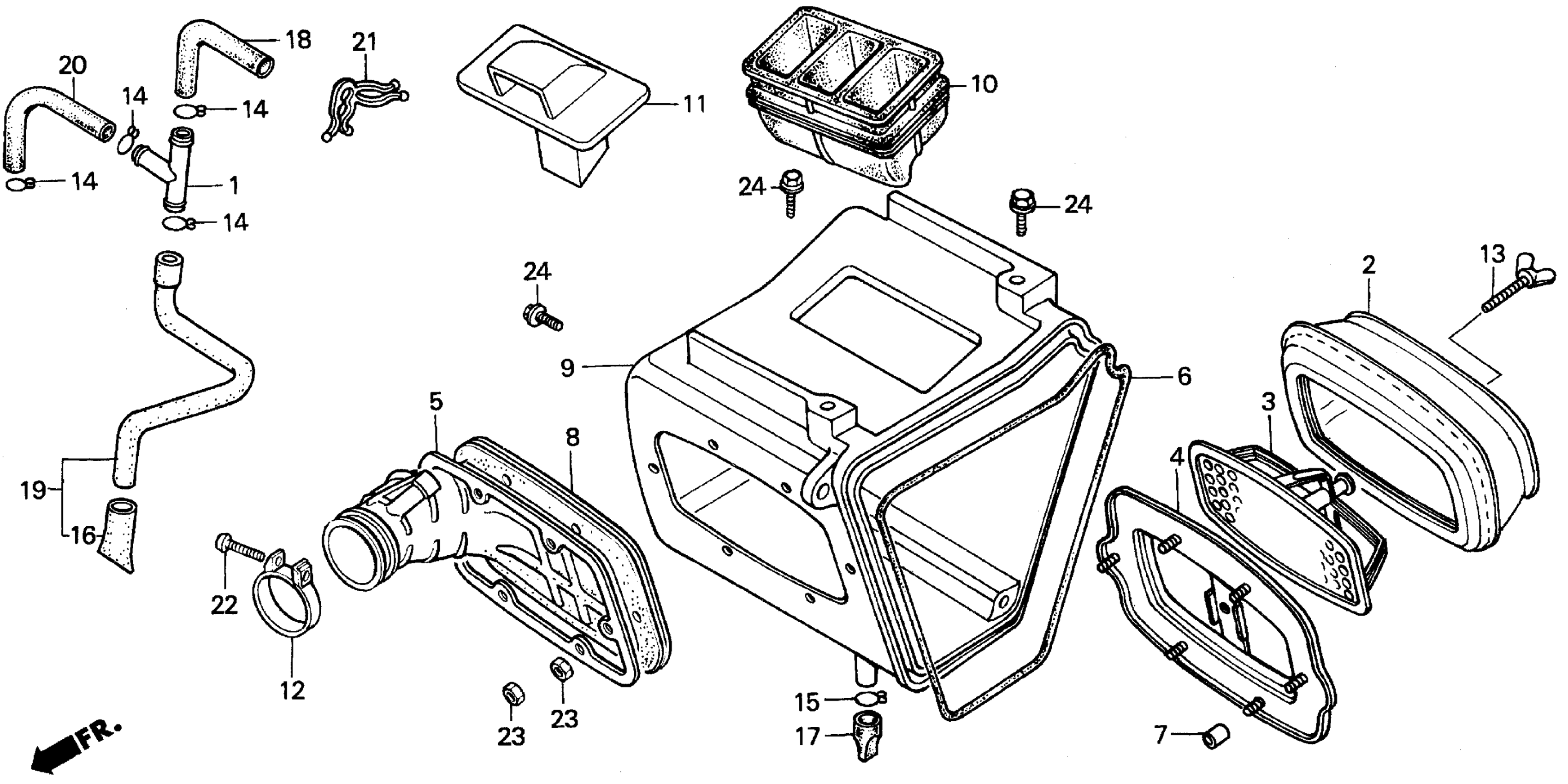

Honda XR200RA (97) MOTORCYCLE, JPN, VIN# JH2ME050-VK100001 AIR CLEANER (1) Diagram

#

Description
Price

1

JOINT, BREATHER THREE WAY

15772-HA7-670

$17.25

2

ELEMENT, AIR CLEANER

17213-KK0-000

$24.69

3

HOLDER, ELEMENT

17214-KK0-030

Unavailable

4

PLATE, ELEMENT SETTING

17216-KK0-000

Unavailable

5

PLATE, HOLDER

17217-KK0-000

$22.49

6

SEAL, AIR CLEANER COVER This part replaces 17219-KK0-000.

17222-MN4-405

$7.49

6

SEAL, AIR CLEANER COVER

17222-MN4-405

$7.49

7

COLLAR, CONNECTING TUBE SETTING

17221-KA4-300

$2.34

8

TUBE, AIR CLEANER CONNECTING

17222-KT0-670

Unavailable

9

HOUSING, AIR CLEANER

17230-KK0-000

Unavailable

10

DUCT, AIR CLEANER IN.

17240-KK0-000

Unavailable

11

CAP, IN. DUCT

17241-KT0-770

Unavailable

12

BAND, AIR CLEANER CONNECTING TUBE (46) This part replaces 17255-KF9-900.

95018-46250

$7.60

12

BAND, AIR CLEANER CONNECTING TUBE (46) This part replaces 90652-GHB-660.

95018-46250

$7.60

12

BAND, AIR CLEANER CONNECTING TUBE (46)

95018-46250

$7.60

13

BOLT, ELEMENT SETTING

17291-KT0-674

Unavailable

14

CLIP A, BREATHER TUBE

17316-MN1-670

$2.35

15

CLIP, BREATHER TUBE

17316-611-000

$8.85

16

TUBE, DRAIN

17358-170-000

$3.73

17

TUBE, DRAIN

17359-KK0-000

$7.05

18

TUBE A, BREATHER

17373-KK0-000

Unavailable

19

TUBE B, BREATHER

17374-KT0-830

Unavailable

20

TUBE, BREATHER (NOT AVAILABLE)

17561-KA2-000

Unavailable

21

CLIP, THROTTLE WIRE (NOT AVAILABLE)

90655-689-671

Unavailable

22

SCREW, PAN (4X25)

93500-04025-0G

Unavailable

23

NUT, HEX. (5MM)

94002-05070-0S

$0.58

24

BOLT, FLANGE (6X10) This part replaces 96500-06010-00.

96300-06010-00

$0.91

24

BOLT, FLANGE (6X10)

96300-06010-00

$0.91
