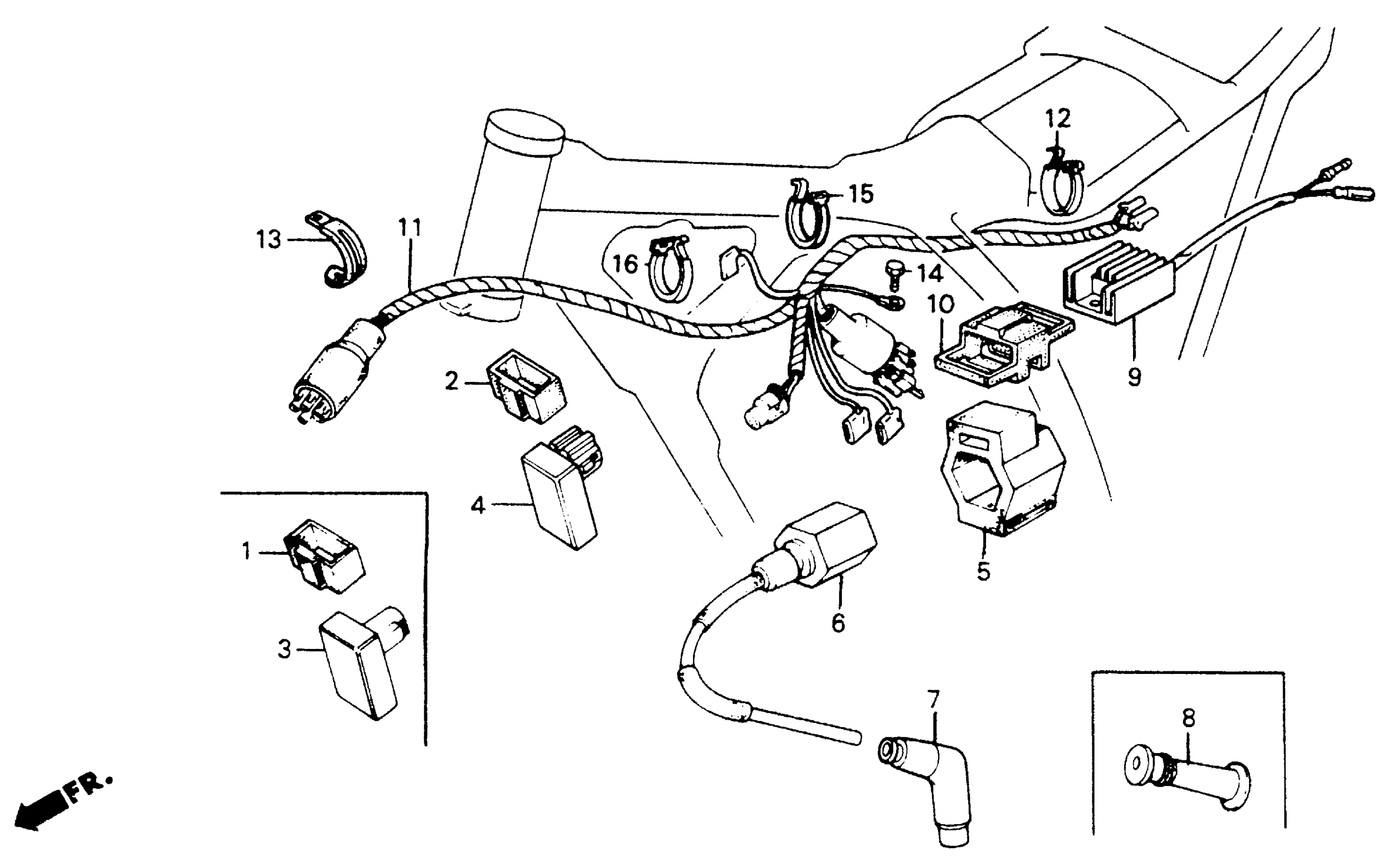

Honda XR200RA (86) MOTORCYCLE, JPN, VIN# JH2ME050-GK200001 TO JH2ME050-GK204506 WIRE HARNESS Diagram

#

Description

Price

2

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-961-000

$6.20

4

MODULE, IGNITION CONTROL (CDI)

30410-KT0-670

Unavailable

5

SUSPENSION, IGNITION COIL

30506-KT0-671

Unavailable

6

COIL, IGNITION This part replaces 30510-KT0-671.

30510-KT0-405

$73.93

6

COIL, IGNITION

30510-KT0-405

$73.93

7

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-KA2-003.

30700-MA0-163

$22.48

7

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-MA0-153.

30700-MA0-163

$22.48

7

CAP ASSY., NOISE SUPPRESSOR

30700-MA0-163

$22.48

7

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-MC4-153.

30700-MA0-163

$22.48

9

REGULATOR, A.C. (NOT AVAILABLE)

31400-KR6-000

Unavailable

10

RUBBER, A.C. REGULATOR

31401-KT0-670

Unavailable

11

WIRE HARNESS (NOT AVAILABLE)

32100-KT0-670

Unavailable
