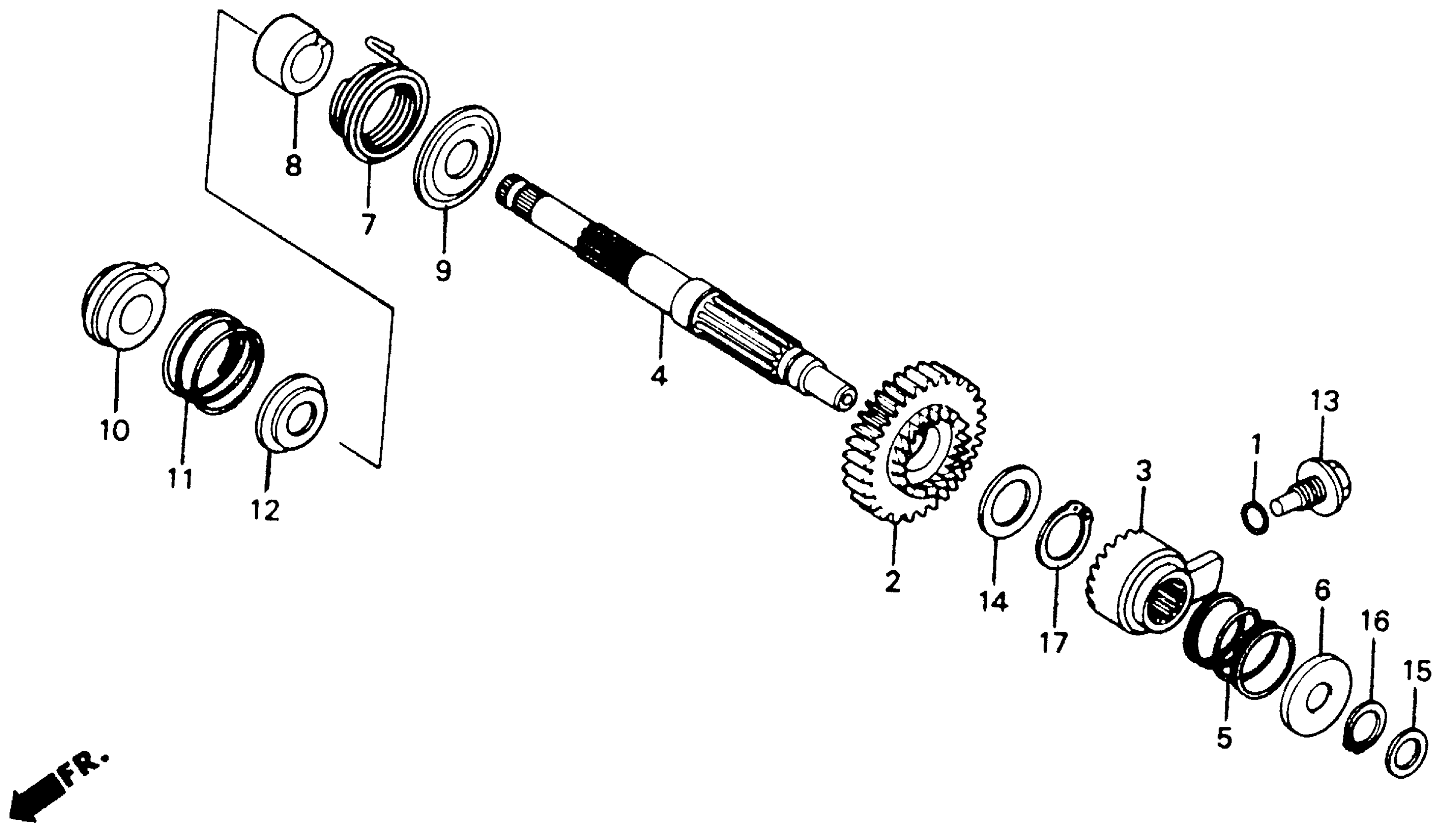

Honda XR200RA (86) MOTORCYCLE, JPN, VIN# JH2ME050-GK200001 TO JH2ME050-GK204506 KICK START SPINDLE 86-93 Diagram

#

Description
Price

1

O-RING (11.8X2.4) This part replaces 16997-357-003.

91302-ZE9-003

$2.48

1

O-RING (11.8X2.4) This part replaces 91302-ZE9-000.

91302-ZE9-003

$2.48

1

O-RING (11.8X2.4)

91302-ZE9-003

$2.48

1

O-RING (11.8X2.4) This part replaces 91320-HA5-000.

91302-ZE9-003

$2.48

1

O-RING (11.8X2.4) This part replaces 91320-HA5-003.

91302-ZE9-003

$2.48

2

PINION, KICK STARTER (30T)

28211-437-000

Unavailable

3

RATCHET, KICK STARTER

28221-437-000

$62.54

4

SPINDLE, KICK STARTER

28251-KT0-000

Unavailable

5

SPRING, KICK STARTER RATCHET

28253-KA2-000

$5.34

6

SEAT, RATCHET SPRING

28254-437-000

Unavailable

7

SPRING, KICK STARTER

28261-437-000

$10.24

8

COLLAR, KICK SPINDLE

28262-437-000

$13.69

9

RETAINER, STARTER SPRING

28263-437-000

Unavailable

10

CAM, KICK SHAFT

28272-427-000

Unavailable

11

SPRING, CAM RESET

28283-428-000

Unavailable

12

SEAT, CAM RESET SPRING

28284-KG1-000

Unavailable

13

BOLT, KICK RATCHET

90004-437-000

$8.69

14

WASHER A, THRUST (20MM)

90453-107-000

$2.17

15

WASHER, THRUST (12MM)

90459-107-000

$1.38

16

CIRCLIP, OUTER (16MM)

94510-16000

$0.97

17

CIRCLIP, OUTER (20MM)

94510-20000

$1.37
