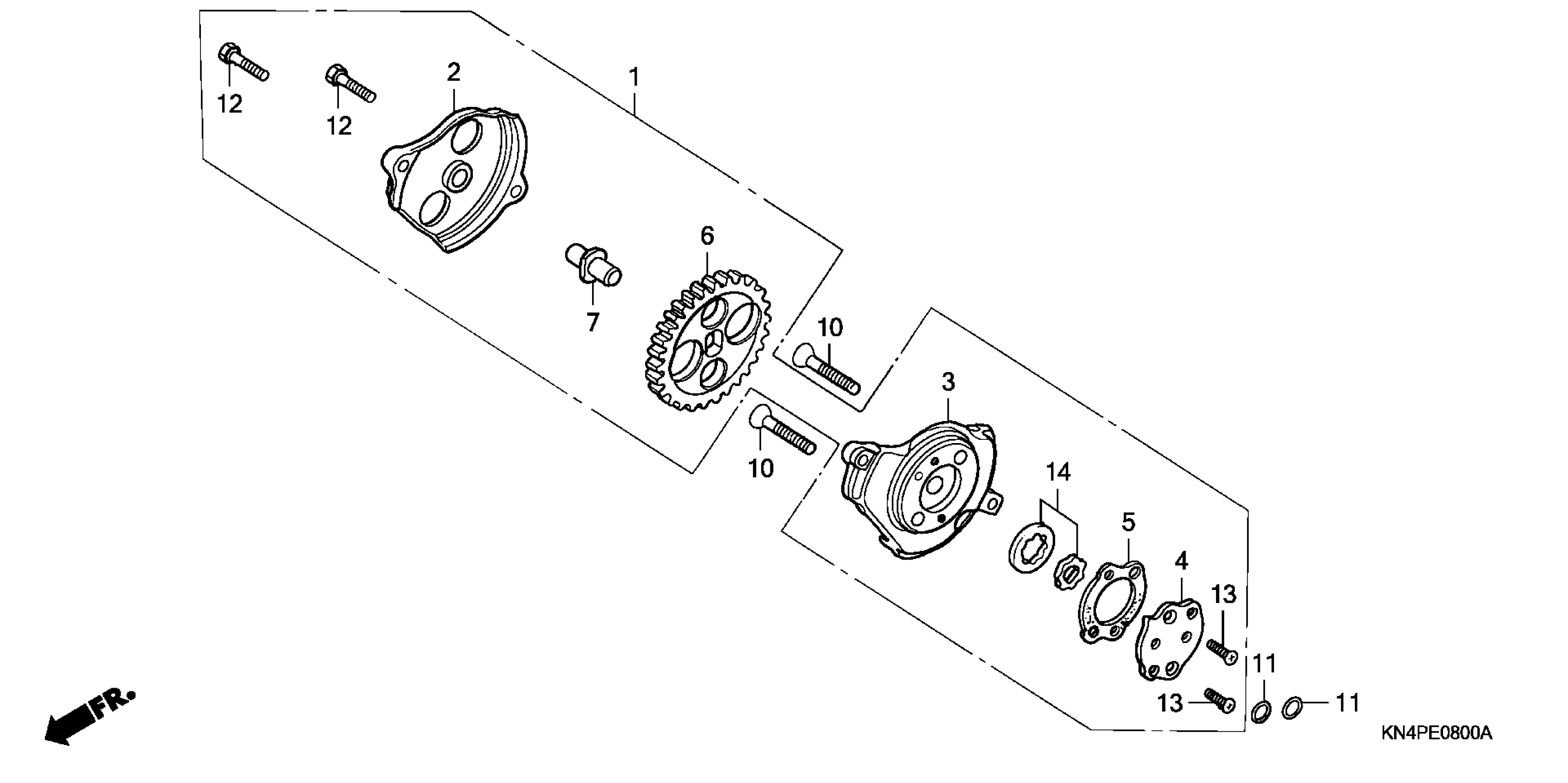

Honda XR100RA (94) MOTORCYCLE, JPN, VIN# JH2HE030-RK300001 TO JH2HE030-RK307531 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL

15100-436-000

$191.04

2

COVER, OIL PUMP GEAR

15106-153-000

Unavailable

3

BODY, OIL PUMP

15111-436-000

Unavailable

4

PLATE, OIL PUMP (USE ONLY WITH ORIGINAL OIL PUMP ASSY. P/N 15100-437-672.)

15116-107-020

Unavailable

5

GASKET, OIL PUMP (USE ONLY WITH ORIGINAL OIL PUMP ASSY. P/N 15100-437-672.)

15126-107-020

$1.55

6

GEAR, OIL PUMP DRIVE (35T)

15131-149-000

Unavailable

7

SHAFT, OIL PUMP

15136-436-000

Unavailable

8

ROTOR, OIL PUMP (INNER) (NOT AVAILABLE)

15331-436-000

Unavailable

9

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE)

15332-436-000

Unavailable

10

SCREW, FLAT (6X30)

90101-440-000

$2.29

11

O-RING (9.4X2.4) | Use up to Engine SN 6109068. This part replaces 91304-107-000.

91304-KK3-830

$2.20

11

O-RING (9.4X2.4)

91304-KK3-830

$2.20

12

BOLT, HEX. (5X18)

92101-05018-0H

$1.00

13

SCREW, FLAT (4X12)

93600-04012-0A

$0.83

14

ROTOR SET, OIL PUMP

15021-436-000

$31.04
