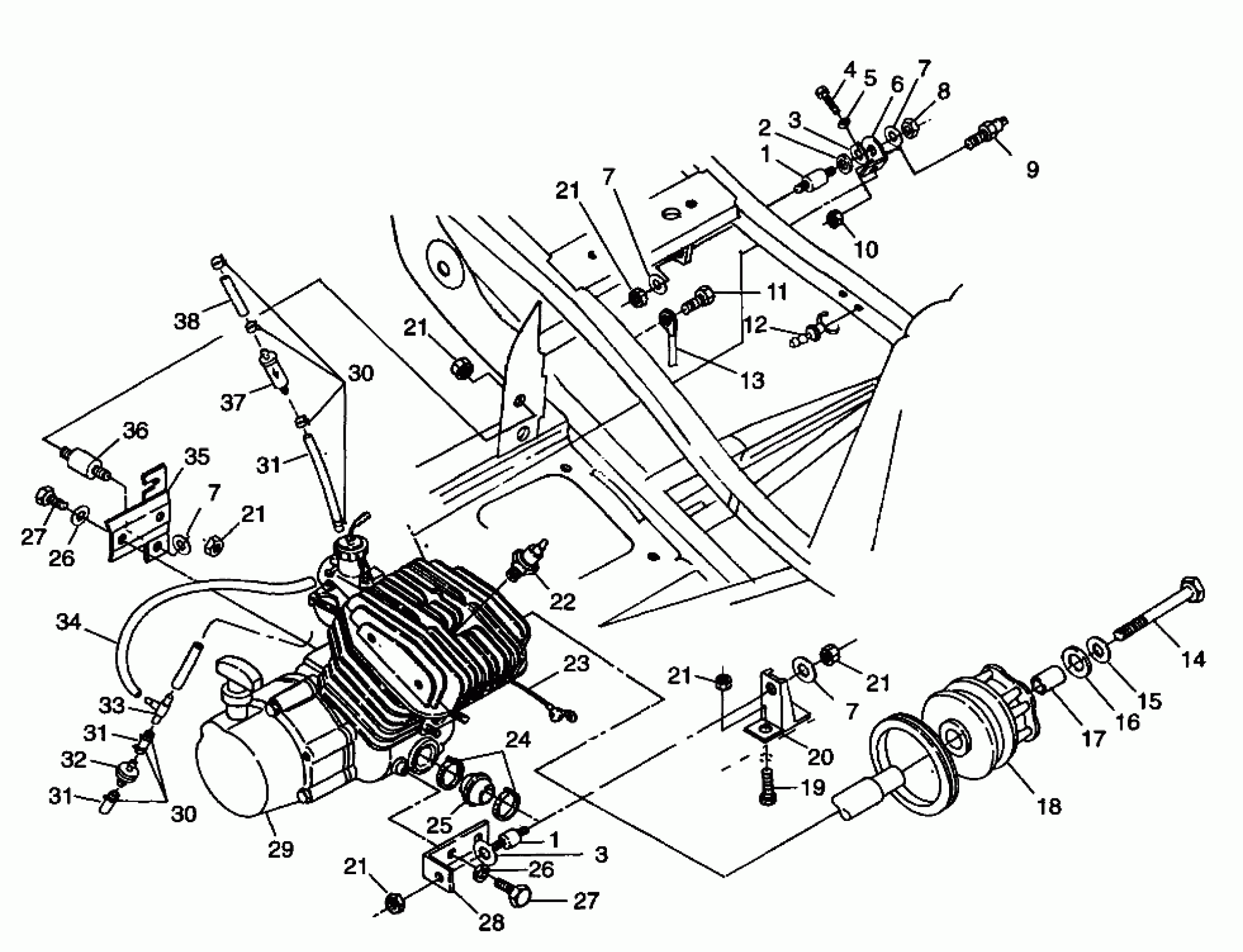

Polaris XPRESS 300 - W98CA28C ENGINE MOUNTING - W98CA28C (4945364536a010) Diagram

#

Description
Price

1

MOUNT,MOTOR

3110026

$40.46

1

MOUNT,MOTOR

3110026

$40.46

2

INSULATOR,MOTOR MT.

5430802

$28.32

3

WASHER(10)

7555823

Unavailable

3

WASHER(10)

7555823

Unavailable

4

BOLT(10)

7515321

Unavailable

5

LOCK WASHER(10)

7552901

$1.19

6

MOUNT,ENG,TOP

5241799-067

Unavailable

7

WASHER(10)

7555806

$0.79

7

WASHER(10)

7555806

$0.79

7

WASHER(10)

7555806

$0.79

7

WASHER(10)

7555806

$0.79

8

NUT LOCK(10)

7542411

$3.17

9

THERMOSTAT,COOL.FAN Substituted by 4010211

4110114

Unavailable

10

NUT FLEX LOC(10)

7541906

$3.17

11

BOLT(10)

7512232

$1.19

12

FITTING,VENT,1/8"

7052192

Unavailable

13

CABLE,GND-ENGINE

4010132

Unavailable

14

BOLT(10)

7512566

$33.24

15

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

16

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

17

BUSHING-.437 X.770 X.50

5430261

$7.14

18

Asm., Drive Clutch, ATV-06 (See Pg. B13, Ref. 14)

----

Unavailable

19

BOLT(10)

7512457

$3.97

20

MOUNT,ENG,LOW,BLK

1040532-067

Unavailable

21

NUT LOCK(10)

7542403

Unavailable

21

NUT LOCK(10)

7542403

Unavailable

21

NUT LOCK(10)

7542403

Unavailable

21

NUT LOCK(10)

7542403

Unavailable

21

NUT LOCK(10)

7542403

Unavailable

21

NUT LOCK(10)

7542403

Unavailable

22

SPARKPLUG (10)

3070156

$3.97

23

Cable, Solenoid Starter (See Pg. C5, Ref. 24)

----

Unavailable

24

CLAMP, NARROW BAND(10)

7080511

$4.76

25

BOOT,CLUTCH INTAKE

5410421

$11.32

26

WASHER(10)

7552603

$0.79

26

WASHER(10)

7552603

$0.79

27

SCREW(10)

7512490

$3.97

27

SCREW(10)

7512490

$3.97

28

MT,FR.ENGINE,300,BLK.

5242229-067

Unavailable

29

ENG.(S.B.)EC28PF-SB Substituted by 1211654

3084720

Unavailable

30

HOSE CLAMP, RED

7080003

$1.19

30

HOSE CLAMP, RED

7080003

$1.19

31

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

31

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

31

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

32

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

33

Fitting, Tee

7052005

Unavailable

34

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

35

MT,REAR,(300),BLK.

5241176-067

Unavailable

36

MOUNT, MOTOR

3110028

Unavailable

37

FILTER,SMALL,IN-LINE,(10)

2530009

$6.46

38

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable
