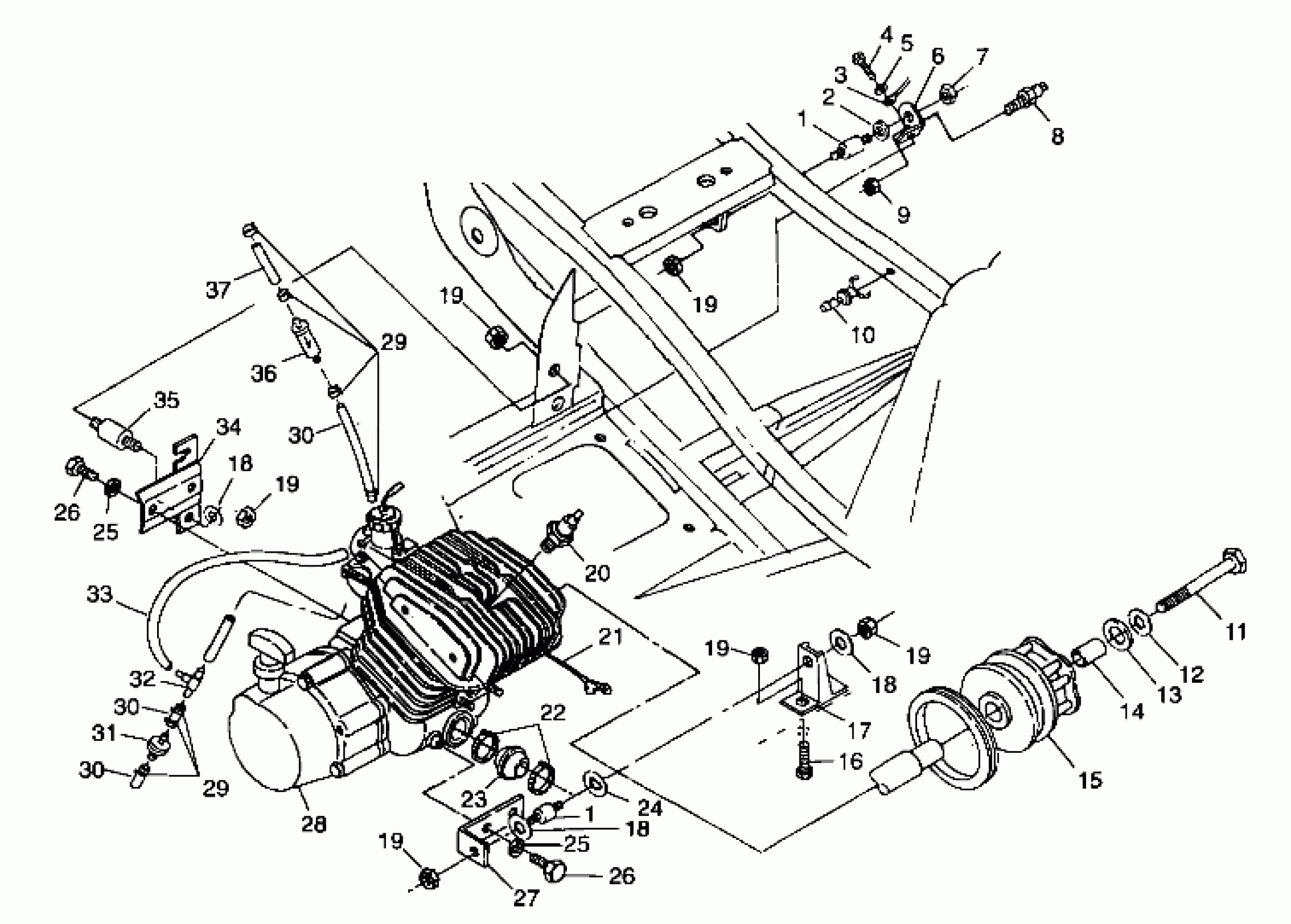

Polaris XPLORER 300 - A99CC28CA ENGINE MOUNTING - A99CC28CA (4949484948a011) Diagram

#

Description
Price

1

MOUNT,MOTOR

3110026

$40.46

1

MOUNT,MOTOR

3110026

$40.46

2

INSULATOR,MOTOR MT.

5430802

$28.32

3

CABLE,GND-ENGINE

4010132

Unavailable

4

BOLT(10)

7515321

Unavailable

5

LOCK WASHER(10)

7552901

$1.19

6

MOUNT,ENG,TOP

5241799-067

Unavailable

7

NUT LOCK(10)

7542411

$3.17

8

THERMOSTAT-COOLING FAN

4010211

Unavailable

9

NUT FLEX LOC(10)

7541906

$3.17

10

FITTING,VENT,1/8"

7052192

Unavailable

11

BOLT(10)

7512566

$33.24

12

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

13

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

14

BUSHING-.437 X.770 X.50

5430261

$7.14

15

Asm., Drive Clutch, ATV-06 (See Footnote) (See Drive Clutch Pg. C3, Ref. 14)

----

Unavailable

16

BOLT(10)

7512457

$3.97

17

MOUNT,ENG,LOW,BLK

1040532-067

Unavailable

18

WASHER(10)

7555806

$0.79

18

WASHER(10)

7555806

$0.79

18

WASHER(10)

7555806

$0.79

19

NUT LOCK(10)

7542403

Unavailable

19

NUT LOCK(10)

7542403

Unavailable

19

NUT LOCK(10)

7542403

Unavailable

19

NUT LOCK(10)

7542403

Unavailable

19

NUT LOCK(10)

7542403

Unavailable

19

NUT LOCK(10)

7542403

Unavailable

20

SPARKPLUG (10)

3070156

$3.97

21

Cable, Solenoid Starter (See Footnote) (See Electrical/Taillight Pg. C9, Ref. 22)

----

Unavailable

22

CLAMP, NARROW BAND(10)

7080511

$4.76

23

BOOT,CLUTCH INTAKE

5410421

$11.32

24

WASHER(10)

7555823

Unavailable

25

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

$0.79

25

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

$0.79

26

SCREW(10)

7512490

$3.97

26

SCREW(10)

7512490

$3.97

27

MT,FR.ENGINE,300,BLK.

5242229-067

Unavailable

28

ENG.(S.B.)EC28PF-SB Substituted by 1211654 (See Footnote) NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior au

3084720

Unavailable

29

HOSE CLAMP, RED

7080003

$1.19

29

HOSE CLAMP, RED

7080003

$1.19

30

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

30

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

30

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

31

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

32

Fitting, Tee

7052005

Unavailable

33

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

34

MT,REAR,(300),BLK.

5241176-067

Unavailable

35

MOUNT, MOTOR

3110028

Unavailable

36

FILTER,SMALL,IN-LINE,(10)

2530009

$6.46

37

Hose, Fuel (See Footnote) (See Fuel Tank Pg. A14, Ref. 15)

----

Unavailable
