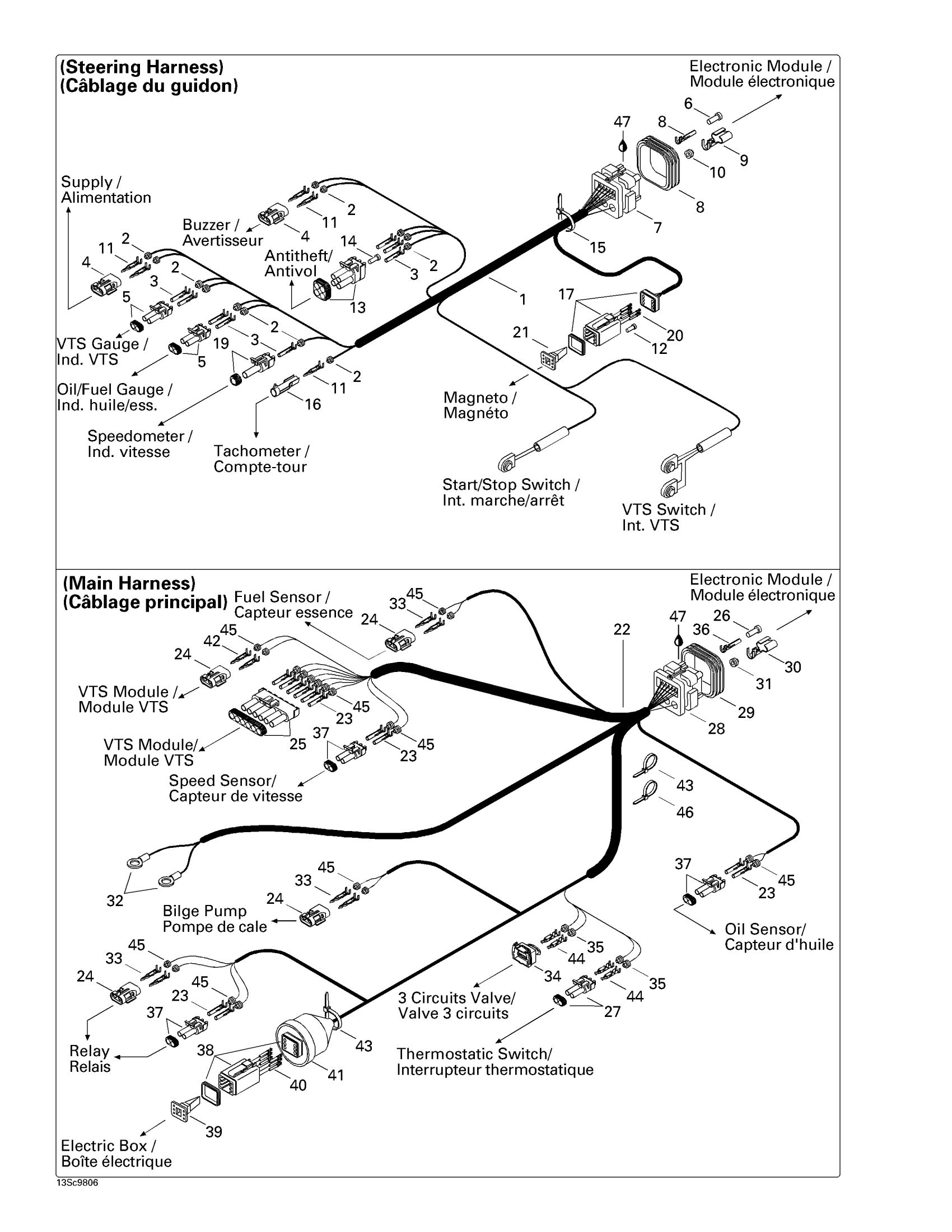

Sea-doo XP Limited, 5665/5667, 1998 Electrical Harness Diagram

#

Description
Price

1

Steering Harness | Includes 1 - 21.

278001227

Unavailable

2

Wire Seal

278000218

Unavailable

3

Female Terminal

278000223

Unavailable

4

Female Housing, 2 Circuits

278000217

Unavailable

5

Male Connector, 2 Circuits

278000220

$11.02

6

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

7

Male Terminal Housing, 26 Circuits

278001062

Unavailable

8

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

9

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

10

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

11

Male Terminal | XT Models

278000222

$2.55

12

Sealing Cap

293000052

Unavailable

13

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

14

Wire Seal

278000216

Unavailable

15

Tie Wrap 142 mm

293750002

Unavailable

16

Female Housing, 1 Circuit

278000161

Unavailable

17

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

Unavailable

18

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

19

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

20

Female Terminal

278000632

Unavailable

21

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

22

Main Harness | Includes 22 - 46.

278001228

Unavailable

23

Female Terminal

278000223

Unavailable

24

Female Housing, 2 Circuits

278000217

Unavailable

25

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

26

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

27

Male Housing, 2 Circuits

278001005

$15.57

28

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

Unavailable

29

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

30

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

31

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

32

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

33

Male Terminal | XT Models

278000222

$2.55

34

Male Connector, 2 Circuits

278001003

Unavailable

35

Wire Seal

278000999

$2.55

36

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

37

Male Connector, 2 Circuits

278000220

$11.02

38

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

Unavailable

39

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

40

Female Terminal

278000632

Unavailable

41

Switch Boot

570150700

Unavailable

42

Male Terminal

409004300

$5.46

43

Tie Wrap 142 mm

293750002

Unavailable

44

Female Terminal

278000998

$3.48

45

Wire Seal

278000218

Unavailable

46

Tie Wrap 94 mm | 4X4

293750001

$0.83

47

Lube - Deoxit, 250 ml

293800051

Unavailable
