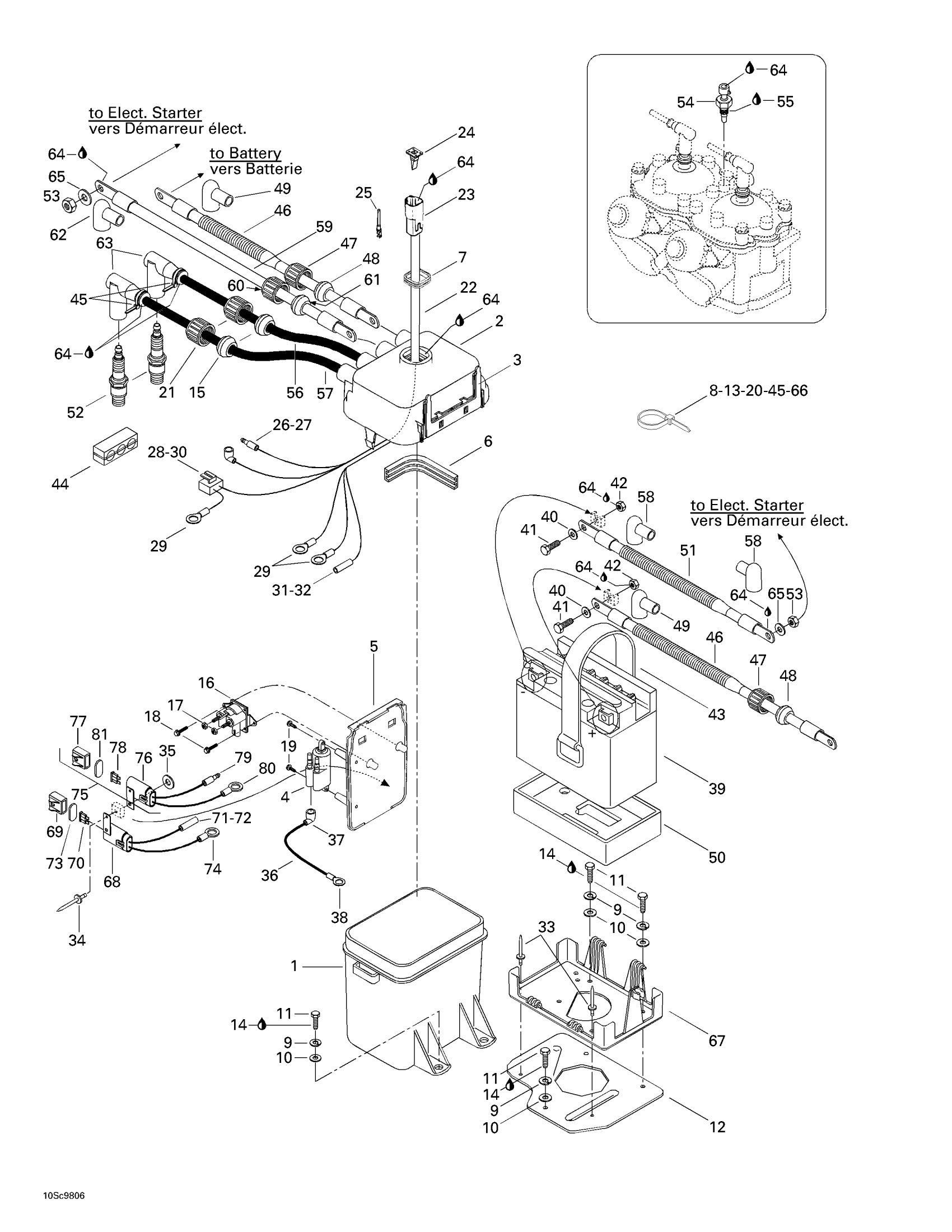

Sea-doo XP Limited, 5665/5667, 1998 Electrical Box Diagram

#

Description
Price

1

High Voltage Box Base

278001089

Unavailable

2

Cover

278001265

Unavailable

3

Ground Plate

278000732

Unavailable

4

IGNITION COIL - Call your local BRP dealership

278001254

Unavailable

5

Mounting Plate

278000826

Unavailable

6

GASKET - Call your local BRP dealership

278000440

Unavailable

7

Gasket

293200030

Unavailable

8

Tie Wrap 142 mm

293750002

Unavailable

9

Helical Lock Washer M5

234151601

Unavailable

10

Flat Washer 5 mm, Stainless

234052600

Unavailable

11

Hex. Screw 10-14 X 7/8”

211000023

Unavailable

12

Plate Support

292000503

Unavailable

13

Tie-Rap 180 mm

414115200

$0.09

14

Loctite 271, 10 ml

293800005

Unavailable

15

Grommet

278000682

Unavailable

16

Starter Relay

278003012

Unavailable

17

Hex. Elastic Stop Nut M6

232561600

$0.92

18

Hex. Flange Screw M6 X 10

210261040

Unavailable

19

Self Tapping Screw M6.3 x 25

215462550

Unavailable

20

Tie Wrap 94 mm | 4X4

293750001

$0.83

21

Electric Wire Cap

278000100

Unavailable

22

Electric Box Harness | Includes 22 - 32.

278001303

Unavailable

23

Male Terminal Housing, 6 Circuits

710001539

$15.57

24

Female Lock, 6 Circuits

278000735

$3.02

25

Male Terminal

278000631

$4.12

26

Male Terminal

278000230

Unavailable

27

Insulation Sheath

278000231

Unavailable

28

Female Terminal

278001114

$2.55

29

Ring Terminal

278000300

Unavailable

30

Male Connector, 2 Circuits

278001113

$12.65

31

Female Terminal | DS 650 X

278001009

Unavailable

32

Insulated Sheath

278001007

Unavailable

33

Avdel Rivet 3/16"

293150037

$0.47

34

Pop Rivet 3/16"

293150005

Unavailable

35

Flat Washer, Emhart

213200016

Unavailable

36

Ground Harness | Includes 82 - 84.

278000664

Unavailable

37

FEMALE TERMINAL - Call your local BRP dealership

278000228

Unavailable

38

Ring Terminal

278000300

Unavailable

39

Battery 19A | Includes 5 to 8

278001756

Unavailable

40

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

41

Hex. Screw M6 X 16

207161644

Unavailable

42

Hex. Nut M6

232061414

$0.44

43

Retainer Strap

293850097

Unavailable

44

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

45

Tie Wrap 142 mm

293750002

Unavailable

46

Battery Positive Cable, Red | Includes 40,41,68,72,73

278001281

Unavailable

47

Electric Wire Cap

278000100

Unavailable

48

GROMMET - Call your local BRP dealership

278000098

Unavailable

49

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

50

Battery Lower Pad

278001234

Unavailable

51

Battery Ground Cable

278001282

Unavailable

52

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

Unavailable

53

Hex. Elastic Stop Nut M6

232561600

$0.92

54

Temperature Sensor

278002895

$31.82

55

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

56

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

57

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

58

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

59

Starter Positive Cable, Red | Includes 34,35,75,89,90

278001091

Unavailable

60

Electric Wire Cap

278000100

Unavailable

61

GROMMET - Call your local BRP dealership

278000098

Unavailable

62

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

63

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

64

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

65

Stainless Flat Washer M6

234061600

$0.25

66

Tie Wrap 368 mm

293750008

$0.85

67

Battery Support

278001233

Unavailable

68

Fuse Harness 15 Amp | Includes 28 - 34.

278000665

Unavailable

69

Fuse Holder Cap

278001326

$6.03

70

Fuse, 15 Amperes

278000343

$2.72

71

Female Terminal | DS 650 X

278001009

Unavailable

72

Insulated Sheath

278001007

Unavailable

73

Cushion

278000805

$3.22

74

Ring Terminal

278000300

Unavailable

75

Fuse Harness 3 Amp | Includes 75 - 81.

278001304

Unavailable

76

Fuse Holder

278001325

$8.57

77

Fuse Holder Cap

278001326

$6.03

78

3 Amp. Fuse

278119600

Unavailable

79

Male Terminal

278000230

Unavailable

80

Ring Terminal

278000300

Unavailable

81

Cushion

278000805

$3.22
