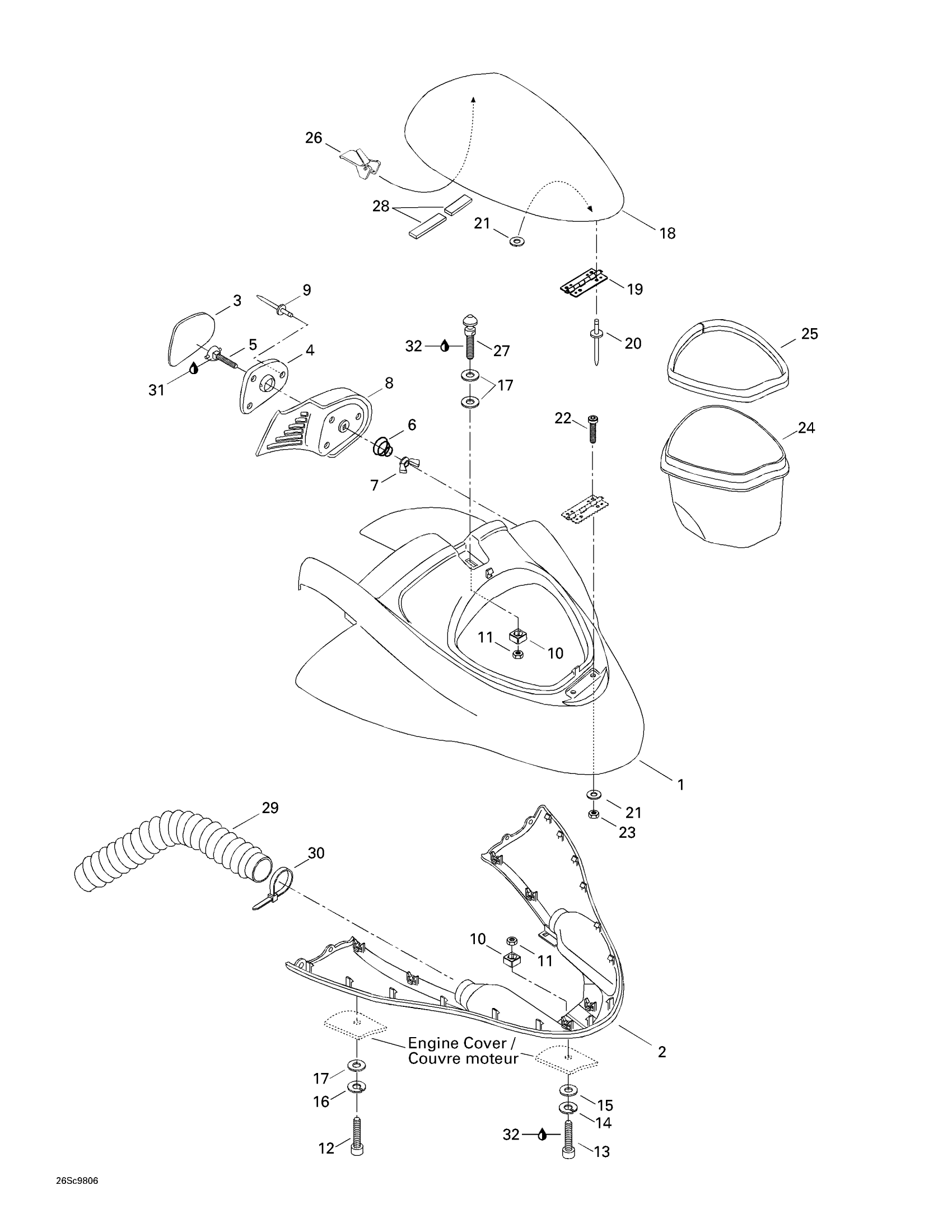

Sea-doo XP Limited, 5665/5667, 1998 Storage Cover Diagram

#

Description
Price

1

Upper Storage Cover

269500328

Unavailable

2

Lower Storage Cover

269500527

Unavailable

3

RH Mirror

269500329

Unavailable

LH Mirror

269500330

Unavailable

4

RH Support

269500332

Unavailable

LH Support

269500331

Unavailable

5

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

6

Mirror Spring

269500082

Unavailable

7

WING NUT M6 - Call your local BRP dealership

232661600

Unavailable

8

RH Mirror Housing

269500333

Unavailable

LH Mirror Housing

269500334

Unavailable

9

Pop Rivet 3/16"

293150005

Unavailable

10

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

Unavailable

11

Hex. Elastic Stop Nut M6

232561600

$0.92

12

Socket Head Screw M6 X 25

205062560

$1.42

13

Allen Screw M8 x 20

215982060

Unavailable

14

Lock Washer 8 mm, Stainless

234181601

Unavailable

15

Flat Washer 8 mm, Stainless

234082600

Unavailable

16

Lock Washer Helical M6

234161601

Unavailable

17

Flat Washer M6, Stainless

234062600

Unavailable

18

Access Cover | Includes 18 - 19.

269500528

Unavailable

19

HINGE - Call your local BRP dealership

269500338

Unavailable

20

Pop Rivet 3/16"

204000081

Unavailable

21

Flat Washer 5 mm, Stainless

234052600

Unavailable

22

Socket Head Screw M5 X 16

205451660

Unavailable

23

Hex. Elastic Nut M5 | X

232551600

Unavailable

24

GLOVES BOX - Call your local BRP dealership

269500339

Unavailable

25

Neoprene Seal 3000Mm Long

219704371

Unavailable

26

Latch

269501487

Unavailable

27

ANCHORING STUD - Call your local BRP dealership

291001242

Unavailable

28

Neoprene Seal (1PAC=3M)

219704364

$22.72

29

Vent Tube

269500473

Unavailable

30

Tie Rap 371 mm

293750018

$0.46

31

Synthetic Grease, 400 G

293550010

Unavailable

32

Loctite 243, 10 ml

293800060

$20.77
