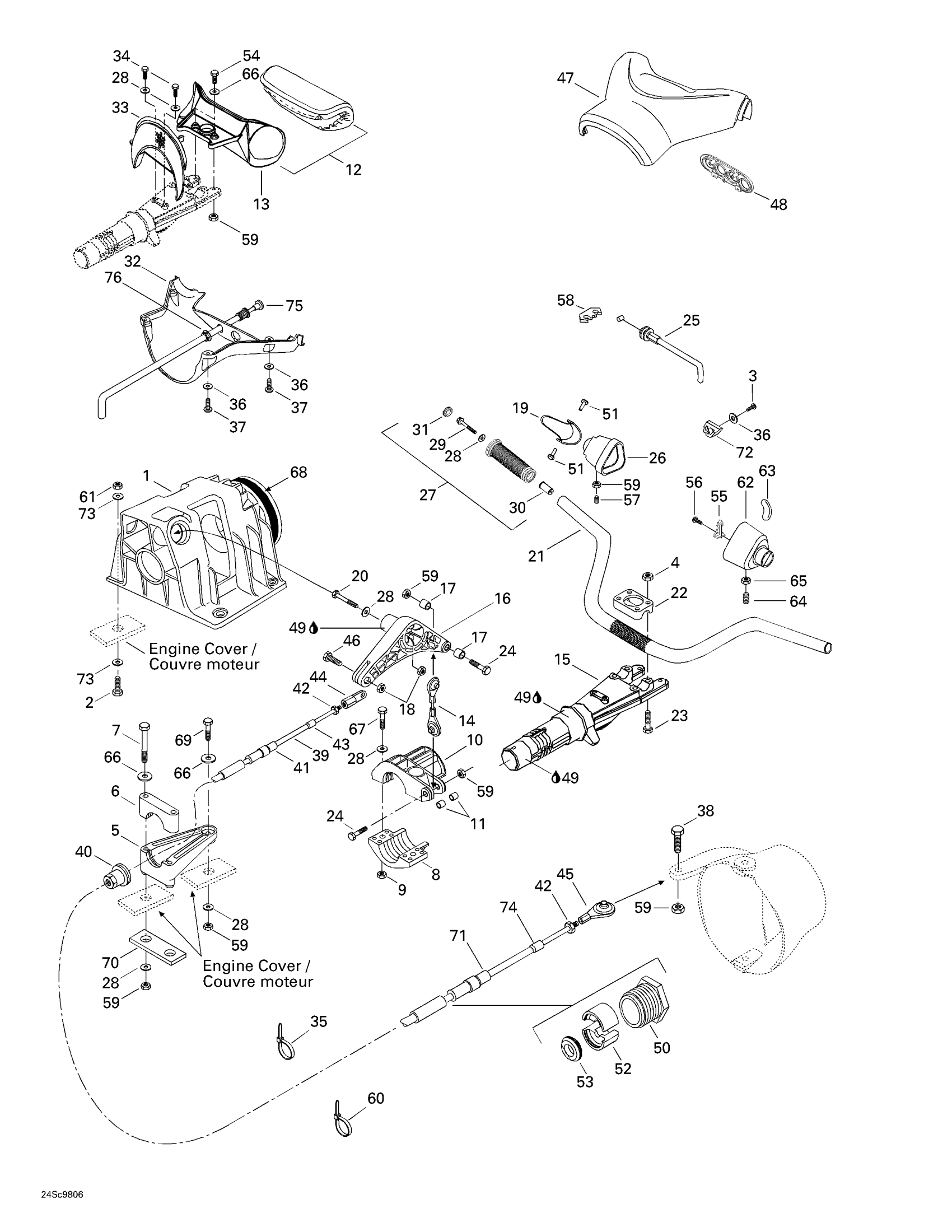

Sea-doo XP Limited, 5665/5667, 1998 Steering System Diagram

#

Description
Price

1

STEERING SUPPORT - Call your local BRP dealership

277000617

Unavailable

2

Hex. Screw M8 X 35

207083560

Unavailable

3

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

4

Hex. Elastic Nut M8

232581600

Unavailable

5

Cable Support

277000737

Unavailable

6

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

7

Hex. Screw M6 X 70

207067060

Unavailable

8

Arm Thrust | Includes 43 to 44

277000519

Unavailable

9

Hex. Elastic Stop Nut M6

232561600

$0.92

10

Steering Arm Stem | Includes 42 to 43

277000620

Unavailable

11

SPACER - Call your local BRP dealership

291000176

Unavailable

12

Handle Bar Pad | Includes 12 - 13.

277000627

Unavailable

13

Handle Bar Pad Support

277000687

Unavailable

14

Ball Joint

277000369

Unavailable

15

Steering Stem

277000562400

Unavailable

16

L-LEVER - Call your local BRP dealership | Includes 62 to 64

277000772

$19.20

17

SPACER - Call your local BRP dealership

291000176

Unavailable

18

Hex. Elastic Stop Nut M6

232561600

$0.92

19

Throttle Handle

277000214

Unavailable

20

Hex. Forming Screw M6 X 20

207162060

Unavailable

21

Handle bar

277000305

Unavailable

22

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

23

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

24

Hex. Screw M6 X 40

207064060

Unavailable

25

Throttle Cable

277000755

Unavailable

26

Throttle Handle Housing

277000285

Unavailable

27

Handle Grip Kit (Black) This part replaces 295500112.

295500110

Unavailable

28

Flat Washer M6, Stainless

234062600

Unavailable

29

PLASTITE SCREW HEX. M6.81 X 45 - Call your local BRP dealership | (7448 Up to S/N v000708)

243164560

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Black, Cap

277000203

Unavailable

32

LOWER STEERING COVER - Call your local BRP dealership

277000625

$83.82

33

PLATE - Call your local BRP dealership

277000549

Unavailable

34

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

35

Tie Wrap 142 mm

293750002

Unavailable

36

Flat Washer M5, Stainless

234051600

$0.64

37

Hex. Flange Screw K40 X 16

241141660

Unavailable

38

Hex. Screw M6 X 35

207063560

Unavailable

39

Steering Cable | Includes 39 - 43.

277000773

Unavailable

40

Ajustment Knob

277000782

Unavailable

41

LARGE BOOT - Call your local BRP dealership

277000776

Unavailable

42

Hex. Nut 1/4"-28

211100056

Unavailable

43

SMALL BOOT - Call your local BRP dealership

277000777

Unavailable

44

Ball Joint

277001180

Unavailable

45

Ball Joint

277000775

Unavailable

46

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

47

Upper Steering Cover | Includes 47 - 48.

277000623

Unavailable

48

Steering Cover Plate

277000674

Unavailable

49

Synthetic Grease, 400 G

293550010

Unavailable

50

Steering Cable Lock This part replaces 277000784.

277001729

Unavailable

51

PIN - Call your local BRP dealership

277000381

Unavailable

52

Half Ring

277001527

Unavailable

53

Rubber Washer

293830063

Unavailable

54

Hex. Screw M6 X 30

207063060

Unavailable

55

Retainer Plate

277000219

Unavailable

56

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

57

Set Screw M6 x 12

211000039

Unavailable

58

TAB LOCK - Call your local BRP dealership

277000279

Unavailable

59

Hex. Elastic Stop Nut M6

232561600

$0.92

60

Tie Wrap 368 mm

293750008

$0.85

61

Hex. Elastic Nut M8

232581600

Unavailable

62

LH HANDLE HOUSING - Call your local BRP dealership | Includes 35 - 38.

277000498

Unavailable

63

VTS KNOB - Call your local BRP dealership

277000497

Unavailable

64

Set Screw M6 x 12

211000039

Unavailable

65

Hex. Elastic Stop Nut M6

232561600

$0.92

66

Stainless Flat Washer M6

234061600

$0.25

67

Hex. Screw M6 X 25

207162560

Unavailable

68

Was 293200017 Neoprene Seal

219704365

Unavailable

69

Hex. Screw M6 X 35

207063560

Unavailable

70

REINFORCEMENT PLATE - Call your local BRP dealership

291000079

Unavailable

71

LARGE BOOT - Call your local BRP dealership

277000776

Unavailable

72

INSERT - Call your local BRP dealership

293450153

Unavailable

73

Flat Washer M8.5 x 18

293050001

Unavailable

74

SMALL BOOT - Call your local BRP dealership

277000777

Unavailable

75

CHOKE CABLE - Call your local BRP dealership | Includes 7 - 8.

270000341

Unavailable

76

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable
