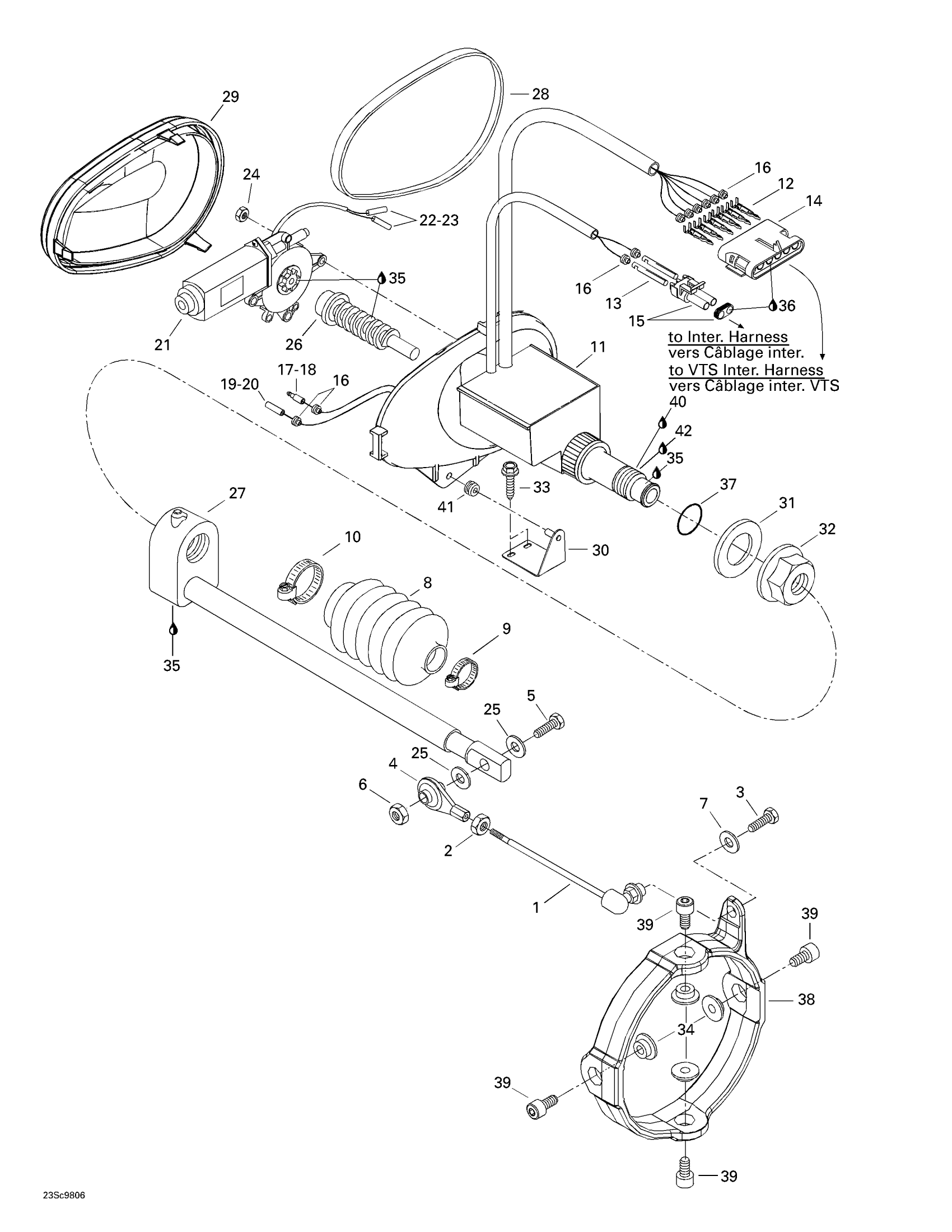

Sea-doo XP Limited, 5665/5667, 1998 Trim Diagram
#
1
Moulding Rod
271000758
Unavailable
2
Hex. Nut
212100005
Unavailable
3
HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership
243041660
Unavailable
4
BALL JOINT - Call your local BRP dealership
277000153
Unavailable
5
Hex. Screw M6 X 35
207063560
Unavailable
7
Flat Washer 5 mm, Stainless
234052600
Unavailable
8
Protector Hose
271000459
Unavailable
9
Clamp
293650082
Unavailable
10
CLAMP - Call your local BRP dealership
293650083
Unavailable
11
V.T.S Housing
278001605
Unavailable
13
Female Terminal
278000223
Unavailable
14
FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership
278000156
Unavailable
16
Wire Seal
278000218
Unavailable
17
Male Terminal
278000230
Unavailable
18
Insulated Sheath
278001008
Unavailable
19
Female Terminal | DS 650 X
278001009
Unavailable
20
Insulated Sheath
278001007
Unavailable
21
Windshield Motor
278002579
Unavailable
22
Insulation Sheath
278000231
Unavailable
23
Male Terminal
278000230
Unavailable
26
Worm Screw
278000428
Unavailable
27
Sliding Block Ass’y
278001698
Unavailable
28
GASKET - Call your local BRP dealership
293200027
Unavailable
29
V.T.S. COVER - Call your local BRP dealership
278000595
Unavailable
30
V.T.S. SUPPORT ASSY - Call your local BRP dealership
292000250
Unavailable
31
SEAL WASHER - Call your local BRP dealership
293830027
Unavailable
32
SPECIAL NUT M27 - Call your local BRP dealership
211100020
Unavailable
33
HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership
243041660
Unavailable
34
Venturi Bushing
293900007
Unavailable
35
Synthetic Grease, 400 G
293550010
Unavailable
36
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
37
O-Ring
293300044
Unavailable
38
Trim Ring, Black
266000013
Unavailable
39
Socket Head Screw M8 X 10, Scotch Grip
211000127
Unavailable
41
GROMMET - Call your local BRP dealership
293720015
Unavailable
42
Was 293800041 Loctite Primer 7649
219704458
Unavailable
