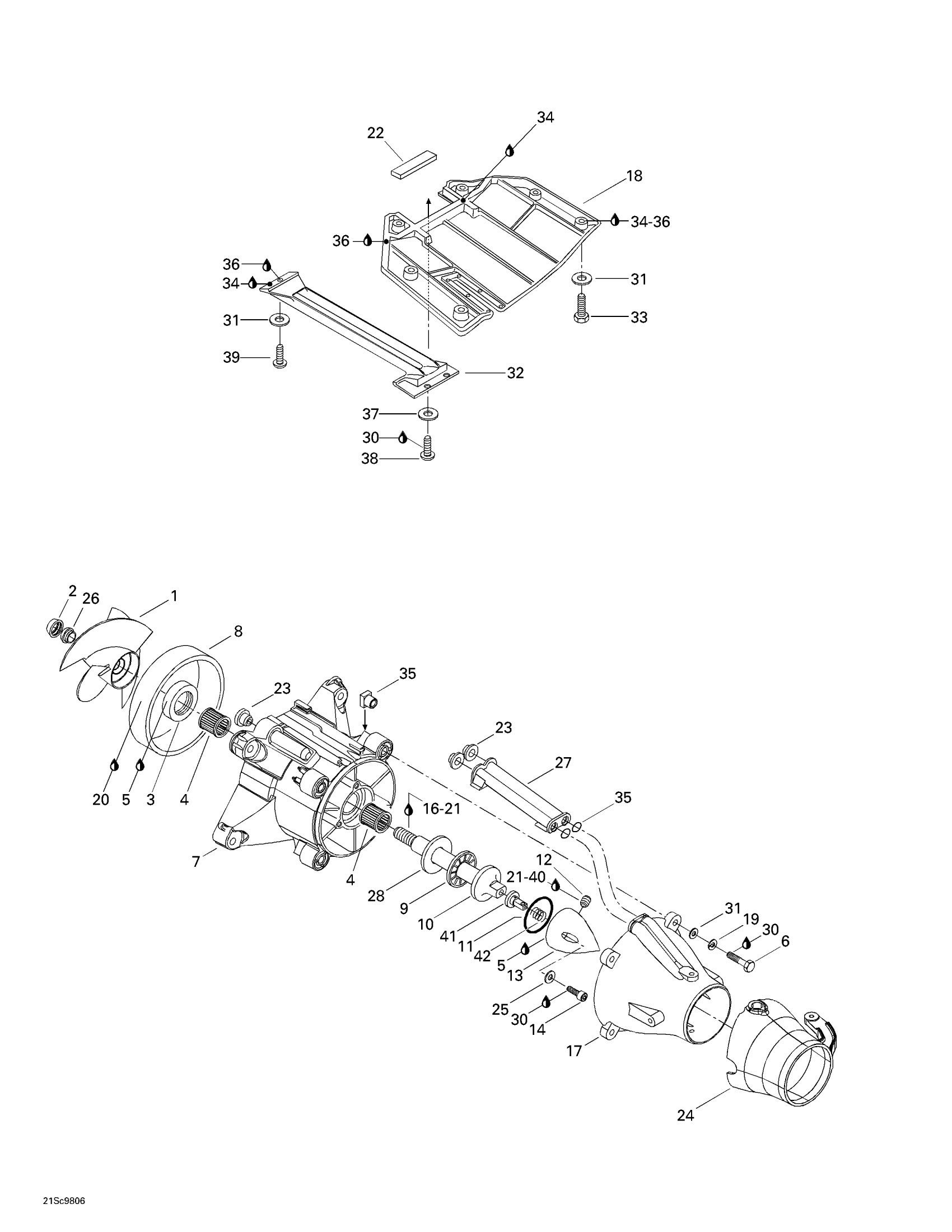

Sea-doo XP Limited, 5665/5667, 1998 Propulsion System Diagram

#

Description
Price

1

Impeller Ass’Y

271000920

Unavailable

2

Impeller Boot

271000516

Unavailable

3

Oil Seal

267000094

Unavailable

4

Needle Bearing

293350017

Unavailable

5

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

6

Hex. Screw M8 X 45

207084560

Unavailable

7

Impeller Housing | Includes 7 - 9.

271000872

Unavailable

8

WEAR-RING - Call your local BRP dealership

271000904

Unavailable

9

BEARING THRUST - Call your local BRP dealership

293350019

Unavailable

10

IMPELLER SHAFT - Call your local BRP dealership

271000886

Unavailable

11

O-Ring

293250085

$0.83

12

Pipe Plug Socket Head 1/8-27 Npt

211500001

Unavailable

13

IMPELLER COVER - Call your local BRP dealership

271000874

Unavailable

14

Socket Head Screw M5 x 20

215952060

Unavailable

15

Square Nut M8

211100033

Unavailable

16

Loctite 271, 10 ml

293800005

Unavailable

17

Venturi Ass'y

271000864

Unavailable

18

Ride Plate

271000834

Unavailable

19

Lock Washer 8 mm, Stainless

234181601

Unavailable

20

Sealant Loctite 648

219703000

Unavailable

21

Was 293800041 Loctite Primer 7649

219704458

Unavailable

22

Neoprene Seal (1PAC=3M)

219704364

$22.72

23

Watertight Seal

293250084

Unavailable

24

Nozzle

271000806

Unavailable

25

Flat Washer M5, Stainless

234051600

$0.64

26

Impeller Ring

271000517

Unavailable

27

Water Outlet

271000785

Unavailable

28

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

29

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

Unavailable

30

Loctite 243, 10 ml

293800060

$20.77

31

Stainless, Flat Washer 8 mm

234081600

Unavailable

32

Pump Grate

271000763

Unavailable

33

Hex. Screw M8 X 30

207183060

Unavailable

34

Instant Gasket

219701421

Unavailable

35

O-Ring

293300013

$5.69

36

Silicone Sealant 51388, 300 ml

296000309

Unavailable

37

Stainless Flat Washer M6

234061600

$0.25

38

Hex. Screw M6 X 16

207161660

Unavailable

39

Hex. Screw M8 X 25, Scotch Grip

207382560

Unavailable

40

Was 293800013 Loctite 56765

219704454

Unavailable

41

Pusher

271000898

Unavailable

42

SPRING - Call your local BRP dealership

271000704

Unavailable
