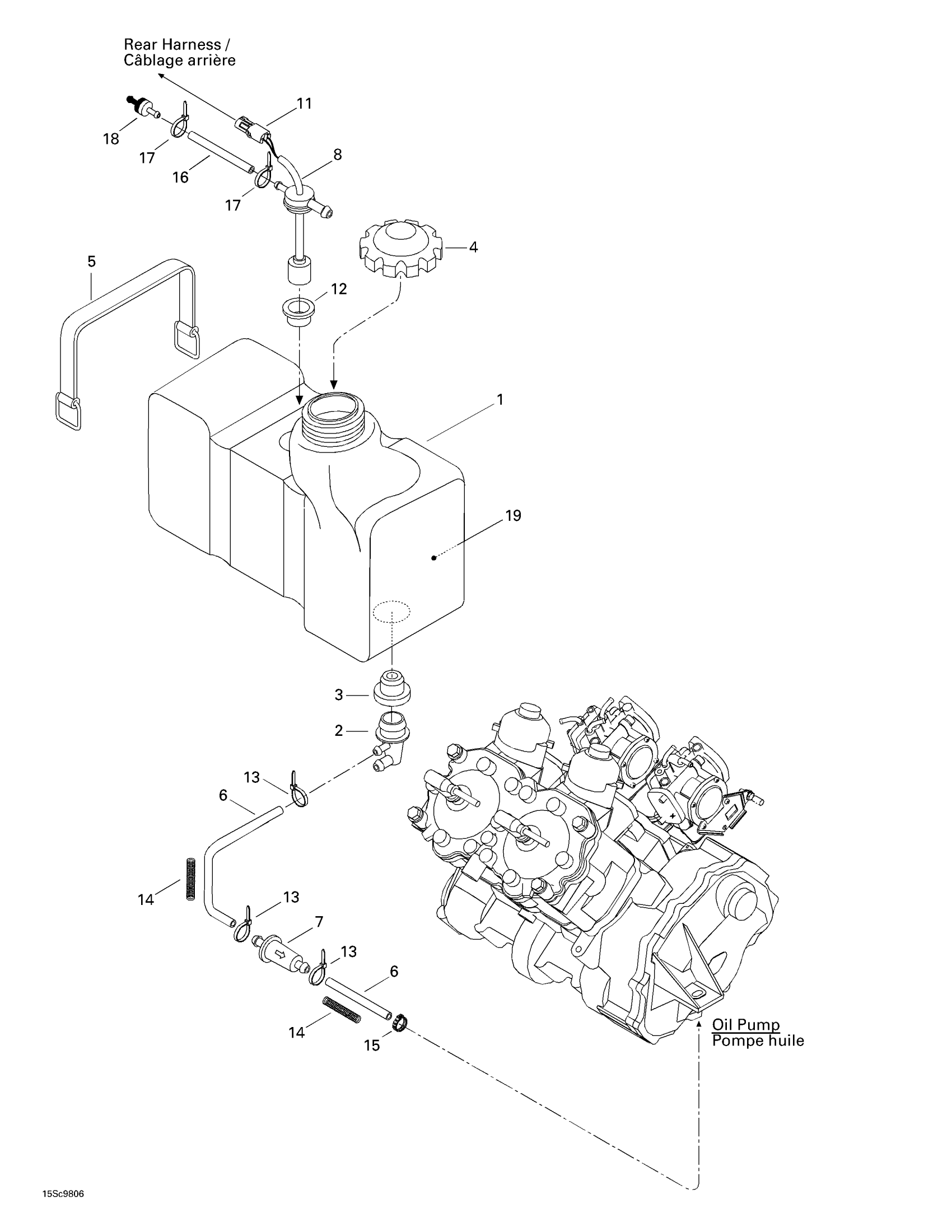

Sea-doo XP Limited, 5665/5667, 1998 Oil Injection System Diagram

#

Description
Price

1

Oil Tank

275000210

Unavailable

2

Elbow Fitting 90°

293710070

Unavailable

3

Grommet

293720008

Unavailable

4

Fuel Tank Cap

513033025

$19.47

5

Retainer Strap

293850097

Unavailable

6

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

7

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

8

Oil Level Sensor Ass'y | Includes 8 - 12.

278001287

Unavailable

9

Wire Seal

278000218

Unavailable

10

Male Terminal | XT Models

278000222

$2.55

11

Female Housing, 2 Circuits

278000217

Unavailable

12

Grommet

293720008

Unavailable

13

Tie Wrap 94 mm | 4X4

293750001

$0.83

14

Spring

270000377

Unavailable

15

Oetiker Clamp

293650042

Unavailable

16

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

17

Tie Wrap 142 mm

293750002

Unavailable

18

Check Valve

275500398

Unavailable

19

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

Unavailable

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

Unavailable

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

SYNTHETIC INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership

413710500

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable
