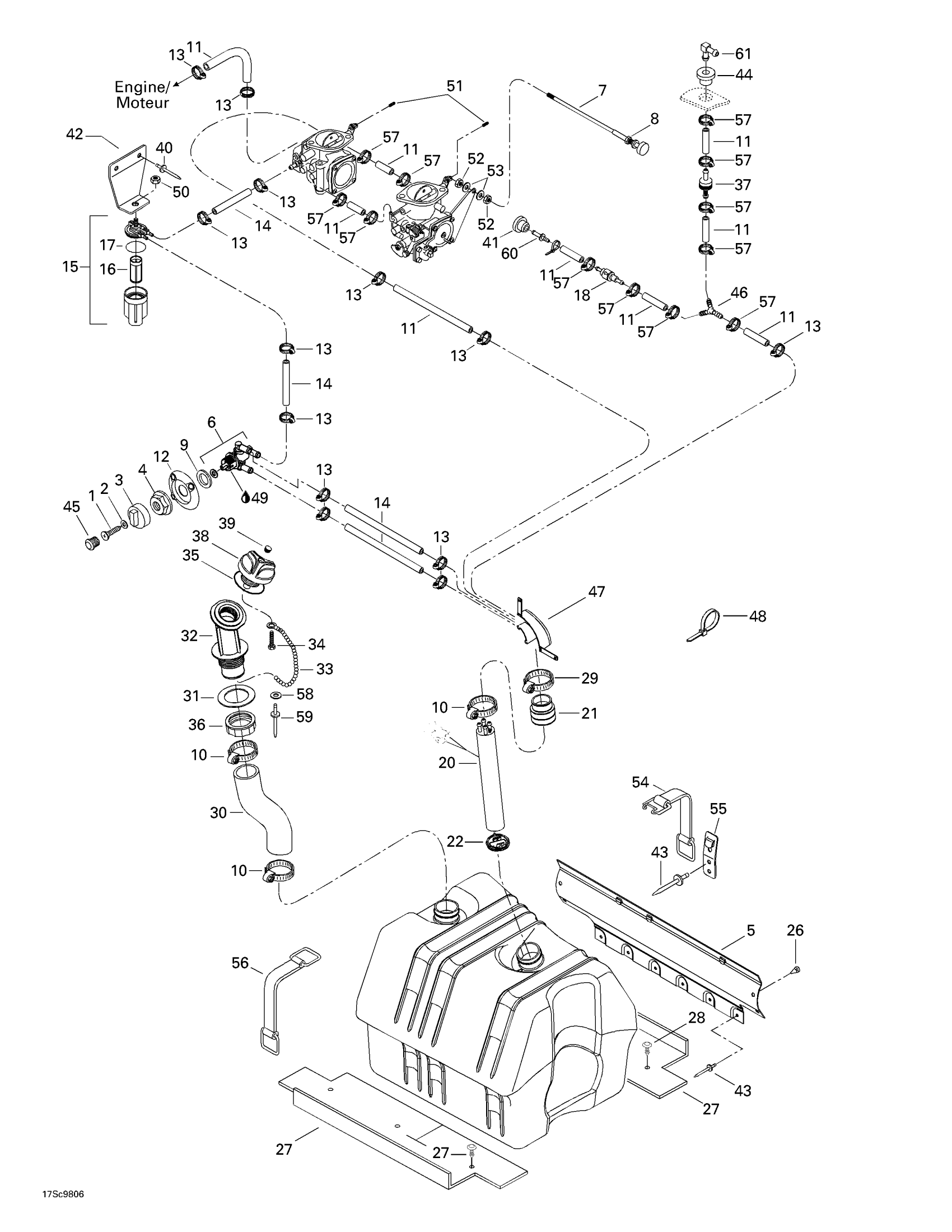

Sea-doo XP Limited, 5665/5667, 1998 Fuel System Diagram

#

Description
Price

1

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

2

Flat Washer 4 mm

234040600

Unavailable

3

FUEL VALVE KNOB - Call your local BRP dealership

275500299

Unavailable

4

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

5

Heat Shield

292000444

Unavailable

6

Fuel Valve

275500400

Unavailable

7

CHOKE CABLE - Call your local BRP dealership | Includes 7 - 8.

270000341

Unavailable

8

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

9

GASKET - Call your local BRP dealership

293250004

Unavailable

10

Tridon Clamp

293650023

Unavailable

11

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

12

Fuel Valve Plate

275500285

Unavailable

13

Tridon Gear Clamp

293650170

$1.74

14

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

15

FUEL FILTER ASS'Y - Call your local BRP dealership | Includes 30 - 32.

275500358

Unavailable

16

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

17

O-Ring

275500090

Unavailable

18

Check Valve

275500505

Unavailable

19

Fuel Tank

275500364

Unavailable

20

Baffle Pick-Up | Includes 20 - 25.

275500369

Unavailable

21

Tube Adapter

275500111

Unavailable

22

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

23

Wire Seal

278000218

Unavailable

24

Male Connector, 2 Circuits

278000220

$11.02

25

Female Terminal

278000223

Unavailable

26

Rubber Stopper

293830064

Unavailable

27

Rubber Pad

293830056

Unavailable

28

Black, Dart

293730006

Unavailable

29

Tridon Clamp

293650035

Unavailable

30

Filler Neck Hose

275500338

Unavailable

31

Gasket

293250029

Unavailable

32

FUEL FILLER NECK - Call your local BRP dealership

275500229

Unavailable

33

Chain

275500230

Unavailable

34

Screw K40 X 10

241140060

$1.25

35

Gasket

293250017

Unavailable

36

Filler Neck Nut, Fuel

211100012

Unavailable

37

Check Valve

275500398

Unavailable

38

Fuel Tank Cap, Black | Includes 26 to 27

275500430

Unavailable

39

Black, Snap Cap

293000034

Unavailable

40

Avdel Rivet 3/16"

293150037

$0.47

41

Grommet

293720029

Unavailable

42

Fuel Filter Support

275500228

Unavailable

43

Avdel Rivet 3/16"

293150037

$0.47

44

Grommet

709200285

$8.38

45

Black, Cap

275500241

Unavailable

46

Y-Fitting

293710059

Unavailable

47

Fuel Hose Guide

275500395

Unavailable

48

Tie-Rap 180 mm

414115200

$0.09

49

Synthetic Grease, 400 G

293550010

Unavailable

50

Hex. Elastic Stop Nut M6

232561600

$0.92

51

Allen Screw M4 x 6

210100014

Unavailable

52

Hex. Nut M6

232160600

Unavailable

53

Stainless Flat Washer M6

234061600

$0.25

54

FUEL TANK STRAP - Call your local BRP dealership | Includes 10 to 12

293850037

Unavailable

55

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

56

Fuel Tank Strap

293850036

Unavailable

57

Oetiker Clamp

293650042

Unavailable

58

Flat Washer M3, Stainless

234032600

$0.54

59

Pop Rivet 1/8"

390407900

Unavailable

60

Straight Fitting

293710039

Unavailable

61

Elbow Male Connector

414580600

$3.50
