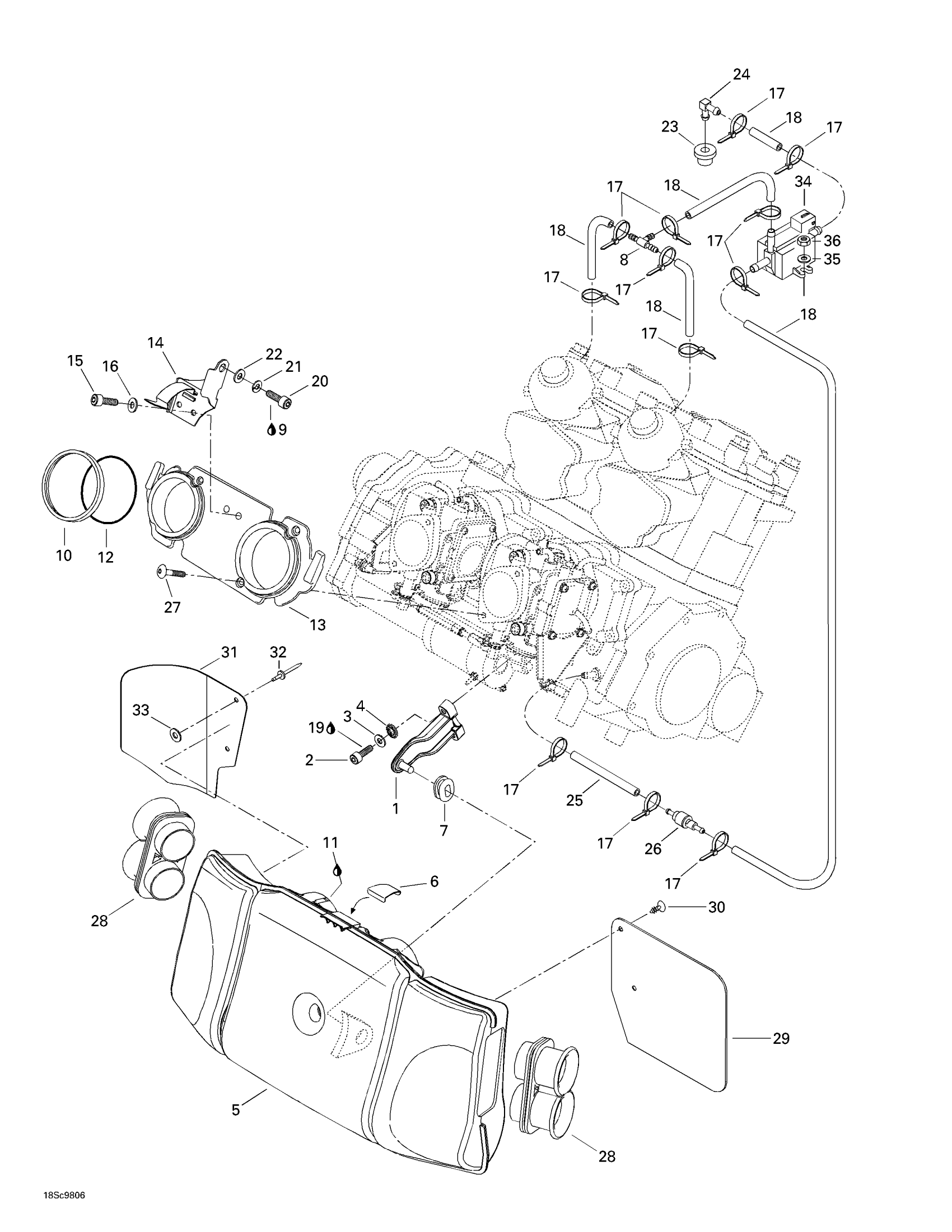

Sea-doo XP Limited, 5665/5667, 1998 Air Intake System Diagram

#

Description
Price

1

Silencer Support

273000123

Unavailable

2

Socket Head Screw M6 X 35

205063560

Unavailable

3

Stainless Flat Washer M6

234061600

$0.25

4

External Serrated Lock Washer 6 mm

234461608

Unavailable

5

Air Silencer

273000136

Unavailable

6

Support Plate

273000112

Unavailable

7

Cable Grommet

293720052

Unavailable

8

T-Fitting

293710068

$6.59

9

Loctite 243, 10 ml

293800060

$20.77

10

Gasket

293250122

Unavailable

11

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

12

O-Ring

293250065

Unavailable

13

Air Silencer Adaptor

270500383

Unavailable

14

Holder

270000419

Unavailable

15

Socket Head Screw M6 X 12, Scotch Grip

205561260

Unavailable

16

Stainless Flat Washer M6

234061600

$0.25

17

Tie Wrap 94 mm | 4X4

293750001

$0.83

18

Was 420660574 Pressure Hose 280 mm

219704352

Unavailable

19

Loctite 271, 10 ml

293800005

Unavailable

20

SCREW-SOCKET HD.DIN.912A2 - Call your local BRP dealership

215981660

Unavailable

21

Lock Washer 8 mm, Stainless

234181601

Unavailable

22

Flat Washer 8 mm, Stainless

234082600

Unavailable

23

Grommet

293720029

Unavailable

24

Elbow Fitting 90 Deg

293710050

Unavailable

25

Hose 6 Mm 15000Mm Long

219704360

Unavailable

26

Check Valve

275500417

Unavailable

27

Screw

270500357

Unavailable

28

Inlet Tube

273000107

Unavailable

29

Rubber Deflector

273000134

Unavailable

30

Black Dart

293730010

Unavailable

31

Deflector

273000135

Unavailable

32

Pop Rivet 3/16"

204000081

Unavailable

33

Flat Washer | XT

211200035

Unavailable

34

Solenoid Valve

270600005

$39.62

35

Flat Washer M5, Stainless

234051600

$0.64

36

Hex. Elastic Nut M5 | X

232551600

Unavailable
