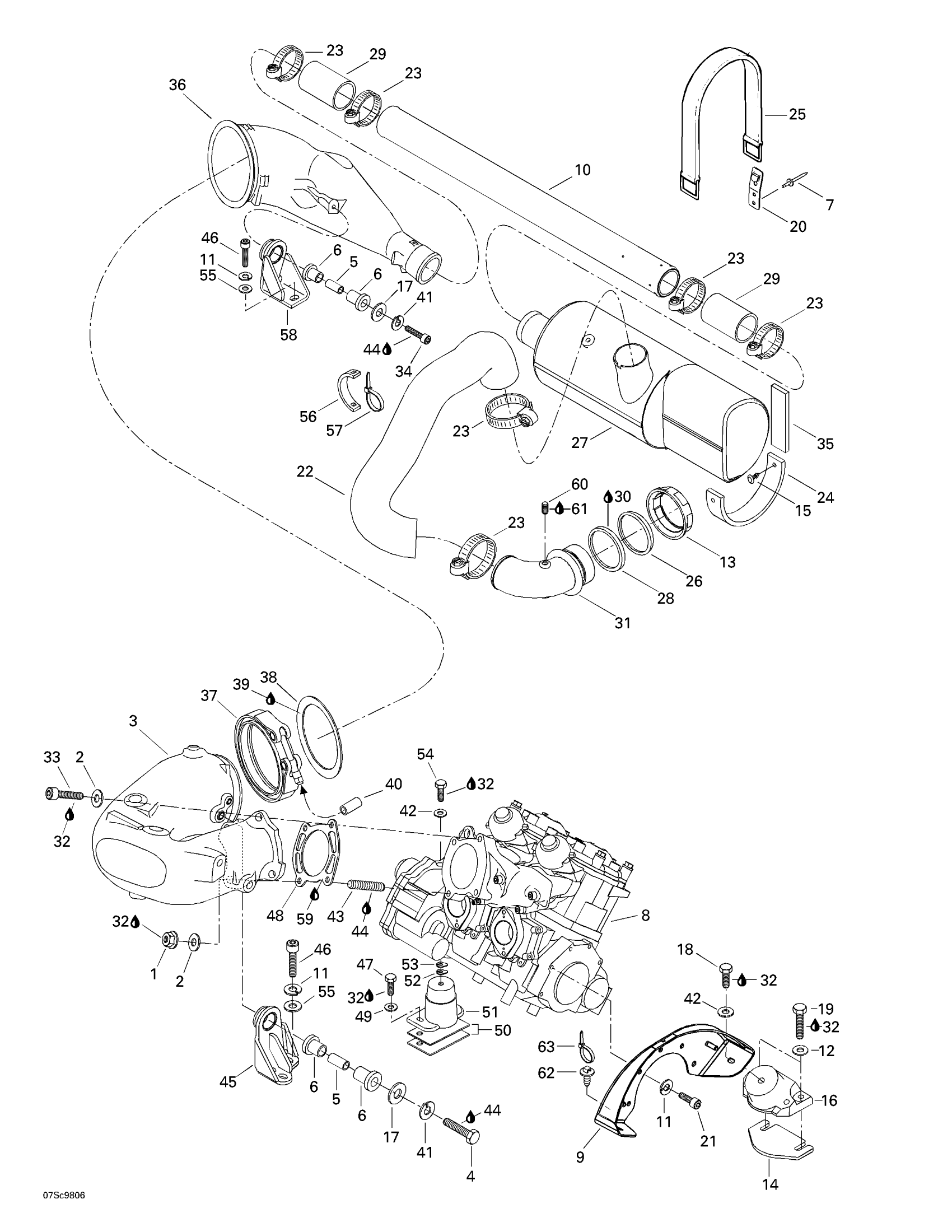

Sea-doo XP Limited, 5665/5667, 1998 Engine Support And Muffler Diagram

#

Description
Price

1

Hex. Flange Nut M10

233101414

Unavailable

2

Flat Washer

211200051

Unavailable

3

Head Pipe Ass'y | Includes 4 - 8.

274000714

Unavailable

4

Hex. Screw M10 x 40

215604060

Unavailable

5

Bushing

274000254

Unavailable

6

RUBBER BUSHING - Call your local BRP dealership

293830036

Unavailable

7

Avdel Rivet 3/16"

293150037

$0.47

8

Rotax Engine 947 (Silver)

270000357

Unavailable

9

Engine Support

270000359

Unavailable

10

Expension Tube

274000543

Unavailable

11

Lock Washer 8 mm, Stainless

234181601

Unavailable

12

Stainless, Flat Washer 8 mm

234081600

Unavailable

13

Nut 72 mm

274000224

Unavailable

14

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

15

Black, Dart

293730011

Unavailable

16

Rubber Mount

270000352

Unavailable

17

Flat Washer 10 mm, Stainless

234002600

Unavailable

18

Hex. Screw M8 x 16

215681660

Unavailable

19

Hex. Screw M8 X 40

207184060

Unavailable

20

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

21

Socket Head Screw M8 X 25, Scotch Grip

205582560

Unavailable

22

Exhaust Hose

274000694

Unavailable

23

Tridon Clamp

293650064

Unavailable

24

Rubber Pad

293830055

Unavailable

25

Retainer Strap

293850097

Unavailable

26

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

27

Muffler

274000545

Unavailable

28

GASKET - Call your local BRP dealership

293250041

Unavailable

29

EXHAUST HOSE - Call your local BRP dealership

274000530

Unavailable

30

Silicone Sealant 51388, 300 ml

296000309

Unavailable

31

EXHAUST OUTLET - Call your local BRP dealership | Engine 1503 BVIC

274000542

Unavailable

32

Loctite 243, 10 ml

293800060

$20.77

33

Socket Head Screw M10 x 35

215903560

Unavailable

34

SOCKET HEAD SCREW M10 X 40 - Call your local BRP dealership

205004060

Unavailable

35

Rubber Strip

293830034

Unavailable

36

Exhaust Cone

274000658

Unavailable

37

EXHAUST CLAMP - Call your local BRP dealership

274000510

Unavailable

38

SEALING RING - Call your local BRP dealership

274000511

Unavailable

39

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

40

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

41

Helicoidal Lock Washer M10 | XT Models

234101601

Unavailable

42

Flat Washer 8 mm, Stainless

234082600

Unavailable

43

Stud M10 x 55

211300025

Unavailable

44

Loctite 271, 10 ml

293800005

Unavailable

45

Support Pipe

274000679

Unavailable

46

Socket Head Screw M8 X 25, Scotch Grip

205582560

Unavailable

47

Hex. Screw M8 X 40

207184060

Unavailable

48

Gasket

293250080

Unavailable

49

Stainless, Flat Washer 8 mm

234081600

Unavailable

50

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

51

Rubber Mount

270000369

Unavailable

52

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

53

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

54

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

55

Flat Washer M8.5 x 18

293050001

Unavailable

56

Resonator Pad

293830060

Unavailable

57

Tie Wrap 368 mm

293750008

$0.85

58

Pipe Support

274000636

Unavailable

59

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

60

Pipe Plug Socket Head 1/8-27 Npt

211500001

Unavailable

61

Was 293800013 Loctite 56765

219704454

Unavailable

62

Mount Dart

293730040

$0.86

63

Tie-Rap 180 mm

414115200

$0.09
