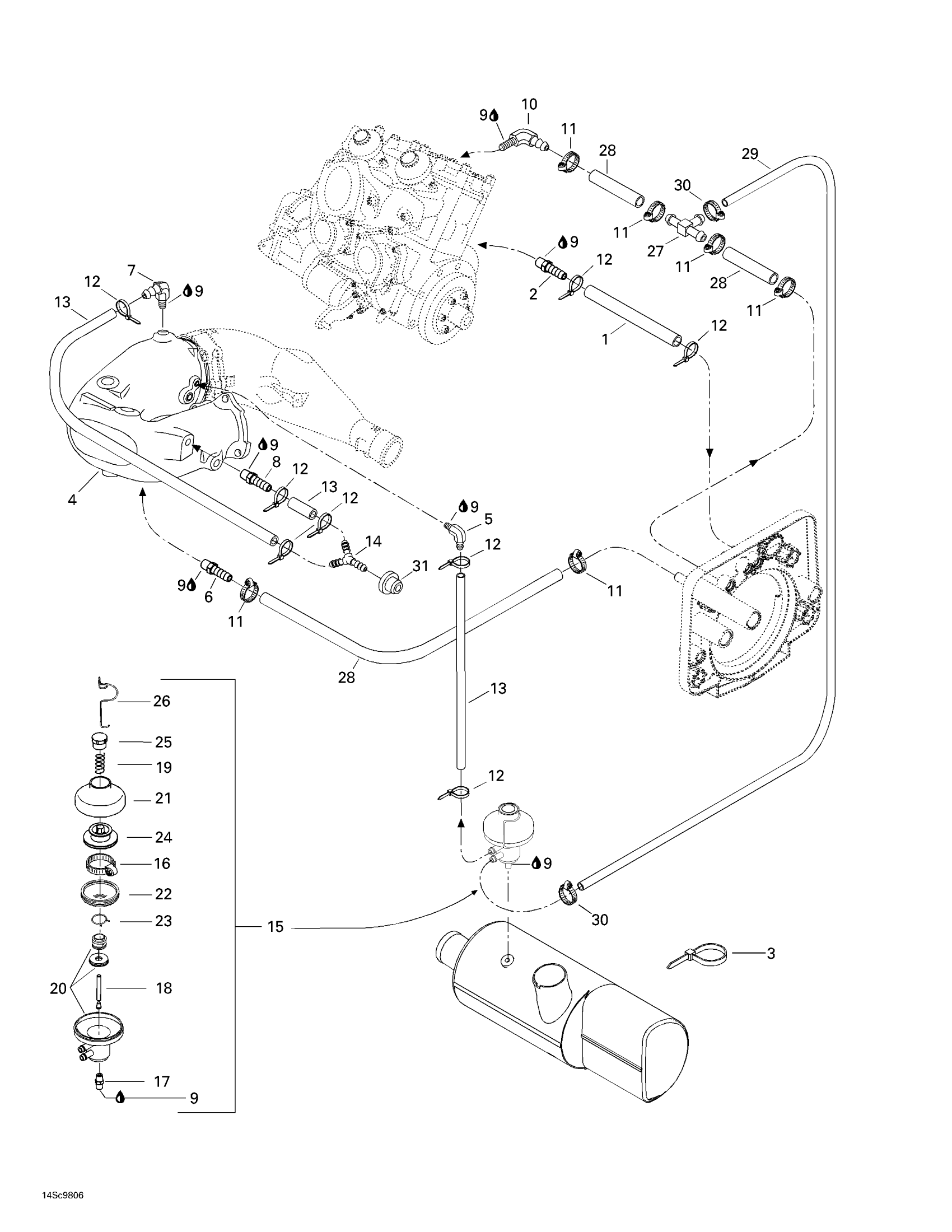

Sea-doo XP Limited, 5665/5667, 1998 Cooling System Diagram

#

Description
Price

1

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

2

MALE CONNECTOR - Call your local BRP dealership

293710066

Unavailable

3

Tie Wrap 368 mm

293750008

$0.85

4

Head Pipe Ass'y | Includes 4 - 8.

274000714

Unavailable

5

Elbow Fitting 90°

293710018

Unavailable

6

Male Connector | With Catalyst

293710021

Unavailable

7

Elbow Fitting 90°

293710048

Unavailable

8

Male Connector

293710037

Unavailable

9

Was 293800013 Loctite 56765

219704454

Unavailable

10

Elbow Fitting 90° | Without Catalyst

293700023

Unavailable

11

Tridon Gear Clamp

293650172

$2.68

12

Tie Wrap 94 mm | 4X4

293750001

$0.83

13

Hose 6 Mm 15000Mm Long

219704360

Unavailable

14

Y-Fitting

293710059

Unavailable

15

PRESSURE REGULATOR ASS'Y - Call your local BRP dealership | Includes 15 - 26.

274000717

Unavailable

16

Rivalair Clamp

293650065

Unavailable

17

MALE CONNECTOR - Call your local BRP dealership

293700010

Unavailable

18

FEEDING ROD - Call your local BRP dealership

274000423

Unavailable

19

Spring 50 mm

274000612

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Valve Cover

420911552

$37.66

22

Bellow

420260721

Unavailable

23

SPRING CLAMP - Call your local BRP dealership

420838190

Unavailable

24

EXHAUST VALVE - Call your local BRP dealership

420253255

Unavailable

25

Adjuster Screw

420241221

Unavailable

26

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

27

T-Fitting

293710116

Unavailable

28

Was 276000001 Hose 12.5 mm

219704394

Unavailable

29

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

30

Tridon Gear Clamp

293650170

$1.74

31

Grommet

293720029

Unavailable
