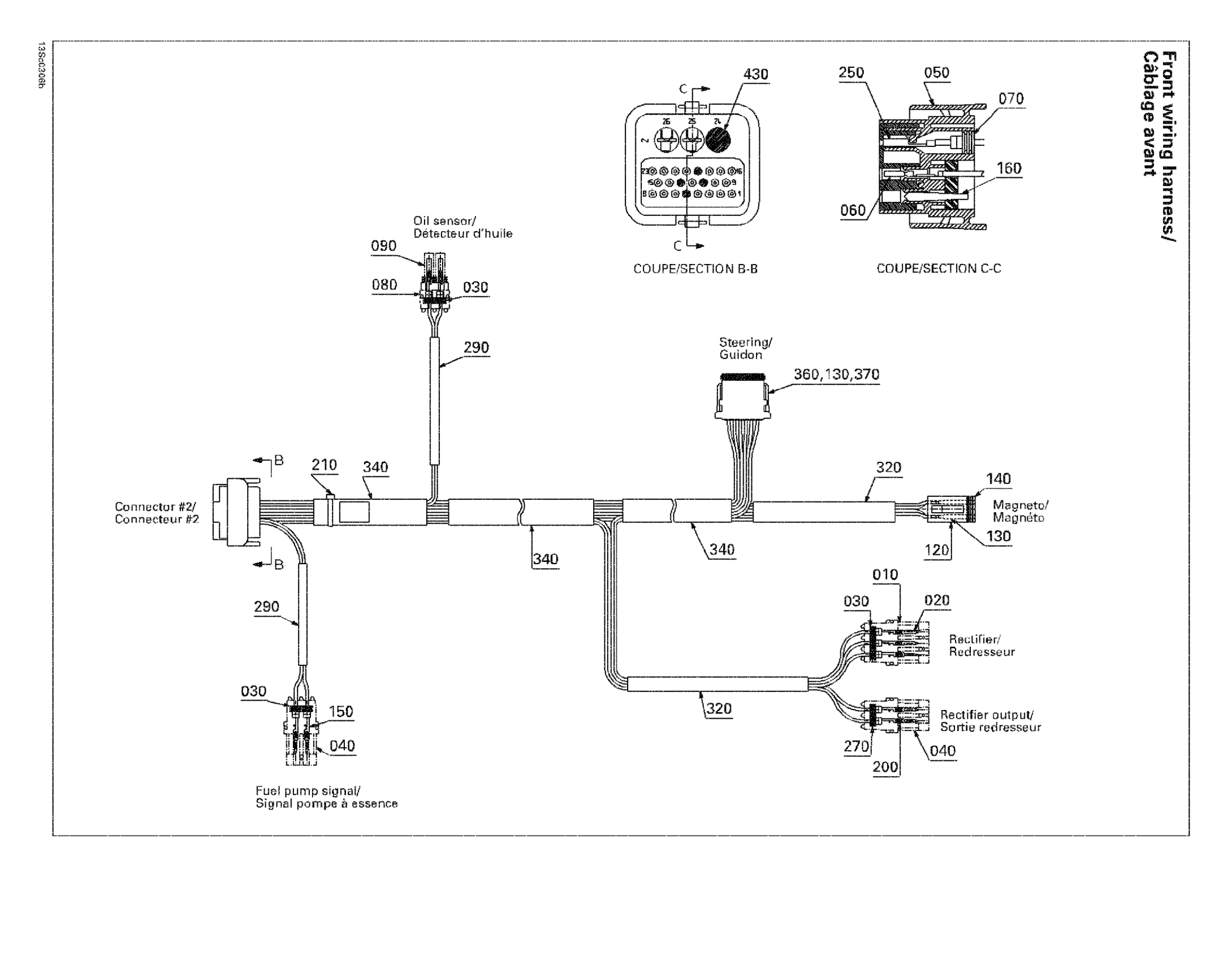

Sea-doo XP DI, 6130/6131, 2003 Front Harness Diagram

#

Description
Price

1

Front Wiring Harness | Includes 10 to 430

278001879

Unavailable

10

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

20

Male Terminal

409004300

$5.30

30

Wire Seal

278000218

$4.00

40

Female Housing, 2 Circuits

278000217

$8.72

50

Male Terminal Housing, 26 Circuits

278001062

Unavailable

60

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

70

Seal

278001223

Unavailable

80

Male Connector, 2 Circuits

278000220

$12.66

90

Female Terminal

278000223

$2.93

120

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.37

130

Female Terminal

278000632

$1.94

140

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

150

Male Terminal | XT Models

278000222

$2.93

160

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

200

MALE TERMINAL - Call your local BRP dealership

278001576

Unavailable

210

Tie Wrap 142 mm

293750002

$1.01

250

FEMALE TERMINAL - Call your local BRP dealership

409011700

Unavailable

270

WIRE SEAL - Call your local BRP dealership

278001505

Unavailable

290

Not Available As Spare Part - Friction Washer

Unavailable

320

Not Available As Spare Part - Friction Washer

Unavailable

340

Not Available As Spare Part - Friction Washer

Unavailable

360

Female Terminal Housing, 12 Circuits

278002377

$45.49

370

Female Lock, 12 Circuits

409015700

$4.28

430

SEAL - Call your local BRP dealership

409013900

Unavailable
