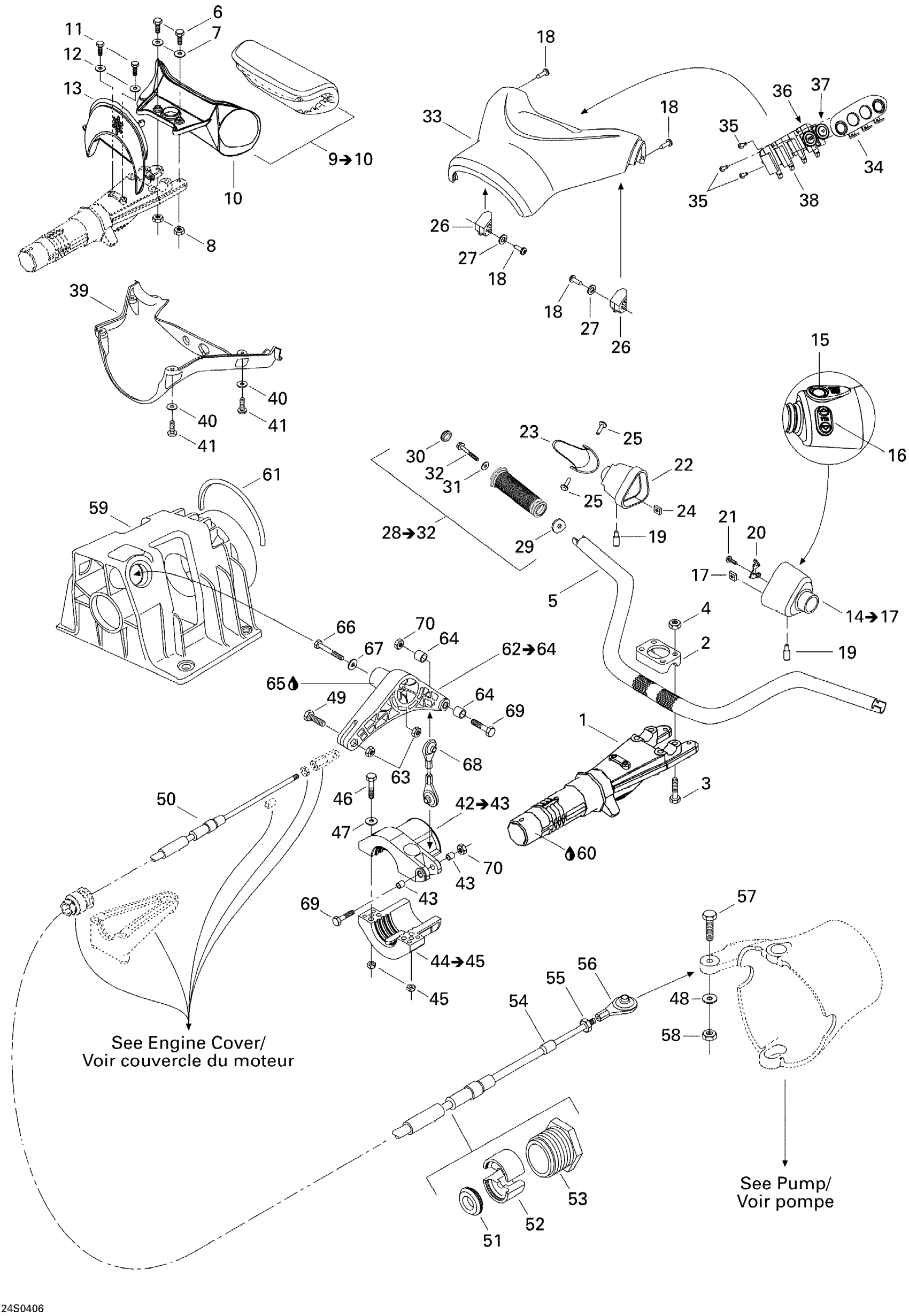

Sea-doo XP DI, 2004 Steering Diagram

#

Description
Price

1

Steering Stem

277000562400

Unavailable

2

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

3

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

4

Hex. Elastic Nut M8

232581600

Unavailable

5

Handlebar

277000824

Unavailable

6

Hex. Screw M6 X 30

207063060

Unavailable

7

Stainless Flat Washer M6

234061600

Unavailable

8

Hex. Elastic Stop Nut M6

232561600

Unavailable

9

Handle Pad | Includes 9 to 10

277000867

Unavailable

10

Handle Bar Pad Support

277000687

Unavailable

11

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

12

Flat Washer M6, Stainless

234062600

Unavailable

13

PLATE - Call your local BRP dealership

277000549

Unavailable

14

HOUSING ASSY - Call your local BRP dealership | Includes 14 to 17

277000877

Unavailable

15

Switch Knob

277000306

Unavailable

16

VTS KNOB - Call your local BRP dealership

277000497

Unavailable

17

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

18

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

19

Socket Head Screw M6 X 16

250000036

Unavailable

20

Retainer Plate

277000845

Unavailable

21

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

22

THROTTLE HOUSING ASS'Y - Call your local BRP dealership

277000872

Unavailable

23

THROTTLE HANDLE - Call your local BRP dealership

277001485

Unavailable

24

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

25

PIN - Call your local BRP dealership

277000381

Unavailable

26

INSERT - Call your local BRP dealership

293450153

Unavailable

27

Flat Washer M5, Stainless

234051600

Unavailable

28

HANDLE GRIP KIT, BLACK - Call your local BRP dealership

295500691

Unavailable

29

Insert Grip Handle

277001863

Unavailable

30

Black, Cap

277000203

Unavailable

31

Flat Washer M6, Stainless

234062600

Unavailable

32

Hex. Screw M6 X 30, Scotch Grip

250000002

Unavailable

33

Steering Cover

277000636

Unavailable

34

RETAINER PLATE - Call your local BRP dealership | LE

277000688

Unavailable

35

Screw K40 X 10

241140060

Unavailable

36

MODE KNOB - Call your local BRP dealership | LE

293000099

Unavailable

37

«Set» Knob | LE

293000080

Unavailable

38

Switch Support | LE

277000563

Unavailable

39

Steering Cover

277001205

Unavailable

40

Flat Washer M5, Stainless

234051600

Unavailable

41

Hex. Flange Screw K40 X 16

241141660

Unavailable

42

Steering Arm Stem | Includes 42 to 43

277000620

Unavailable

43

SPACER - Call your local BRP dealership

291000176

Unavailable

44

Arm Thrust | Includes 43 to 44

277000519

Unavailable

45

Hex. Elastic Stop Nut M6

232561600

Unavailable

46

Hex. Screw M6 X 25

207162560

Unavailable

47

Flat Washer M6, Stainless

234062600

Unavailable

48

Stainless Flat Washer M6

234061600

Unavailable

49

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

50

Cable-Steering This part replaces 277001008.

277001324

Unavailable

51

Rubber Washer

293830063

Unavailable

52

Half Ring

277001527

Unavailable

53

Steering Cable Lock This part replaces 277000784.

277001729

Unavailable

54

Terminal Wiper

277000441

Unavailable

55

Hex. Nut 1/4"-28

211100056

Unavailable

56

Ball Joint

277000775

Unavailable

57

Hex. Screw M6 X 35

207063560

Unavailable

58

Hex. Elastic Stop Nut M6

232561600

Unavailable

59

STEERING SUPPORT - Call your local BRP dealership

277000617

Unavailable

60

Synthetic Grease, 400 G

293550010

Unavailable

61

Was 293200017 Neoprene Seal

219704365

Unavailable

62

L-LEVER - Call your local BRP dealership | Includes 62 to 64

277000772

Unavailable

63

Hex. Elastic Stop Nut M6

232561600

Unavailable

64

SPACER - Call your local BRP dealership

291000176

Unavailable

65

Synthetic Grease, 400 G

293550010

Unavailable

66

Hex. Forming Screw M6 X 20

207162060

Unavailable

67

Flat Washer M6, Stainless

234062600

Unavailable

68

BALL JOINT - Call your local BRP dealership

277000829

Unavailable

69

Hex. Screw M6 X 40

207064060

Unavailable

70

Hex. Elastic Stop Nut M6

232561600

Unavailable
