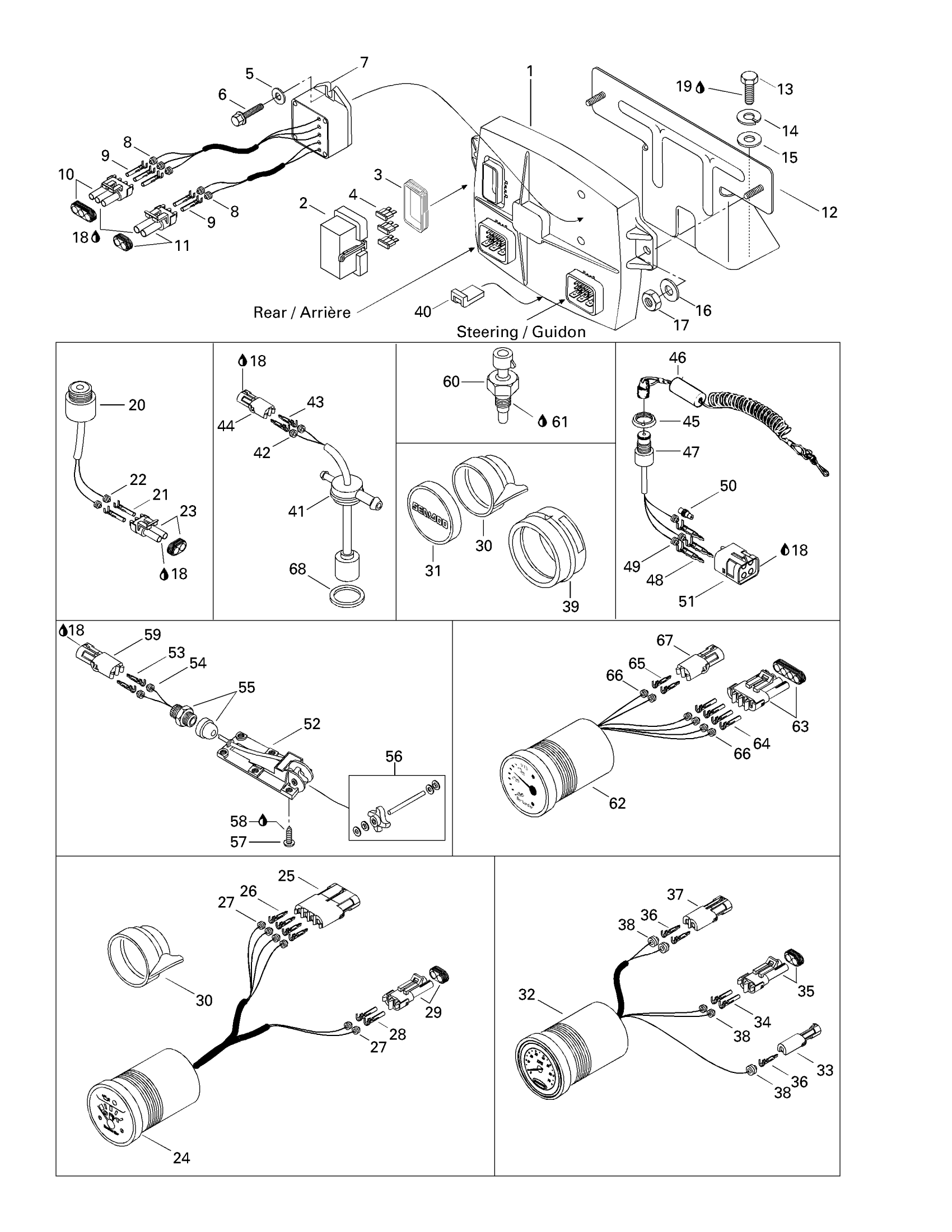

Sea-doo XP, 5662, 1997 Electronic Module And Electrical Accessories Diagram

#

Description
Price

1

Electronic Module (2 Connectors)

278001078

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

3

Cover Seal

278001070

Unavailable

4

Fuse, 15 Amperes

278000343

$3.12

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

Fuse, 5 Amperes | CE

278000344

$3.12

5

Stainless Flat Washer M6

234061600

$0.28

6

HEX. FORMING SCREW M6 X 16 - Call your local BRP dealership

211000106

Unavailable

7

RECTIFIER ASS'Y - Call your local BRP dealership | Includes 8 - 12.

278001240

Unavailable

8

Wire Seal

278000218

$4.00

9

Female Terminal

409007300

$0.42

10

Male Housing, 3 Circuits

278000273

$8.72

11

Male Connector, 2 Circuits

278000220

$12.66

12

Box Support Ass'y

278001131

Unavailable

13

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

14

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

15

Flat Washer 5 mm, Stainless

234052600

$0.73

16

Flat Washer M6, Stainless

234062600

$0.73

17

Hex. Elastic Stop Nut M6

232561600

$1.06

18

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

19

Loctite 271, 10 ml

293800005

$23.85

20

Buzzer Ass'y | Includes 11 - 14.

278000978

Unavailable

21

Female Terminal

278000223

$2.93

22

Wire Seal

278000218

$4.00

23

Male Connector, 2 Circuits

278000220

$12.66

24

Fuel/essence | Includes 24 - 29.

278001103

Unavailable

25

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278000394

Unavailable

26

Male Terminal | XT Models

278000222

$2.93

27

Wire Seal

278000218

$4.00

28

Female Terminal

278000223

$2.93

29

Male Connector, 2 Circuits

278000220

$12.66

30

GAUGE SUPPORT - Call your local BRP dealership

293720005

Unavailable

31

Cap Jauge (Black)

269700035

Unavailable

32

Speedometer | Includes 32 - 38.

278001104

Unavailable

33

Female Housing, 1 Circuit

278000161

$8.72

34

Female Terminal

278000223

$2.93

35

Male Connector, 2 Circuits

278000220

$12.66

36

Male Terminal | XT Models

278000222

$2.93

37

Female Housing, 2 Circuits

278000217

$8.72

38

Wire Seal

278001065

$5.85

39

Gauge Support

293720047

Unavailable

40

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

41

OIL LEVEL SENSOR ASS'Y - Call your local BRP dealership | Includes 33 - 36.

204470106

Unavailable

42

Wire Seal

278000218

$4.00

43

Male Terminal | XT Models

278000222

$2.93

44

Female Housing, 2 Circuits

278000217

$8.72

45

Safety Nut (DESS Switch)

278002963

$3.12

46

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

Unavailable

47

Safety Switch | Includes 15 - 19.

278000977

Unavailable

48

Male Terminal | XT Models

278000222

$2.93

49

Wire Seal

278000218

$4.00

50

Wire Seal

278000216

$2.93

51

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

52

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

53

Not Available As Spare Part - Friction Washer

Unavailable

54

Not Available As Spare Part - Friction Washer

Unavailable

55

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

56

Paddle Wheel Kit

295500108

Unavailable

57

Screw M5 x 16

216151660

Unavailable

58

Loctite 243, 10 ml

293800060

$21.49

59

Female Housing, 2 Circuits

278000217

$8.72

60

Temperature Sensor

278000965

$66.39

61

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

62

VTS Gauge | Includes 62 - 67.

278000989

Unavailable

63

Female Housing, 2 Circuits

278000217

$8.72

64

Male Terminal | XT Models

278000222

$2.93

65

Female Terminal

278000223

$2.93

66

Wire Seal

278001065

$5.85

67

Male Housing, 4 Circuits

278000395

$14.57

68

Grommet

204470104

Unavailable
