Partiron

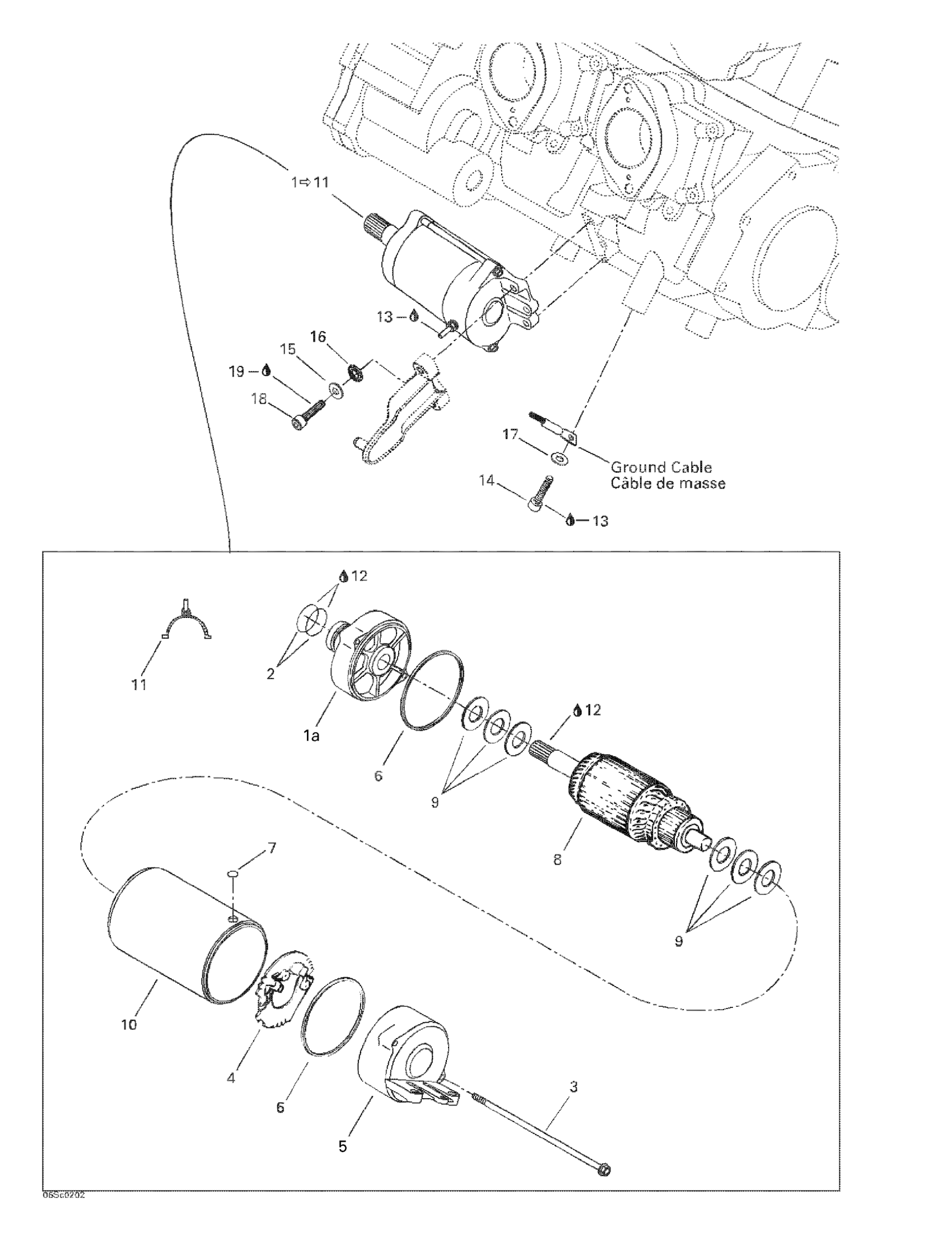

Sea-doo XP, 5577/5578, 2002 Starter Diagram

#

Description
Price

1

Starter Ass'y, Black

278001937

$232.02

1a

Front Housing

278001152

Unavailable

2

O-RING - Call your local BRP dealership

278001159

$9.48

3

SCREW - Call your local BRP dealership

278001157

Unavailable

4

BRUSH HOLDER - Call your local BRP dealership

278001154

$73.05

5

REAR HOUSING - Call your local BRP dealership

278001156

$113.05

6

SQUARE RING - Call your local BRP dealership

278001158

$6.15

7

O-RING - Call your local BRP dealership

278001160

$5.51

8

Armature

278001155

Unavailable

9

Set Washer

278001161

Unavailable

10

Starter Housing

278001153

Unavailable

11

SET BRUSH - Call your local BRP dealership

278001385

$60.74

12

Synthetic Grease, 400 G

293550010

Unavailable

13

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

14

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.29

15

Stainless Flat Washer M6

234061600

$0.25

16

Lock Washer Helical M6

234161601

$0.92

17

Flat Washer 10 mm, Stainless

234001600

$0.91

18

Socket Head Screw M6 X 35

205063560

$1.85

19

Loctite 243, 10 ml

293800060

$20.77
