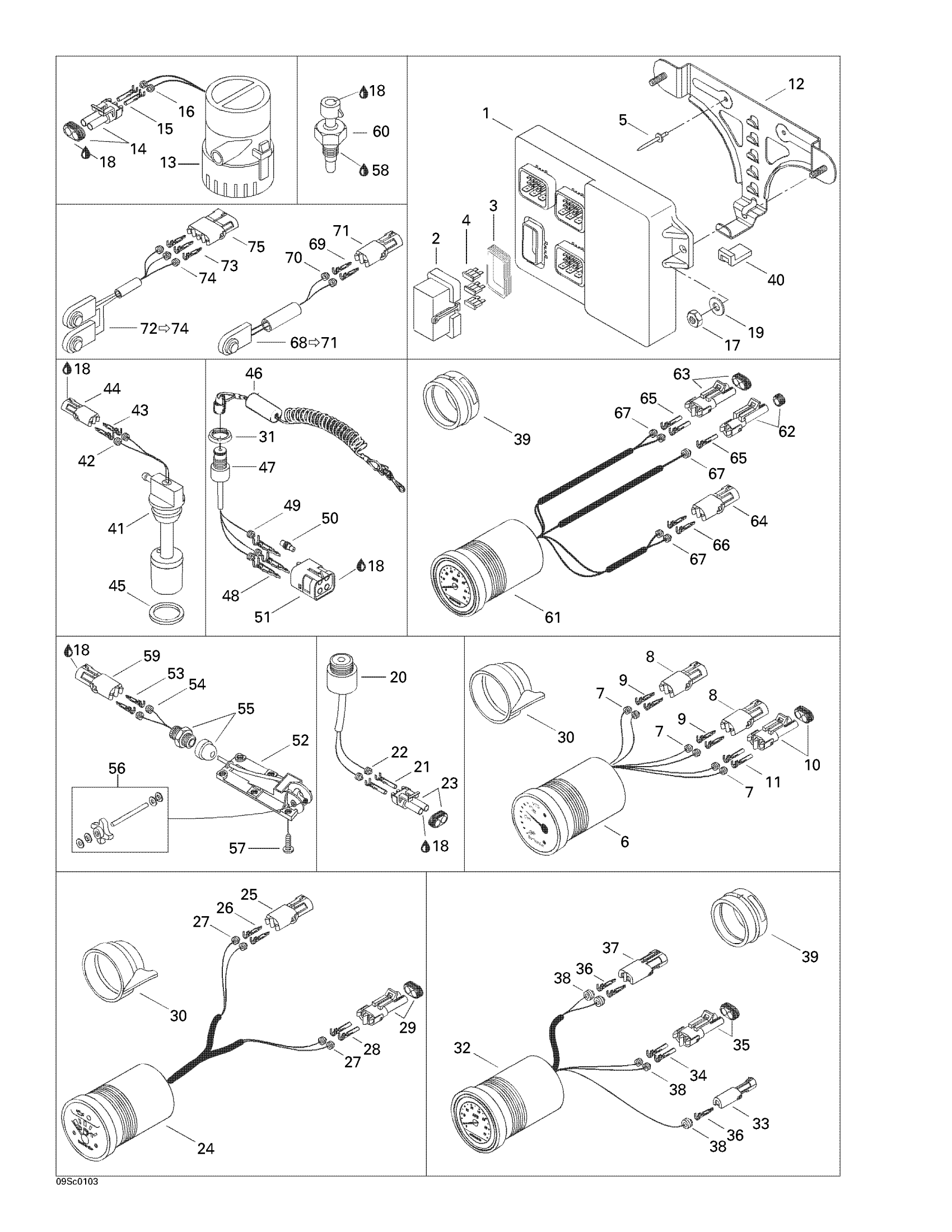

Sea-doo XP, 5530/5531, 2001 Electronic Module And Electrical Accessories Diagram

#

Description
Price

1

ELECTRONIC MODULE - Call your local BRP dealership | Includes 1 - 4.

278001526

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

3

Cover Seal

278001070

Unavailable

4

Fuse, 15 Amperes

278000343

$3.12

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

Fuse, 5 Amperes | CE

278000344

$3.12

5

Pop Rivet 3/16"

293150039

$1.31

6

VTS Gauge | Includes 6 - 11.

278001339

Unavailable

7

Wire Seal

278000218

$4.00

8

Female Housing, 2 Circuits

278000217

$8.72

9

Male Terminal | XT Models

278000222

$2.93

10

Male Connector, 2 Circuits

278000220

$12.66

11

Female Terminal

278000223

$2.93

12

Module Support Ass'y

291001194

Unavailable

13

BILGE PUMP - Call your local BRP dealership | Includes 22 to 25

278001176

Unavailable

14

Male Connector, 2 Circuits

278000220

$12.66

15

Female Terminal

278000223

$2.93

16

Wire Seal

278000218

$4.00

17

Hex. Elastic Stop Nut M6

232561600

$1.06

18

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

19

Flat Washer M6, Stainless

234062600

$0.73

20

Buzzer Ass'y | Includes 11 - 14.

278000978

Unavailable

21

Female Terminal

278000223

$2.93

22

Wire Seal

278000218

$4.00

23

Male Connector, 2 Circuits

278000220

$12.66

24

Fuel/Oil Gauge | Includes 24 - 29.

278001389

Unavailable

25

Female Housing, 2 Circuits

278000217

$8.72

26

Male Terminal | XT Models

278000222

$2.93

27

Wire Seal

278000218

$4.00

28

Female Terminal

278000223

$2.93

29

Male Connector, 2 Circuits

278000220

$12.66

30

GAUGE SUPPORT - Call your local BRP dealership

293720005

Unavailable

31

Safety Nut (DESS Switch)

278002963

$3.12

32

Speedometer | Includes 32 - 38.

278001340

Unavailable

33

Female Housing, 1 Circuit

278000161

$8.72

34

Female Terminal

278000223

$2.93

35

Male Connector, 2 Circuits

278000220

$12.66

36

Male Terminal | XT Models

278000222

$2.93

37

Female Housing, 2 Circuits

278000217

$8.72

38

Wire Seal

278001065

$5.85

39

Gauge Support

293720047

Unavailable

40

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

41

Oil Sensor | Includes 44 to 48

278001402

Unavailable

42

Wire Seal

278000218

$4.00

43

Male Terminal | XT Models

278000222

$2.93

44

Female Housing, 2 Circuits

278000217

$8.72

45

Grommet

293720008

$12.52

46

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

Unavailable

47

Safety Switch | Includes 15 - 19.

278000977

Unavailable

48

Male Terminal | XT Models

278000222

$2.93

49

Wire Seal

278000218

$4.00

50

Wire Seal

278000216

$2.93

51

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

52

Speed Sensor | GTI LE / Includes 13 to 14

278001668

Unavailable

53

Not Available As Spare Part - Friction Washer

Unavailable

54

Not Available As Spare Part - Friction Washer

Unavailable

55

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

56

Paddle Wheel Kit

295500108

Unavailable

57

Phillips Screw M5 x 12

250000319

$1.18

58

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

59

Female Housing, 2 Circuits

278000217

$8.72

60

Temperature Sensor

278002895

$36.54

61

Tachometer | Includes 61 - 67.

278001381

Unavailable

62

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

63

Male Connector, 2 Circuits

278000220

$12.66

64

Female Housing, 2 Circuits

278000217

$8.72

65

Female Terminal

278000223

$2.93

66

Male Terminal | XT Models

278000222

$2.93

67

Wire Seal

278000218

$4.00

68

Ignition Switch Ass'y (Stop / Start) | Includes 27 - 30.

278001358

Unavailable

69

Male Terminal | XT Models

278000222

$2.93

70

Wire Seal

278000218

$4.00

71

Female Housing, 2 Circuits

278000217

$8.72

72

VTS Switch | Includes 53 - 55.

278001533

Unavailable

73

Male Terminal | XT Models

278000222

$2.93

74

Wire Seal

278000218

$4.00

75

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31
