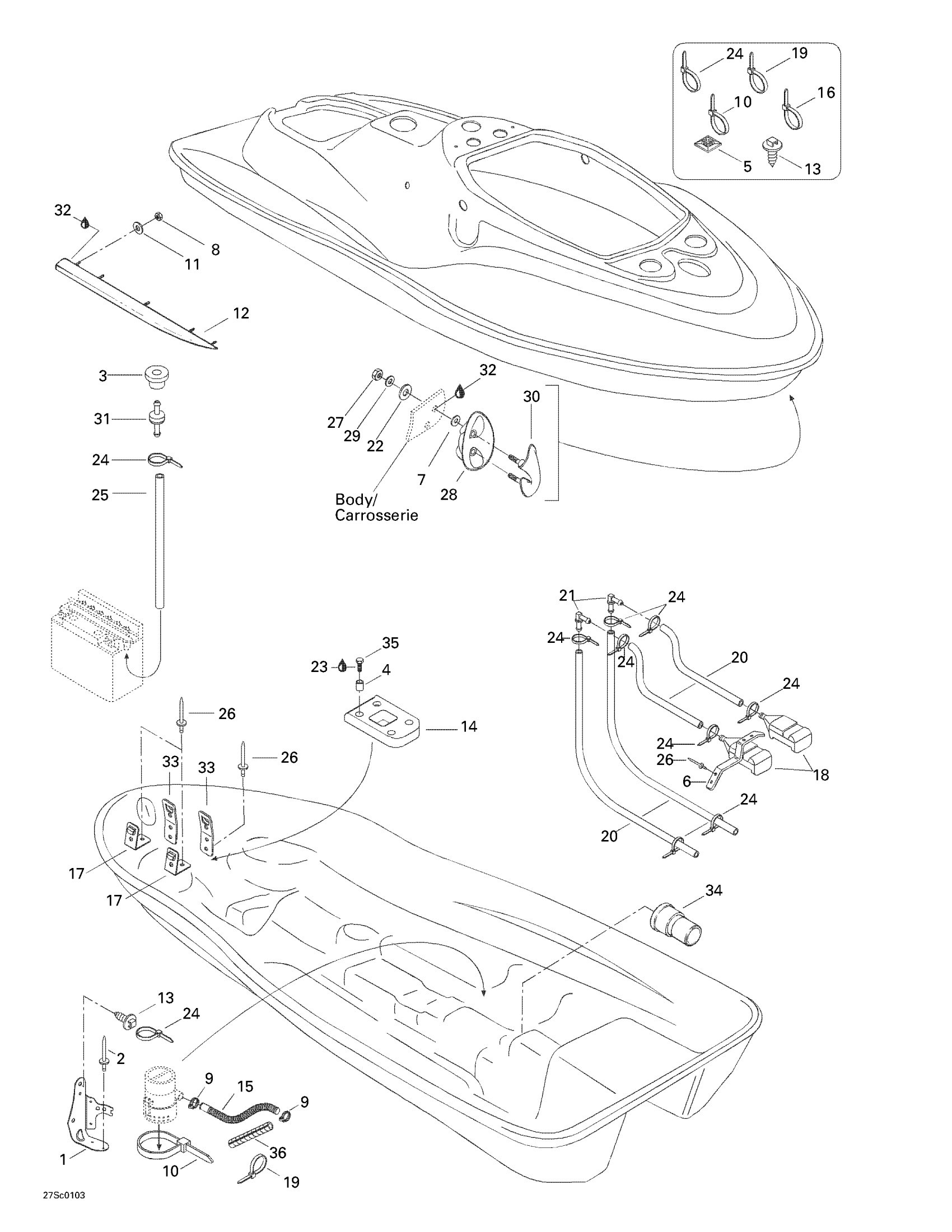

Sea-doo XP, 5530/5531, 2001 Hull Diagram

#

Description
Price

1

BILGE SUPPORT - Call your local BRP dealership

271000897

Unavailable

2

Pop-Rivet 5/32

293150059

$0.51

3

Grommet

293720029

$1.30

4

Sleeve

292000528

Unavailable

5

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

6

LH SPRING CLIP - Call your local BRP dealership

292000398

Unavailable

7

Stainless, Flat Washer 8 mm

234081600

$0.52

8

Hex. Elastic Stop Nut M6

232561600

$1.06

9

Tridon Gear Clamp

293650172

$3.07

10

Tie Wrap 368 mm

293750008

$0.97

11

Flat Washer M6, Stainless

234062600

$0.73

12

RH SPONSON - Call your local BRP dealership

292000411

Unavailable

LH SPONSON - Call your local BRP dealership

292000412

Unavailable

13

Mount Dart

293730040

$0.99

14

Foam Pad

292000629

Unavailable

15

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

16

Tie-Rap 180 mm

414115200

$0.10

17

STRAP CLIP - Call your local BRP dealership

293850075

Unavailable

18

Bailer Screen

292000688

Unavailable

19

Tie Wrap 142 mm

293750002

$1.01

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$31.31

21

ELBOW FITTING 90 - Call your local BRP dealership

293710057

Unavailable

22

Rubber Washer

293830037

$2.68

23

Loctite 271, 10 ml

293800005

$23.85

24

Tie Wrap 94 mm | 4X4

293750001

$0.96

25

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

26

Avdel Rivet 3/16"

293150037

$0.54

27

Hex. Elastic Nut M8

232581600

$1.43

28

Black Shell

292001837

$17.13

29

Flat Washer 8 mm, Stainless

250200175

$1.48

30

Eye-Bow (Black) This part replaces 292000708.

292000452

$38.03

31

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

32

Silicone Sealant 51388, 300 ml

296000309

$36.99

33

Strap Clip

293850030

$10.30

34

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable

35

Hex. Screw 10-14 X 7/8”

211000023

$3.34

36

Tubing 25 MM 1000MM Long

219704402

$14.57
