1983 Suzuki XN85-D Rear Calipers Diagram

← All diagrams

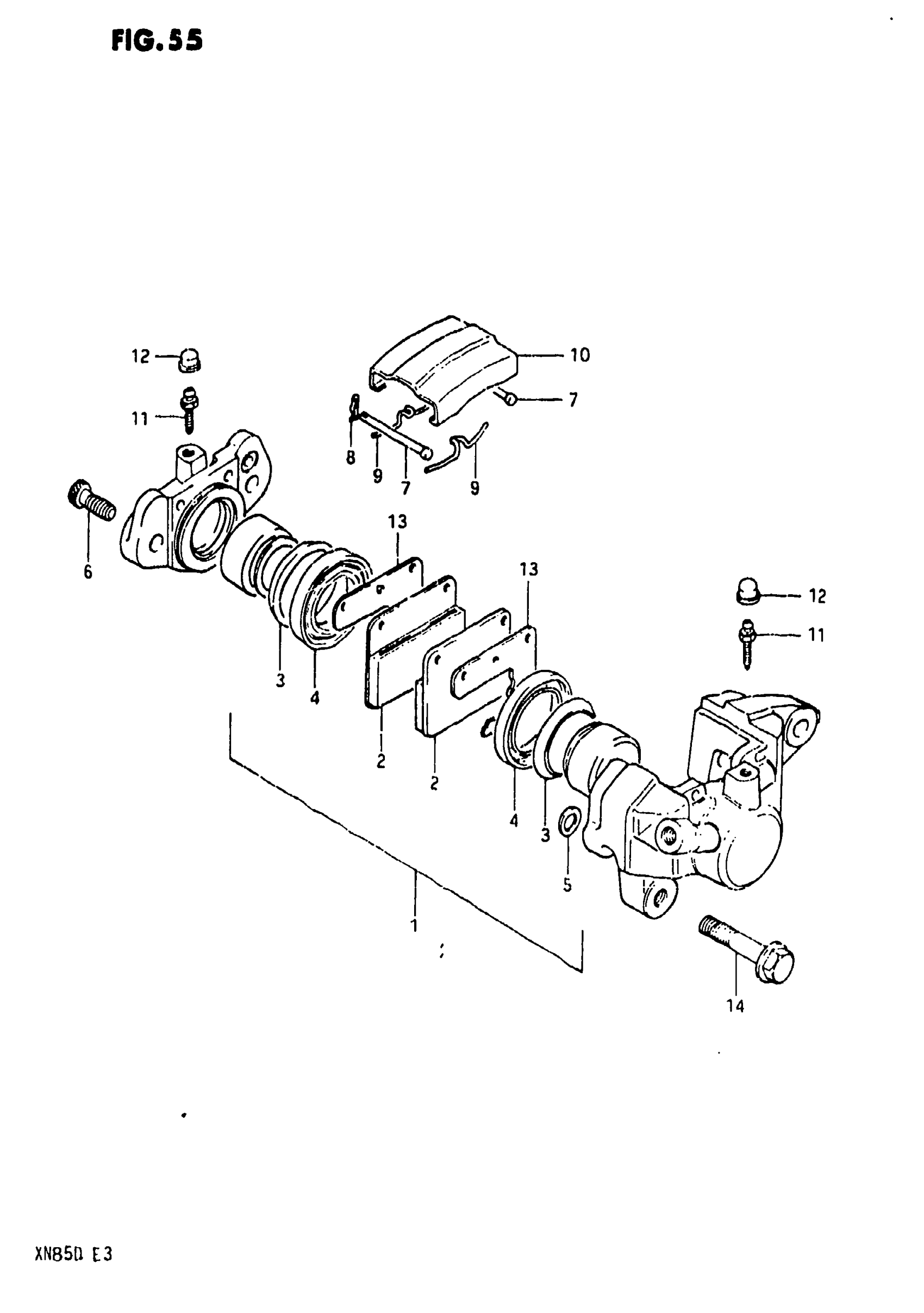

Find the part on the Rear Calipers diagram for your 1983 Suzuki XN85-D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki XN85-D Rear Calipers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

CALIPER ASSY, R | Includes Item(s) 1 - 13 This part replaces 69100-45021.

69100-08C00-999

1
Out of stock

1

PISTON SET This part replaces 69100-45860.

69100-08821

1
Out of stock

2

PAD SET This part replaces 69130-45021.

69101-45850-XNA

2
Out of stock

3

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

2
Out of stock

4

BOOT, PISTON

69108-45000

1
Out of stock

5

SEAL, PISTON

69107-45000

1
Out of stock

6

BOLT, HOUSING

69145-45000

2
Out of stock

7

PIN

69141-45000

2
Out of stock

8

.CLIP, PAD PIN

69142-45000

2
Out of stock

9

SPRING

69143-45001

2
Out of stock

10

DUST COVER

69151-45000

1
Out of stock

11

BREATHER, NO.1

59121-18410

2
Out of stock

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

2
Out of stock

13

SHIM

69152-45001

2
Out of stock

14

BOLT, RH This part replaces 01527-10308.

01550-10307

2
Out of stock
