1983 Suzuki XN85-D Gear Shifting Diagram

← All diagrams

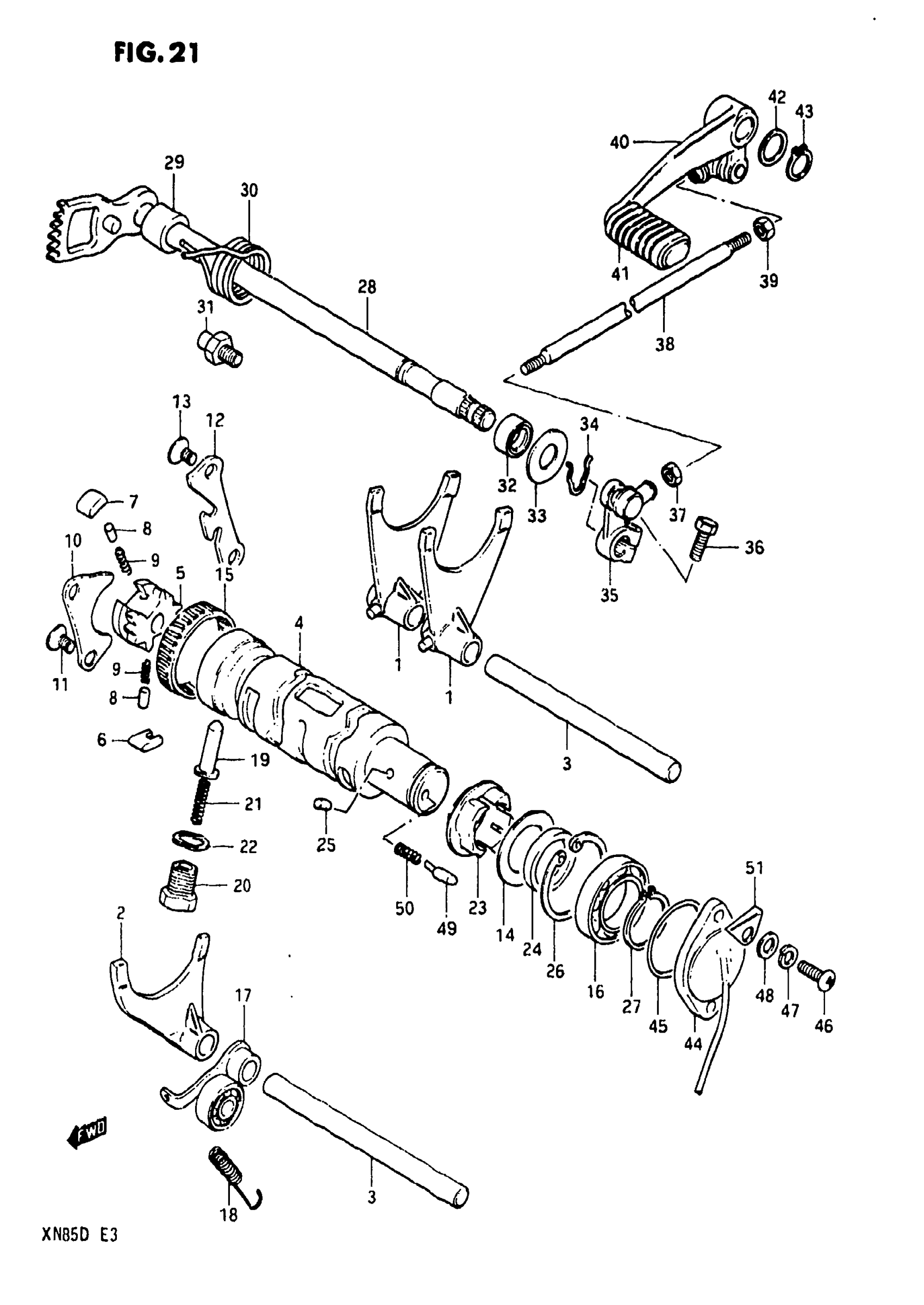

Find the part on the Gear Shifting diagram for your 1983 Suzuki XN85-D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki XN85-D Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFTING

25211-09300

2
Out of stock

2

FORK, GEAR SHIFTING

25231-09300

1
Out of stock

3

NO DESCRIPTION AVAILABLE This part replaces 25411-09300.

25411-15510

2
Out of stock

4

CAM, GEAR SHIFTING

25310-09302

1
Out of stock

5

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

1
Out of stock

6

PAWL, GEAR SHIFT NO.1 This part replaces 25323-11000.

25323-34201

1
Out of stock

7

PAWL, GEAR SHIFT NO.2 This part replaces 25324-11000.

25324-34201

1
Out of stock

8

PIN

09261-05003

2
Out of stock

9

SPRING

09440-04003

2
Out of stock

10

LIFTER, PAWL

25331-09300

1
Out of stock

11

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

12

GUIDE, CAM

25341-09300

1
Out of stock

13

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

14

WASHER, SUB T/M DRIVE This part replaces 08211-25401.

09181-25251

1
Out of stock

15

BEARING, RH

09263-43001

1
Out of stock

16

BEARING This part replaces 08110-69050.

08113-69050

1
Out of stock

17

STOPPER, CAM

25350-09301

1
Out of stock

18

SPRING

09443-08019

1
Out of stock

19

STOPPER, CAM

25351-09300

1
Out of stock

20

HOLDER, STOPPER

25354-30000

1
Out of stock

21

SPRING

09440-06020

1
Out of stock

22

GASKET

09168-14004

1
Out of stock

23

PLATE, STOPPER

25381-49200

1
Out of stock

24

SPACER

09180-25061

1
Out of stock

25

PIN This part replaces 06211-04063.

04221-04069

1
Out of stock

26

CIRCLIP This part replaces 08331-41428.

08331-41429

1
Out of stock

27

CIRCLIP, REAR FINAL DRIVE This part replaces 08331-31258.

08331-31256

1
Out of stock

28

SHAFT, GEAR SHIFTING

25510-09300

1
Out of stock

29

SPACER

09180-12068

1
Out of stock

30

SPRING

09444-26013

1
Out of stock

31

STOPPER, ARM This part replaces 25671-01000.

25671-01011

1
Out of stock

32

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

33

WASHER (12.5X26X1.6) This part replaces 09160-12020.

09160-12089

1
Out of stock

34

CIRCLIP This part replaces 09384-12001.

08331-3112A

1
Out of stock

35

ARM,GEAR SHIFT This part replaces 25520-09300.

25520-09302

1
Out of stock

36

BOLT This part replaces 01107-06208.

01500-06207

1
Out of stock

37

.NUT This part replaces 08310-11068.

08310-00067

1
Out of stock

38

ROD

25525-09300

1
Out of stock

39

NUT, L

09140-06011

1
Out of stock

40

LEVER ASSY, GEAR SHIFTING | Includes Item(s) 41

25600-09302

1
Out of stock

41

COVER

25652-49300

1
Out of stock

42

WASHER

09160-12011

1
Out of stock

43

CIRCLIP This part replaces 08331-31128.

08331-3112A

1
Out of stock

44

BODY, GEAR SHIFTING SWITCH

37720-09300

1
Out of stock

45

O RING

09280-36001

1
Out of stock

46

SCREW This part replaces 02112-05128.

02112-05127

2
Out of stock

47

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

48

WASHER This part replaces 08322-21058.

08322-01057

2
Out of stock

49

CONTACT

09209-05011

1
Out of stock

50

SPRING

09440-04010

1
Out of stock

51

CLAMP, LEAD WIRE

36651-09300

1
Out of stock
