1983 Suzuki XN85-D Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 1983 Suzuki XN85-D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

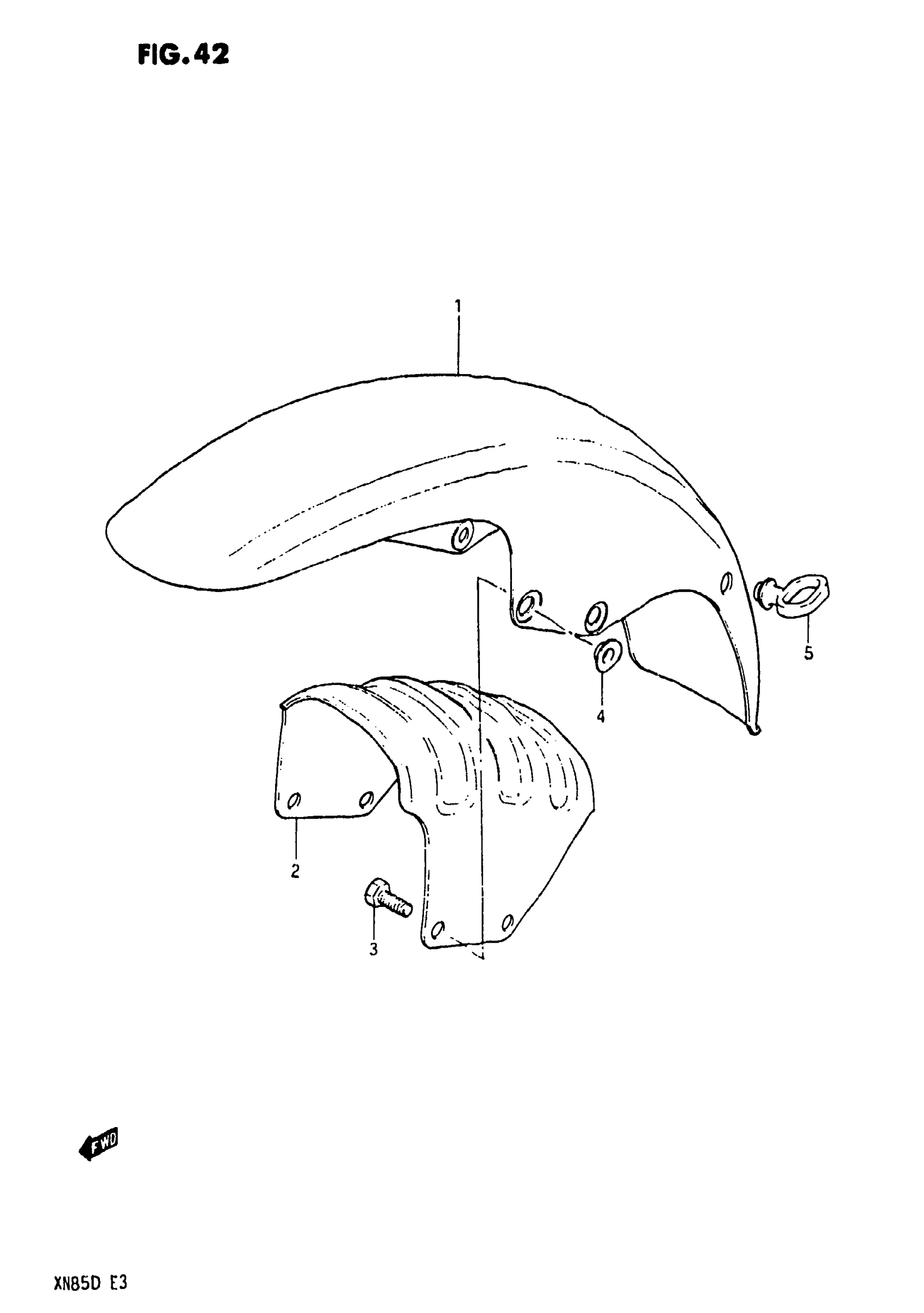

1983 Suzuki XN85-D Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 53111-09300-15K.

53111-09300-13L

1
Out of stock

2

BRACE, FRONT FENDER

53114-09300

1
Out of stock

3

BOLT,TRIM TAB This part replaces 09100-08135.

09100-08215

4
Out of stock

4

WASHER

09169-08032

4
Out of stock

5

GUIDE, METER CABLE This part replaces 58621-21203.

58621-21204

1
Out of stock
← Frame Cover Rear Fender →

More Body & Frame diagrams
