1990 Yamaha XL-V (XL540P) Control - Cable Diagram

← All diagrams

Find the part on the Control - Cable diagram for your 1990 Yamaha XL-V (XL540P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

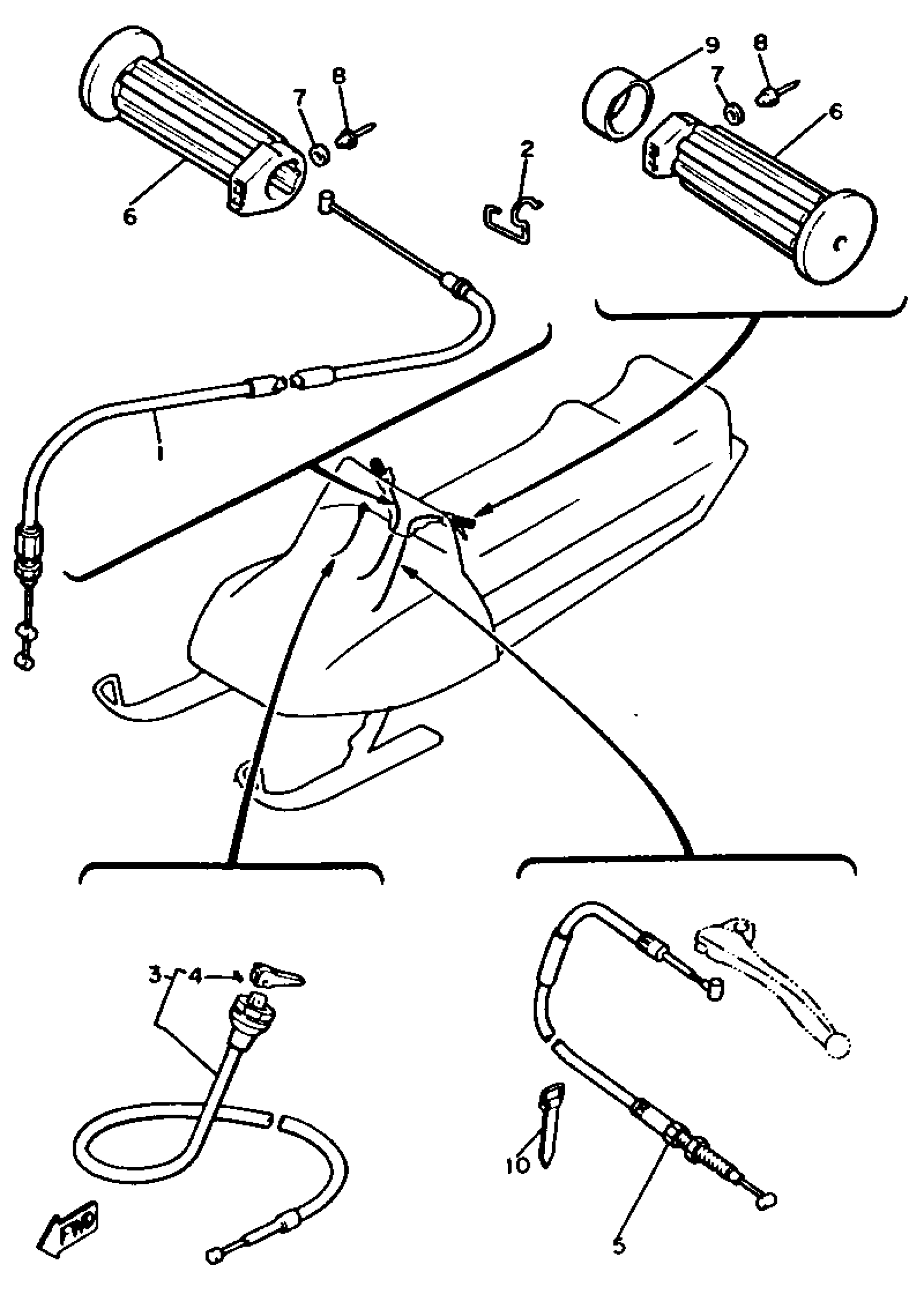

1990 Yamaha XL-V (XL540P) Control - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, THROTTLE 1

8Y0-26311-00-00

1
Out of stock

2

CLAMP (8X0)

90465-10189-00

1

$2.57

In stock

3

CABLE, STARTER 1

8Y7-26331-00-00

1
Out of stock

4

PIN, SPRING (663)

91690-30010-00

1

$5.46

In stock

5

CABLE, BRAKE

8K4-26340-00-00

1
Out of stock

6

88T GRIP BLACK 1 PC

88T-26240-85-BK

1
Out of stock

7

WASHER, PLAIN

80Y-23843-00-00

1
Out of stock

8

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

9

COLLAR

90387-22726-00

1
Out of stock

10

BAND

341-26397-01-00

1
Out of stock
