1987 Yamaha XLV (XL540L) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1987 Yamaha XLV (XL540L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

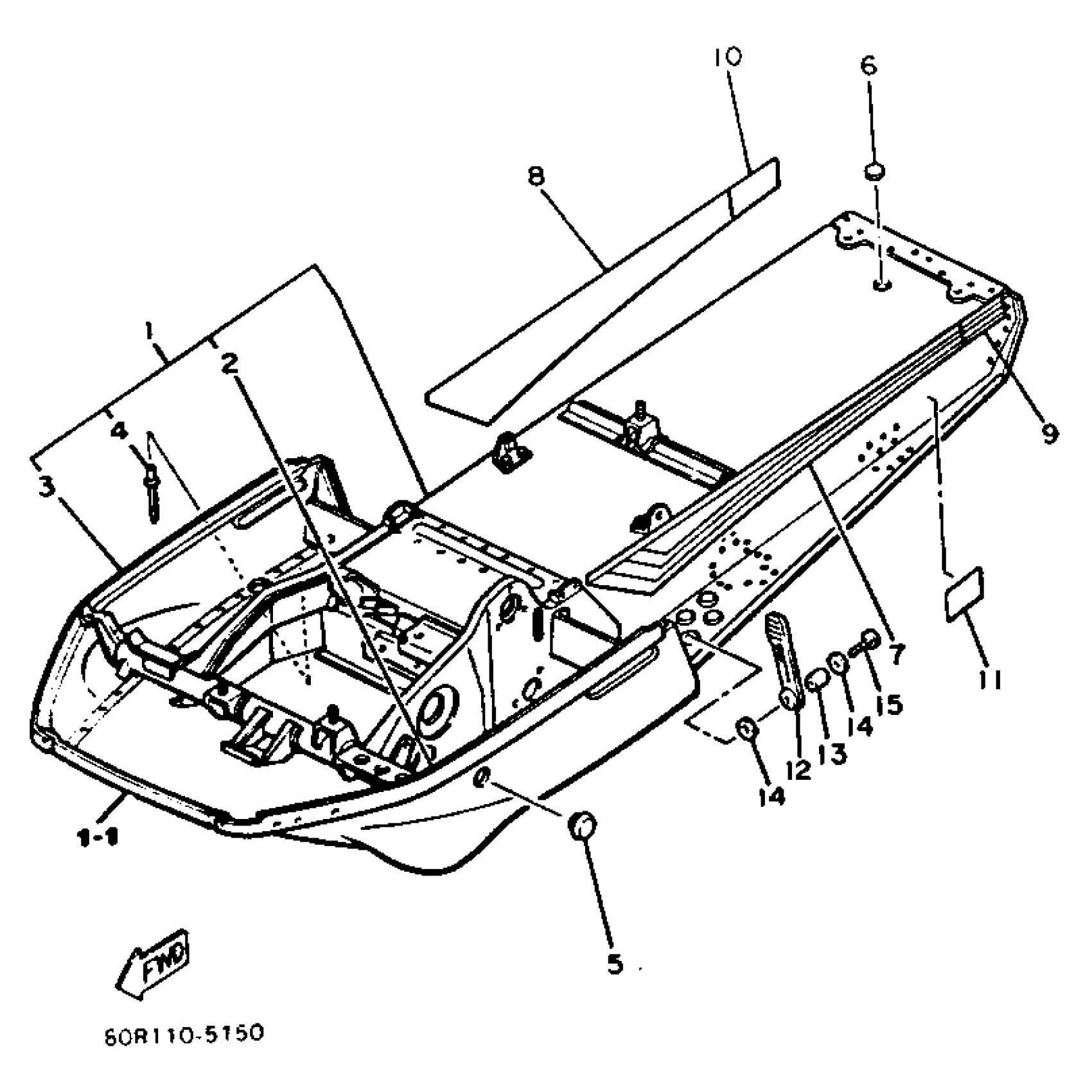

1987 Yamaha XLV (XL540L) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

82V-21910-00-00

1
Out of stock

1

. BELLY PAN

8Y7-21912-09-00

1
Out of stock

2

. HOOD 1

82V-21982-00-00

1
Out of stock

3

. HOOD 2

82V-21983-00-00

1
Out of stock

4

RIVET, BLIND (8H4)

90267-48053-00

1

$2.31

In stock

5

PLUG (8K4)

90338-40099-00

1

$11.89

In stock

6

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

7

UNAVAILABLE IN PRICE BOOK

82-V7735-20-00

1
Out of stock

8

UNAVAILABLE IN PRICE BOOK

82-V7735-30-00

1
Out of stock

9

EMBLEM 4

(82V-77354-00-00)

1
Out of stock

10

EMBLEM 5

82V-77355-00-00

1
Out of stock

11

INDICATOR 2

8K2-77742-00-00

1
Out of stock

12

BODY, LATCH 1

8M6-77171-00-00

1
Out of stock

13

COLLAR (420)

90387-06241-00

1

$6.18

In stock

14

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

15

SCREW, BINDING

98907-06025-00

—

$6.18

In stock
