1985 Yamaha XL-V (XL540J) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1985 Yamaha XL-V (XL540J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

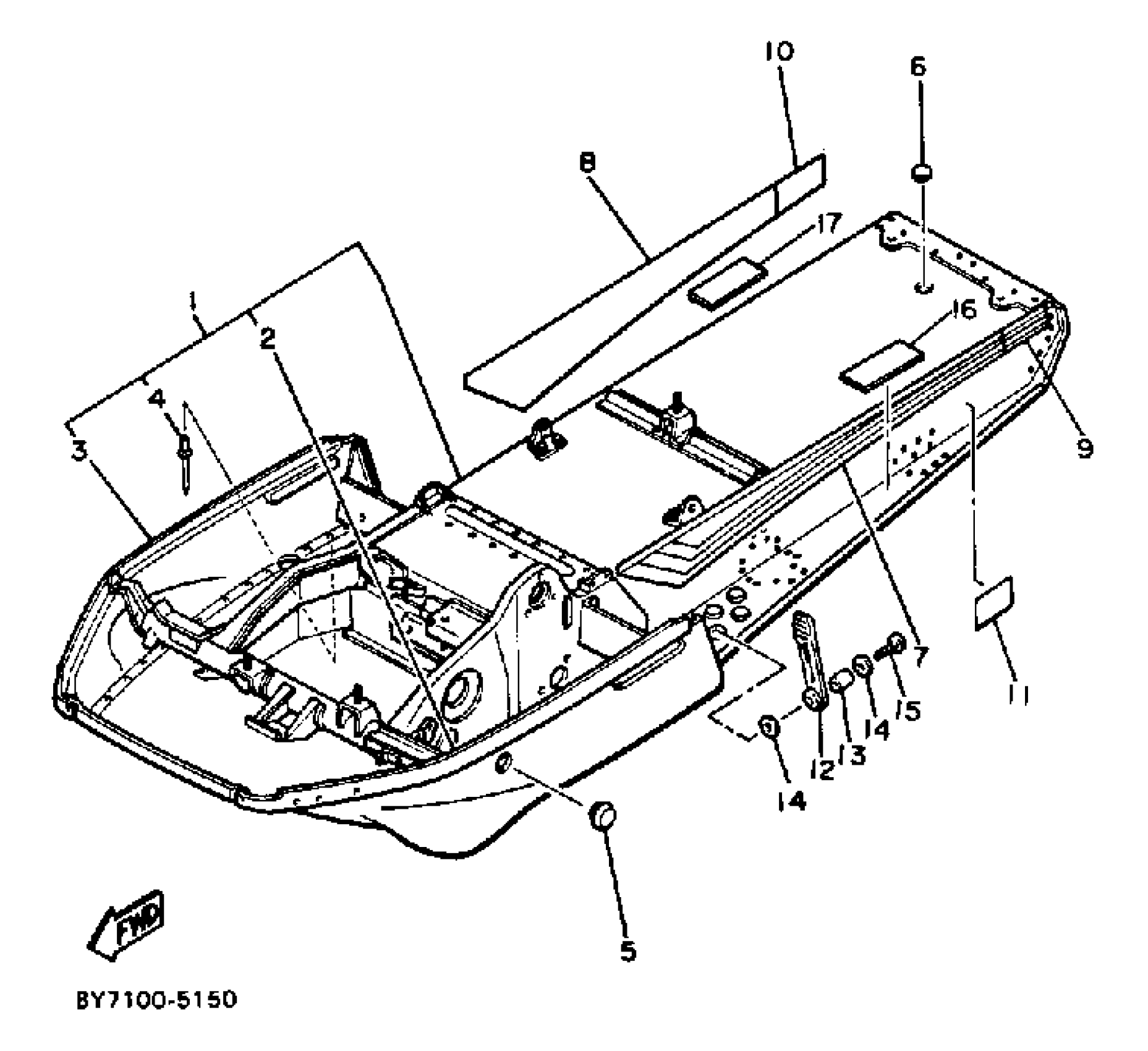

1985 Yamaha XL-V (XL540J) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP

86K-21910-00-00

1
Out of stock

2

. HOOD 1

8Y7-21982-00-00

1
Out of stock

3

. HOOD 2

8Y7-21983-00-00

1
Out of stock

4

RIVET, BLIND (8H4)

90267-48053-00

1

$2.31

In stock

5

PLUG (8K4)

90338-40099-00

1

$11.89

In stock

6

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

7

EMBLEM 2

(8Y7-77352-00-00)

1
Out of stock

8

EMBLEM 3

(8Y7-77353-00-00)

1
Out of stock

9

EMBLEM 4

8Y7-77354-00-00

1
Out of stock

10

EMBLEM 5

8Y7-77355-00-00

1
Out of stock

11

INDICATOR 2

8K2-77742-00-00

1
Out of stock

12

BODY, LATCH 1

8M6-77171-00-00

1
Out of stock

13

COLLAR (420)

90387-06241-00

1

$6.18

In stock

14

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

15

SCREW, BINDING

98907-06025-00

1

$6.18

In stock

16

COVER, RR FOOTREST

8Y7-27433-00-00

1
Out of stock

17

COVER, RR FOOTREST

(8Y7-27444-00-00)

1
Out of stock
