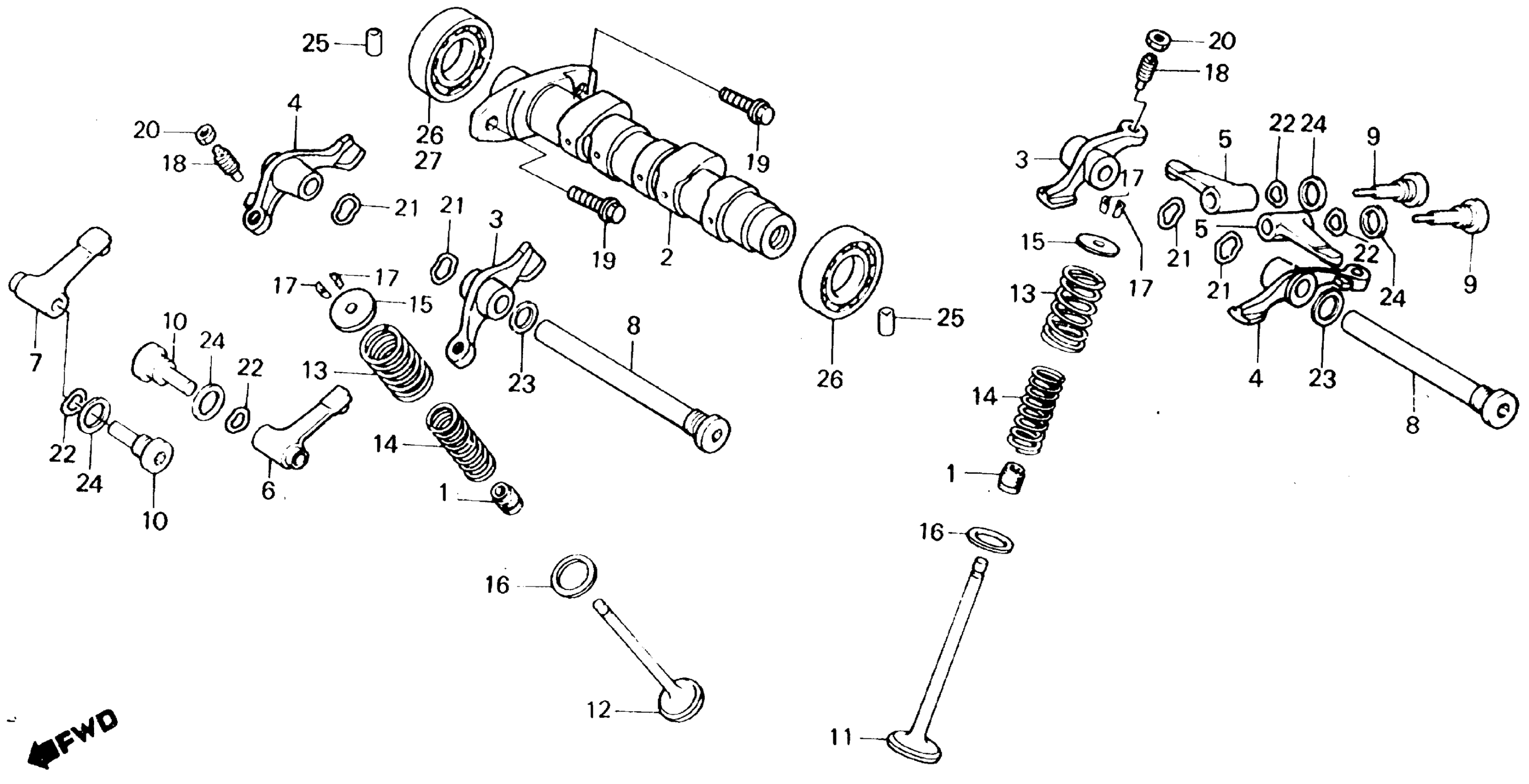

Honda XL250RA (85) MOTORCYCLE, JPN, VIN# JH2MD110-FK100003 TO JH2MD110-FK104428 CAMSHAFT Diagram

#

Description
Price

1

SEAL, VALVE STEM

12209-KL4-005

$7.78

2

CAMSHAFT | Use up to Engine SN 5104517 This part replaces 14100-KL4-670.

14100-KS5-000

Unavailable

2

CAMSHAFT This part replaces 14100-KL4-671.

14100-KS5-000

Unavailable

2

CAMSHAFT

14100-KS5-000

Unavailable

3

ARM A, ROCKER (NOT AVAILABLE) This part replaces 14431-KK0-000.

14431-KK0-010

Unavailable

3

ARM A, ROCKER

14431-KK0-010

Unavailable

4

ARM B, ROCKER This part replaces 14441-KK0-000.

14441-KK0-010

Unavailable

4

ARM B, ROCKER

14441-KK0-010

Unavailable

5

ARM, VALVE SUB-ROCKER IN.

14445-KK0-000

$38.23

6

ARM, EX. VALVE SUB-ROCKER

14446-KK0-000

$28.28

7

ARM B, SUB-ROCKER EX.

14447-KK0-000

$30.32

8

BOLT, ROCKER ARM SHAFT This part replaces 14451-KK0-000.

14451-KK0-010

Unavailable

8

BOLT, ROCKER ARM SHAFT

14451-KK0-010

Unavailable

9

SHAFT A, SUB-ROCKER ARM

14455-KK0-000

Unavailable

10

SHAFT B, SUB-ROCKER ARM This part replaces 14456-KK0-000.

14456-KK0-010

Unavailable

10

SHAFT B, SUB-ROCKER ARM

14456-KK0-010

Unavailable

11

VALVE, IN.

14711-KK1-000

$44.77

12

VALVE, EX.

14721-KK1-000

Unavailable

13

SPRING, VALVE (OUTER)

14751-KK0-003

$12.60

14

SPRING, VALVE (OUTER)

14761-KK0-003

$9.55

15

RETAINER, VALVE SPRING

14771-459-000

Unavailable

16

SEAT, VALVE SPRING (OUTER)

14775-KK0-000

Unavailable

17

COTTER, VALVE

14781-MB4-000

$3.27

18

SCREW, TAPPET ADJ. This part replaces 90012-KF0-000.

90012-415-000

$5.74

18

SCREW, TAPPET ADJ. This part replaces 90012-KF0-003.

90012-415-000

$5.74

18

SCREW, TAPPET ADJ.

90012-415-000

$5.74

19

BOLT, FLANGE KNOCK (7X12)

90081-426-000

Unavailable

20

NUT, TAPPET ADJ.

90206-250-000

$3.07

21

WASHER, ROCKER ARM SIDE WAVE

90405-KF0-003

Unavailable

22

WASHER, SUB-ROCKER ARM SIDE WAVE

90406-KF0-003

$2.92

23

WASHER, SEALING (14MM)

90544-KF0-000

$3.24

24

WASHER (12MM)

90545-KF0-000

$3.02

25

PIN, DOWEL (8X17.5)

90701-KK0-000

$5.96

26

BEARING, RADIAL BALL (6003)

96100-60033-00

Unavailable

27

BEARING, RADIAL BALL (6003Z)

96120-60033-00

Unavailable
