1981 Yamaha XJ750R (XJ750RH) Shift Cam Fork Diagram

← All diagrams

Find the part on the Shift Cam Fork diagram for your 1981 Yamaha XJ750R (XJ750RH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

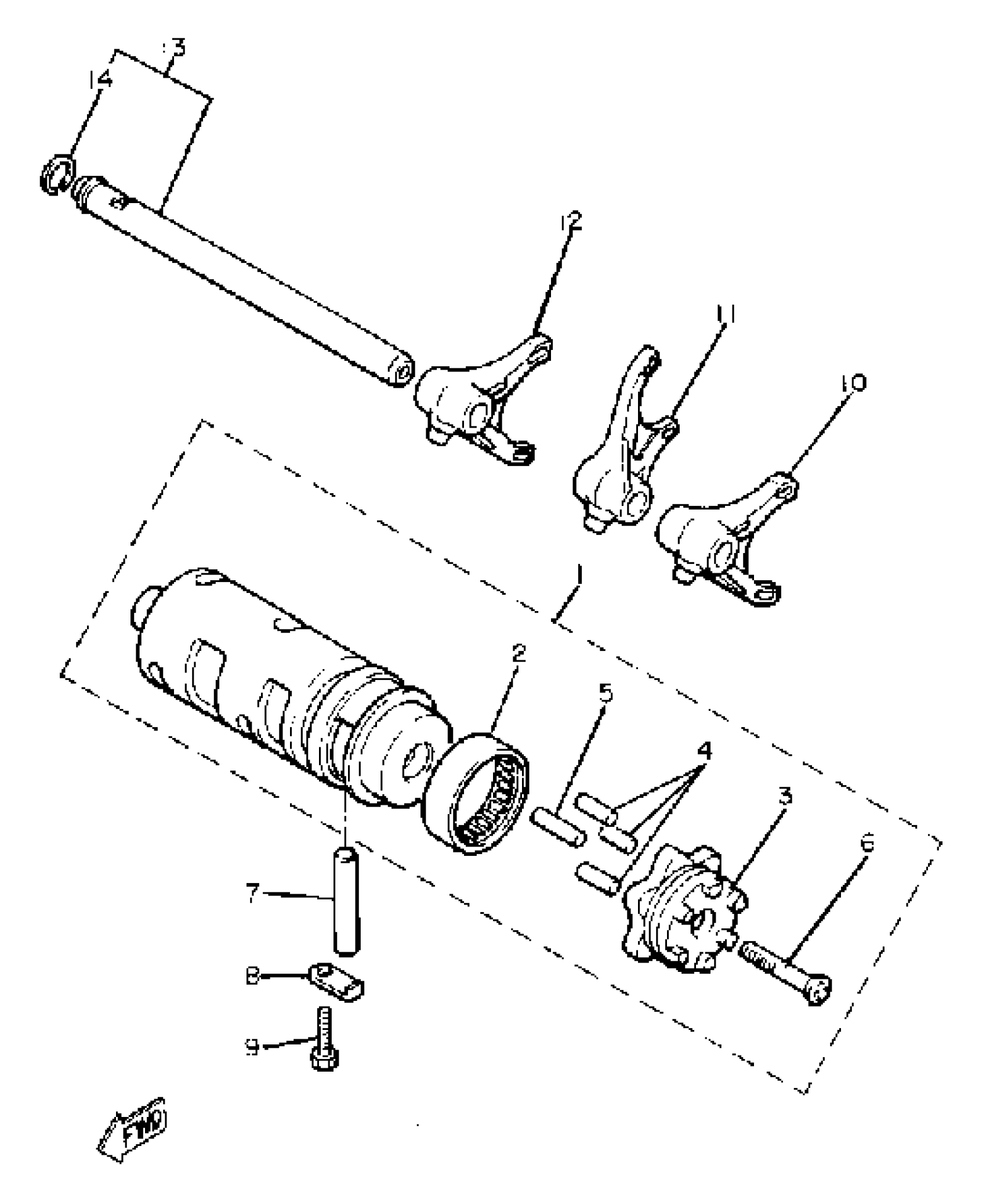

1981 Yamaha XJ750R (XJ750RH) Shift Cam Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSEMBLY

16G-18540-00-00

1
Out of stock

2

BRG,CYL-CAL ROLLER 22G NT

93315-23612-00

1
Out of stock

3

. SEGMENT

16G-18185-00-00

1
Out of stock

4

PIN, DOWEL (409)

93604-16092-00

1
Out of stock

5

PIN, DOWEL (4H7)

93604-20156-00

1
Out of stock

6

SCREW, FLAT

98707-05035-00

1
Out of stock

7

PIN, DOWEL (4H7)

93608-43157-00

1
Out of stock

8

PLATE, STOPPER

2H7-15531-00-00

—
Out of stock

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1
Out of stock

10

FORK, SHIFT 1

4KM-18511-00-00

—
Out of stock

11

FORK, SHIFT 2

4KM-18512-00-00

1
Out of stock

12

FORK, SHIFT 3

4KM-18513-00-00

—
Out of stock

13

BAR, SHIFT FORK GUIDE 1

4KM-18531-00-00

—
Out of stock

14

CIRCLIP 214156170000

93440-11029-00

1
Out of stock
