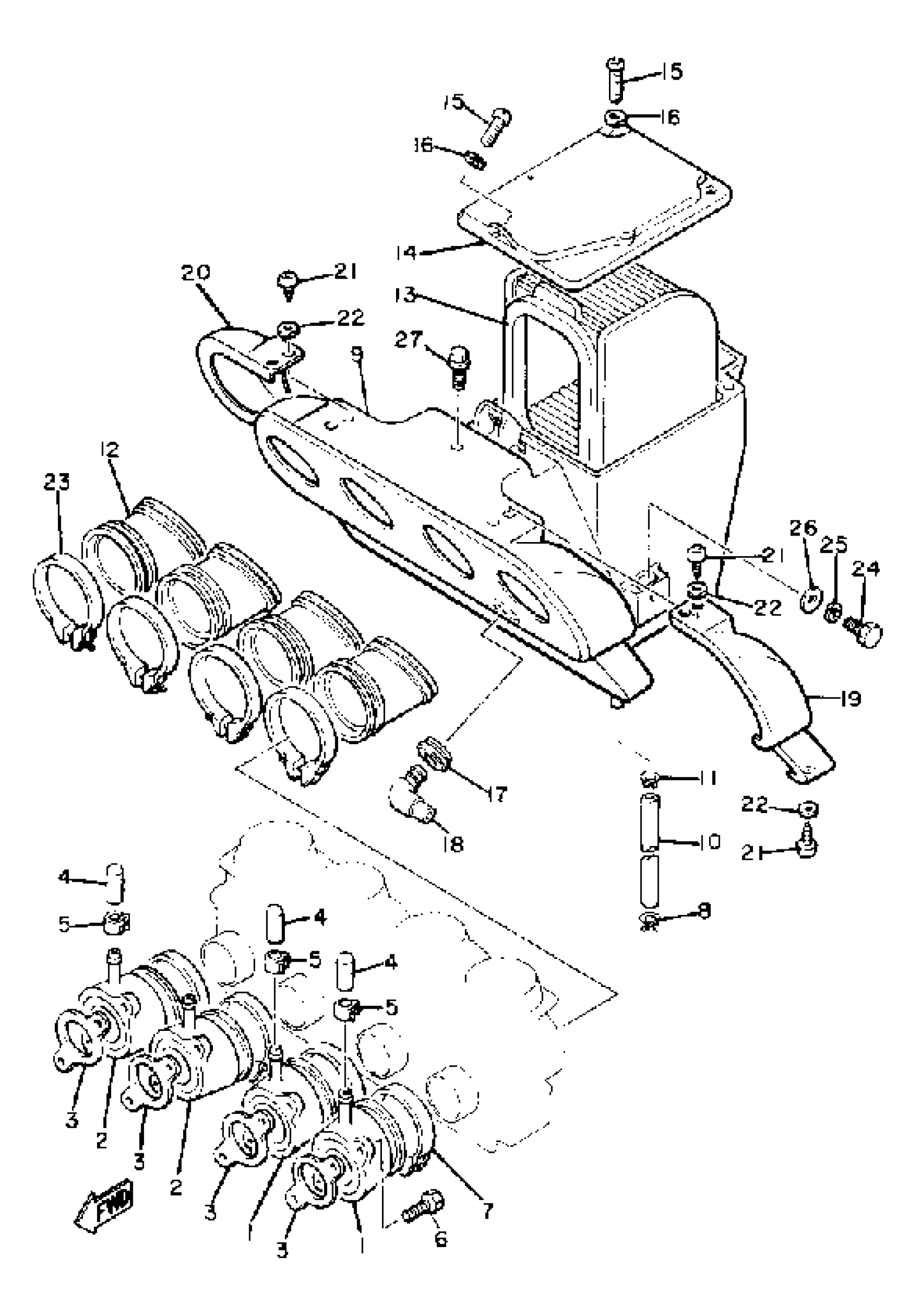

Find the part on the Intake diagram for your 1981 Yamaha XJ750R (XJ750RH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XJ750R (XJ750RH) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

5G2-13586-02-00

1
Out of stock

2

J0INT, CARBURET0R 2

5G2-13596-01-00

1

$129.17

In stock

3

GASKET, MANIFOLD

4H7-13556-11-00

1

$5.93

In stock

4

PLUG, BLIND

16G-13569-00-00

1
Out of stock

5

CLIP (3G0)

90467-10039-00

1
Out of stock

6

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

7

CLAMP, H0SE (29R)

90460-49248-00

1

$20.77

In stock

8

CLIP

90467-090A2-00

1

$2.51

In stock

9

AIR CLNR CASE ASSEMBLY

5G2-14401-00-00

1
Out of stock

10

HOSE (L370)

90445-112E1-00

1

$20.43

In stock

11

CLIP

90467-090A2-00

1

$2.51

In stock

12

JOINT, AIR CLNR 1

5G2-14453-00-00

1
Out of stock

13

ELEMENT, AIR CLEANER

4H7-14451-00-00

1

$46.43

In stock

14

CAP, CLEANER CASE 1

5G2-14412-00-00

1
Out of stock

15

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

16

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

17

GROMMET (4H7)

90480-16278-00

—

$2.62

In stock

18

PIPE

4H7-14419-00-00

1
Out of stock

19

COVER, CLNR CASE 1

5G2-1441A-00-00

1
Out of stock

20

COVER, CLNR CASE 2

5G2-1441E-00-00

1
Out of stock

21

SCREW, TAPPING

97707-50610-00

1
Out of stock

22

WASHER, PLAIN LARGE

92907-05200-00

—
Out of stock

23

HOSE CLAMP ASSY

90450-56001-00

—

$14.77

In stock

24

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

27

BOLT, WITH WASHER (4L6)

90119-06029-00

—

$5.38

In stock
