1986 Yamaha Maxim X CA (XJ700XSC) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1986 Yamaha Maxim X CA (XJ700XSC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

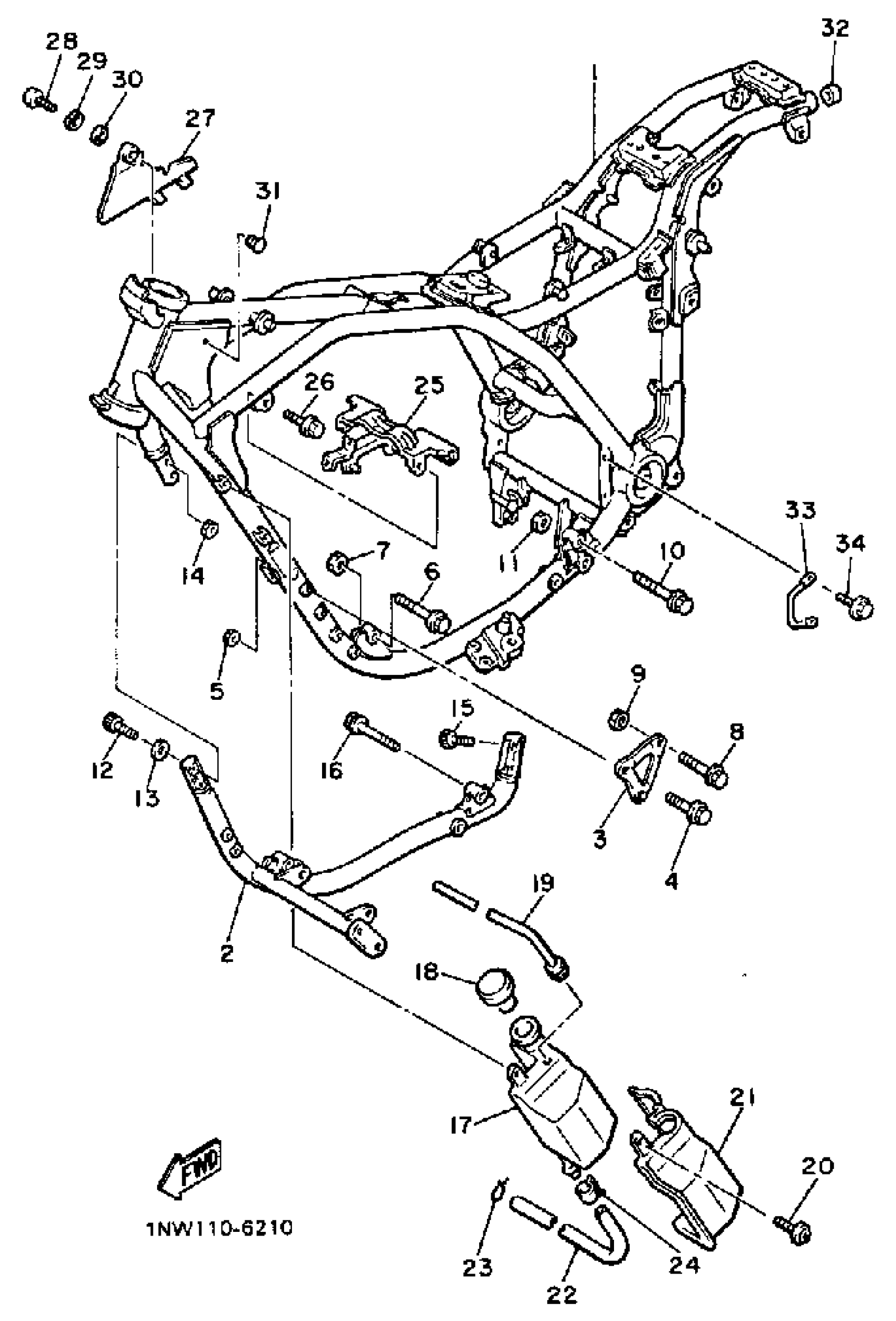

1986 Yamaha Maxim X CA (XJ700XSC) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

1AA-21110-00-33

1
Out of stock

2

TUBE, DOWN

1AA-21140-00-33

1
Out of stock

3

STAY, ENGINE 2

1AA-21315-00-33

1
Out of stock

4

BOLT, WASHER BASED

90105-084A1-00

1

$9.38

In stock

5

NUT(55X)

90179-08491-00

1
Out of stock

6

BOLT, WASHER BASED

90105-10476-00

1
Out of stock

7

NUT

90179-10321-00

1
Out of stock

8

BOLT, WASHER BASED(59V)

90105-10392-00

1

$8.40

In stock

9

NUT

90179-10321-00

1
Out of stock

10

BOLT, WASHER BASED

90105-12274-00

1
Out of stock

11

NUT(3EF)

90179-12657-00

1

$5.32

In stock

12

BOLT, SOCKET

91317-08030-00

1

$6.17

In stock

13

WASHER(6TA)

92907-08600-00

1

$2.52

In stock

14

NUT, U

95617-08100-00

1

$6.78

In stock

15

BOLT, SOCKET

91317-08025-00

1

$6.25

In stock

16

BOLT, WASHER BASED

90105-084A1-00

1

$9.38

In stock

17

TANK, RECOVERY

1AA-21871-00-00

1
Out of stock

18

CAP

1AA-21815-00-00

—

$11.09

In stock

19

PIPE, BREATHER

1AA-21826-00-00

1
Out of stock

20

SCREW, WITH WASHER (517).

90159-06013-00

—

$6.29

In stock

21

COVER 2

1AA-2139R-00-00

1
Out of stock

22

PIPE 1

1AA-21816-00-00

1
Out of stock

23

CLIP

90467-100A1-00

—
Out of stock

24

CLIP(42X)

90467-10091-00

—

$7.03

In stock

25

STAY, HORN

1AA-2134Y-00-00

1
Out of stock

26

BOLT, FLANGE

95817-06010-00

—

$3.91

In stock

27

COVER

1AA-2139W-00-00

1
Out of stock

28

SCREW, PAN HEAD(3TJ)

98507-06016-00

—

$2.43

In stock

29

WASHER, SPRING

92907-06100-00

—
Out of stock

30

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

31

PLUG(1NL)

90338-07180-00

—

$5.68

In stock

32

PLUG

3YJ-24481-00-00

—
Out of stock

33

PROTECTOR

1AA-2117G-00-00

1
Out of stock

34

BOLT, FLANGE(4MY)

95027-06012-00

—

$3.28

In stock
