1986 Yamaha Maxim CA (XJ700SC) Frame Diagram

← All diagrams

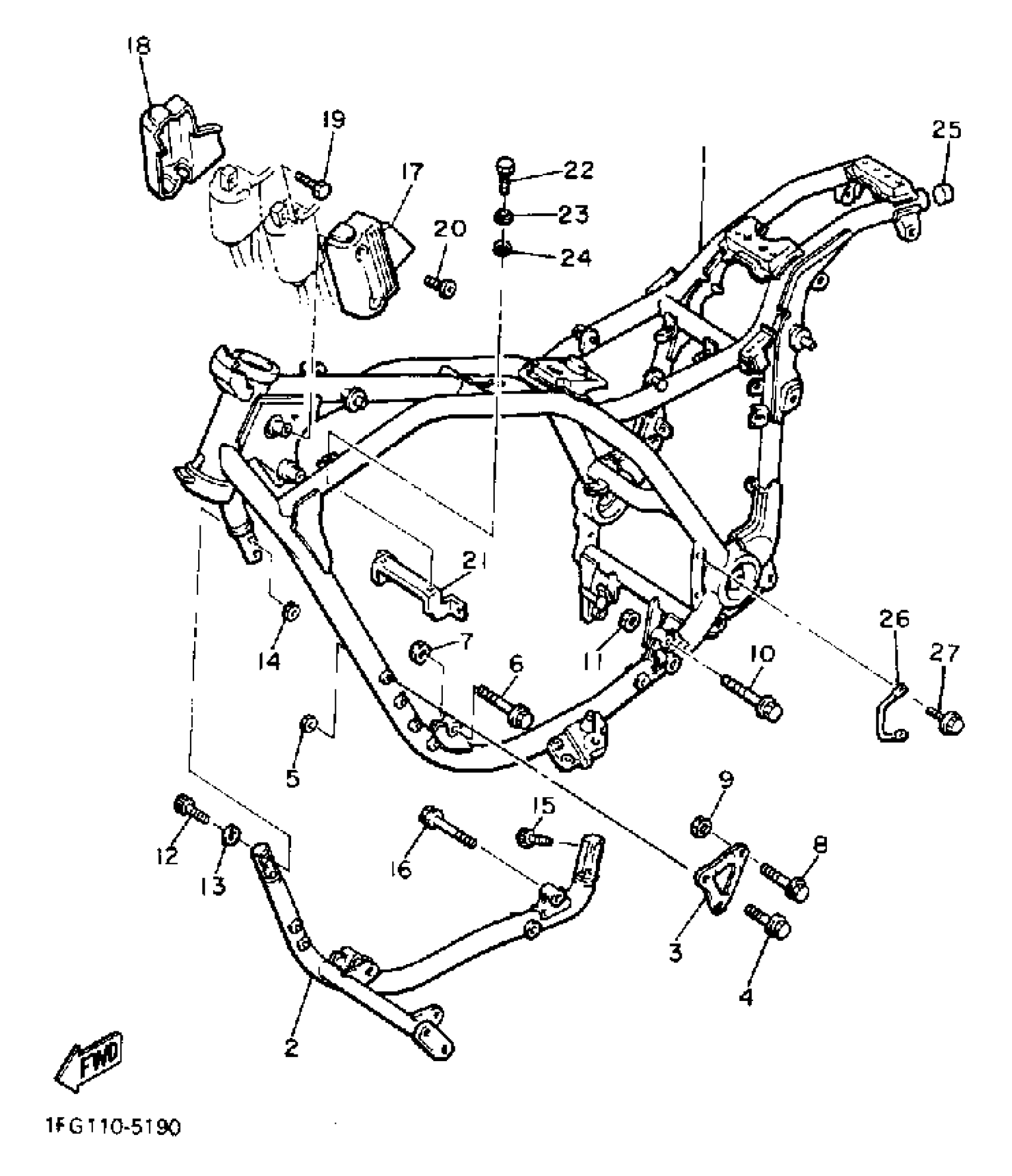

Find the part on the Frame diagram for your 1986 Yamaha Maxim CA (XJ700SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha Maxim CA (XJ700SC) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

1FG-21110-00-33

1
Out of stock

2

TUBE, DOWN

(1FG-21140-00-33)

1
Out of stock

3

STAY, ENGINE 2

1AA-21315-00-33

1
Out of stock

4

BOLT, WASHER BASED

90105-084A1-00

1

$9.38

In stock

5

NUT(55X)

90179-08491-00

1
Out of stock

6

BOLT, WASHER BASED

90105-10476-00

1
Out of stock

7

NUT

90179-10321-00

1
Out of stock

8

BOLT, WASHER BASED(59V)

90105-10392-00

1

$8.40

In stock

9

NUT

90179-10321-00

1
Out of stock

10

BOLT, WASHER BASED

90105-12274-00

1
Out of stock

11

NUT(3EF)

90179-12657-00

1

$5.32

In stock

12

BOLT, SOCKET

91317-08030-00

1

$6.17

In stock

13

WASHER(6TA)

92907-08600-00

1

$2.52

In stock

14

NUT, U

95617-08100-00

1

$6.78

In stock

15

BOLT, SOCKET

91317-08025-00

1

$6.25

In stock

16

BOLT, WASHER BASED

90105-084A1-00

1

$9.38

In stock

17

COVER 2

1FG-2139R-00-00

1
Out of stock

18

COVER

1FG-2139W-00-00

1
Out of stock

19

BOLT

90109-065A6-00

1
Out of stock

20

SCREW, BIND

98903-05010-00

1
Out of stock

21

STAY, HORN

1FG-2134Y-00-00

1
Out of stock

22

BOLT, HEXAGON

97017-08020-00

—
Out of stock

23

WASHER(JN5)

92907-08100-00

—

$5.98

In stock

24

WASHER(6TA)

92907-08600-00

1

$2.52

In stock

25

PLUG

3YJ-24481-00-00

—
Out of stock

26

PROTECTOR

1AA-2117G-00-00

1
Out of stock

27

BOLT, FLANGE(4MY)

95027-06012-00

—

$3.28

In stock
