1986 Yamaha Maxim CA (XJ700SC) Carburetor Diagram

← All diagrams

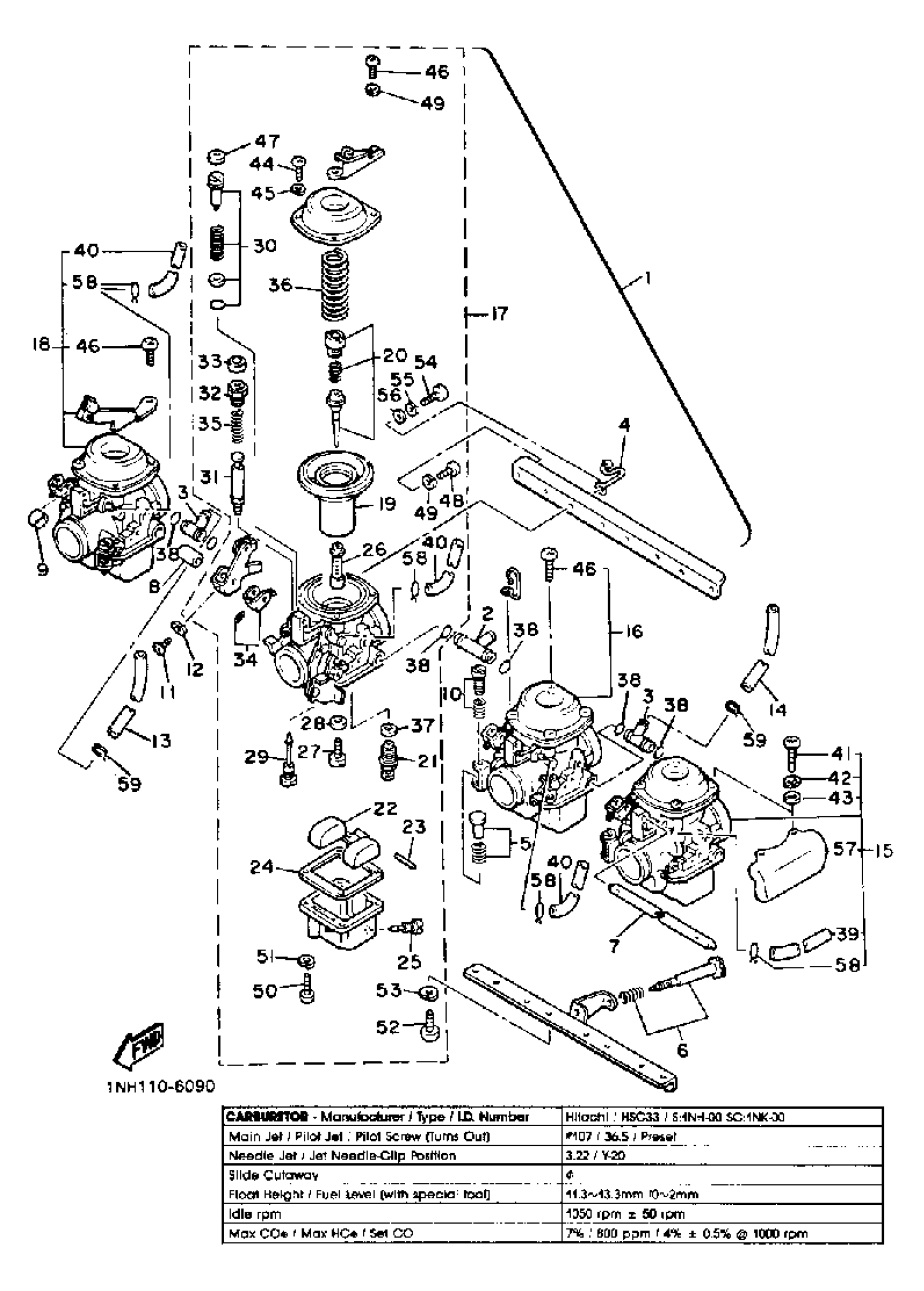

Find the part on the Carburetor diagram for your 1986 Yamaha Maxim CA (XJ700SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha Maxim CA (XJ700SC) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

1N-H1490-00-0]

1
Out of stock

1

UNAVAILABLE IN PRICE BOOK

1N-K1490-00-0]

1
Out of stock

2

CONNECTOR

(29R-1410G-00-00)

1
Out of stock

3

CONNECTOR

(29R-1410F-00-00)

1
Out of stock

4

. CLIP

4H7-14919-00-00

1
Out of stock

5

. THROTTLE ADJUST SCREW 2 SET 2

5G2-W1492-00-00

1
Out of stock

6

. THROTTLE ADJUST SCREW 3 SET 3

5G2-W1493-00-00

1
Out of stock

7

ROD, STARTER LEVER

(29R-14177-00-00)

1
Out of stock

8

PIPE

(29R-14149-00-00)

1
Out of stock

9

. WASHER

4H7-14973-00-00

1
Out of stock

10

. THROTTLE ADJUST SCREW 1 SET 1

5G2-W1491-00-00

1
Out of stock

11

SCREW, PAN HEAD

98507-03016-00

—
Out of stock

12

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

13

. PIPE

1FG-14147-00-00

1
Out of stock

14

. PIPE

1FG-14147-00-00

1
Out of stock

15

. CARBURETOR ASSEMBLY 1

1NH-14901-00-00

1
Out of stock

15

CARBURETOR ASSEMBLY 1

(1NK-14901-00-00)

1
Out of stock

16

CARBURETOR ASSEMBLY 2

(1NH-14902-00-00)

1
Out of stock

16

CARBURETOR ASSEMBLY 2

(1NK-14902-00-00)

1
Out of stock

17

CARBURETOR ASSEMBLY 3

(1NH-14903-00-00)

1
Out of stock

17

CARBURETOR ASSEMBLY 3

(1NK-14903-00-00)

1
Out of stock

18

CARBURETOR ASSEMBLY 4

(1NH-14904-00-00)

1
Out of stock

18

CARBURETOR ASSEMBLY 4

(1NK-14904-00-00)

1
Out of stock

19

.. DIAPHRAGM ASSEMBLY

29R-14170-00-00

1
Out of stock

20

.. NEEDLE SET

1FG-1490J-00-00

1
Out of stock

21

.. NEEDLE VALVE ASSY

10L-14390-02-00

1
Out of stock

22

.. FLOAT

4H7-14985-00-00

1
Out of stock

23

.. PIN, FLOAT

4H7-14186-00-00

1
Out of stock

24

.. GASKET, FLOAT CHMBR (4H7-14984-00)

4H7-14984-01-00

1
Out of stock

25

.. PLUG, DRAIN

4X7-14191-01-00

1
Out of stock

26

.. NOZZLE, MAIN

29R-14921-32-00

1
Out of stock

27

JET, MAIN #107

(4H7-14925-07-00)

1
Out of stock

28

.. WASHER, MAIN JET

4H7-14945-00-00

1
Out of stock

29

.. JET, PILOT #365 (#365)

4H7-14948-36-00

1
Out of stock

30

.. PILOT SCREW SET

5H2-W1494-00-00

1
Out of stock

31

.. PLUNGER, STARTER

4H7-14171-00-00

1
Out of stock

32

.. CAP, PLUNGER

4H7-14174-00-00

1
Out of stock

33

.. COVER, PLUNGER CAP

4H7-14173-00-00

1
Out of stock

34

.. STARTER LEVER SET

5G2-W1495-00-00

1
Out of stock

35

. SPRING, PLUNGER

4H7-14135-00-00

1
Out of stock

36

.. SPRING, DIAPHRAGM

29R-14933-00-00

1
Out of stock

37

.. WASHER

4H7-14952-00-00

1
Out of stock

38

O-RING (686)

93210-07180-00

—

$2.88

In stock

39

PIPE

(1FG-14148-00-00)

1
Out of stock

40

PIPE

(1FG-14149-00-00)

1
Out of stock

41

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

42

WASHER, PLAIN (646)

92990-04600-00

—

$0.92

In stock

43

WASHER, PLAIN (646)

92990-04600-00

—

$0.92

In stock

44

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

45

WASHER, PLAIN (646)

92990-04600-00

—

$0.92

In stock

46

SCREW, PAN HEAD (E56)

98580-04010-00

—

$6.17

In stock

47

.. PLUG

4L6-14118-10-00

1
Out of stock

48

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

49

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

50

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

51

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

52

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

53

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

54

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock

55

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

56

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

57

.. COVER, CARB 1

1FG-14283-00-00

1
Out of stock

58

CLIP

90467-090A2-00

—

$2.51

In stock

59

CLIP

90467-100A1-00

—
Out of stock
