1985 Yamaha Maxim CA (XJ700NC) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1985 Yamaha Maxim CA (XJ700NC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

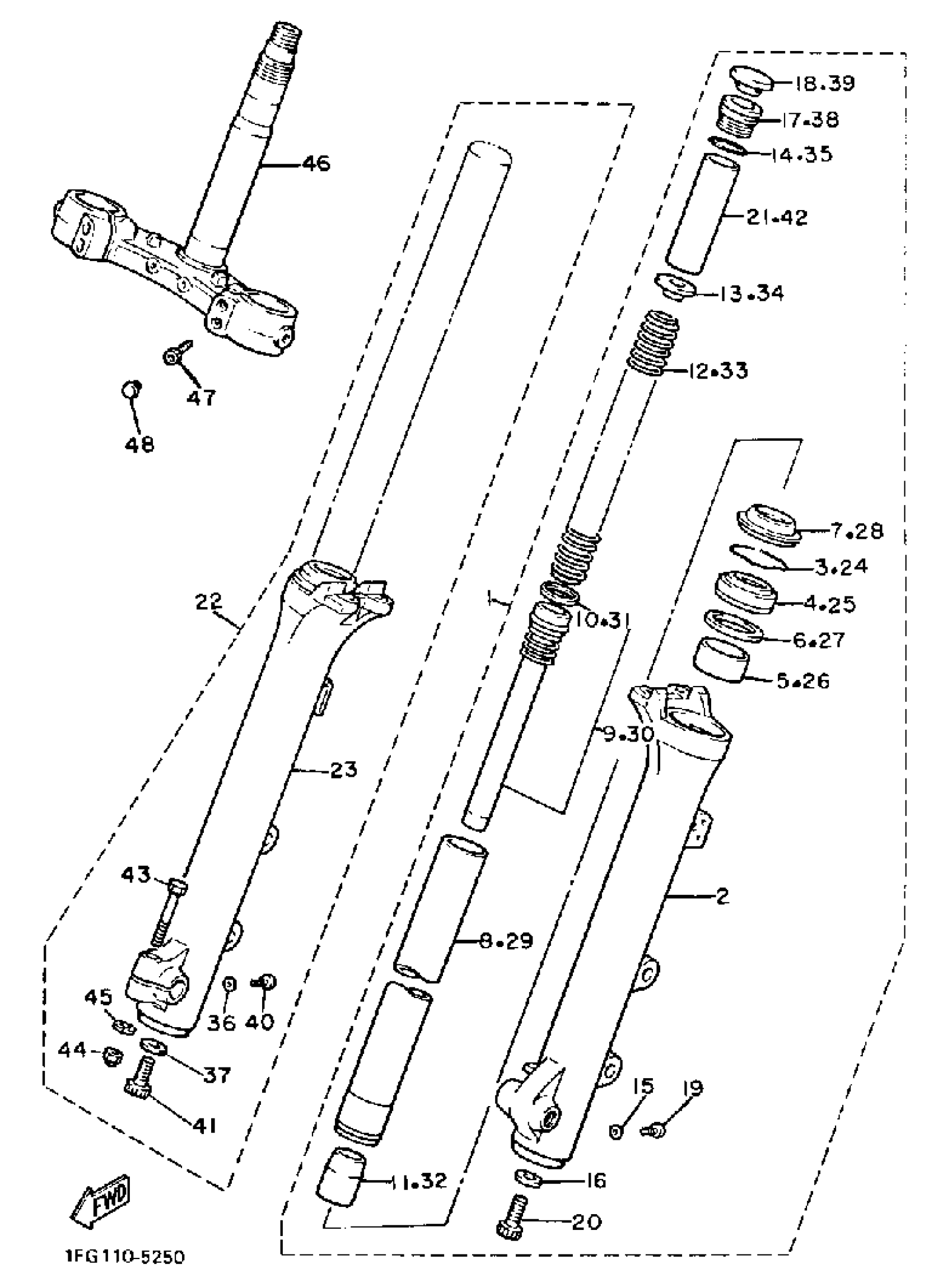

1985 Yamaha Maxim CA (XJ700NC) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY L (L.H.)

1FG-23102-00-00

1
Out of stock

2

TUBE,OUTER(LEFT)

3JK-23126-10-00

1
Out of stock

3

RING, SNAP

3R4-23153-00-00

1

$7.51

In stock

4

OIL SEAL

3EN-23145-00-00

1

$22.96

In stock

5

METAL, SLIDE 1

2YK-23125-00-00

1
Out of stock

6

WASHER

4V2-23146-L0-00

1
Out of stock

7

SEAL, DUST

42X-23144-01-00

—

$24.19

In stock

8

INNER TUBE 1

99999-02981-00

1
Out of stock

9

CYLINDER, FRTFRK

(1AA-23170-00-00)

1
Out of stock

10

.. RING, PISTON FRTFRK

31A-23157-00-00

1
Out of stock

11

TAPER SPINDLE

1W1-23173-L0-00

1

$15.98

In stock

12

SPRING, FRONT FORK

(1FG-23141-00-00)

1
Out of stock

13

. SEAT, SPRING UPPER

1W1-23142-L0-00

1
Out of stock

14

O-RING

1W1-23114-L0-00

1
Out of stock

15

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

16

GASKET

509-23158-L0-00

—

$14.34

In stock

17

. BOLT, CAP

31A-23111-31-00

1
Out of stock

18

CAP, FRONT FORK

42H-23168-00-00

—
Out of stock

19

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

20

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

21

. SPACER

42H-23118-00-00

1
Out of stock

22

FRONT FORK ASSEMBLY R (R.H.)

1FG-23103-00-00

1
Out of stock

23

TUBE,OUTER(RIGHT)

3JK-23136-10-00

1
Out of stock

24

RING, SNAP

3R4-23153-00-00

1

$7.51

In stock

25

OIL SEAL

3EN-23145-00-00

1

$22.96

In stock

26

METAL, SLIDE 1

2YK-23125-00-00

1
Out of stock

27

WASHER

4V2-23146-L0-00

1
Out of stock

28

SEAL, DUST

42X-23144-01-00

—

$24.19

In stock

29

INNER TUBE 1

99999-02981-00

1
Out of stock

30

CYLINDER, FRTFRK

(1AA-23170-00-00)

1
Out of stock

31

.. RING, PISTON FRTFRK

31A-23157-00-00

1
Out of stock

32

TAPER SPINDLE

1W1-23173-L0-00

1

$15.98

In stock

33

SPRING, FRONT FORK

(1FG-23141-00-00)

1
Out of stock

34

. SEAT, SPRING UPPER

1W1-23142-L0-00

1
Out of stock

35

O-RING

1W1-23114-L0-00

1
Out of stock

36

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

37

GASKET

509-23158-L0-00

—

$14.34

In stock

38

. BOLT, CAP

31A-23111-31-00

1
Out of stock

39

CAP, FRONT FORK

42H-23168-00-00

—
Out of stock

40

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

41

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

42

. SPACER

42H-23118-00-00

1
Out of stock

43

BOLT (1E6)

90101-08340-00

—

$2.72

In stock

44

NUT(6L2)

95333-08600-00

—

$3.20

In stock

45

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

46

UNDER BRACKET

1AA-23340-00-00

1
Out of stock

47

BOLT,SOCKET

91314-08030-00

—

$2.29

In stock

48

PLUG(42X)

90338-08163-00

—
Out of stock
