1985 Yamaha Maxim CA (XJ700NC) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1985 Yamaha Maxim CA (XJ700NC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

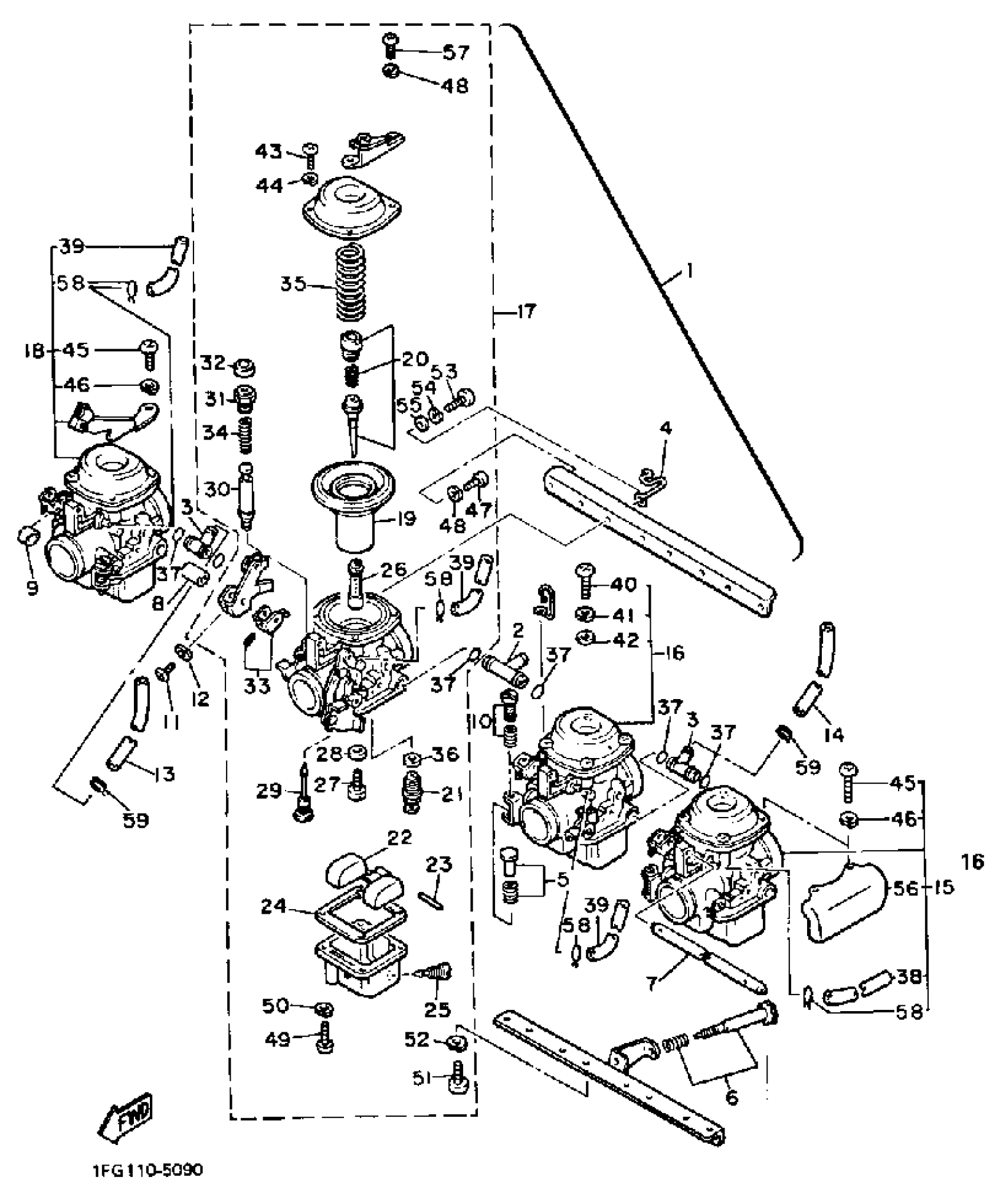

1985 Yamaha Maxim CA (XJ700NC) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOKASSEMBLY

1FG-14900-00-00

1
Out of stock

1

UNAVAILABLE IN PRICE BOOKASSEMBLY

1J-J1490-00-00

1
Out of stock

2

CONNECTOR

(29R-1410G-00-00)

1
Out of stock

3

CONNECTOR

(29R-1410F-00-00)

1
Out of stock

4

. CLIP

4H7-14919-00-00

1
Out of stock

5

. THROTTLE ADJUST SCREW 2 SET 2

5G2-W1492-00-00

1
Out of stock

6

. THROTTLE ADJUST SCREW 3 SET 3

5G2-W1493-00-00

1
Out of stock

7

. UNAVAILABLE IN PRICE BOOK

29-R1417-70-00

1
Out of stock

8

UNAVAILABLE IN PRICE BOOK

29-R1414-90-00

1
Out of stock

9

. WASHER

4H7-14973-00-00

1
Out of stock

10

. THROTTLE ADJUST SCREW 1 SET 1

5G2-W1491-00-00

1
Out of stock

11

SCREW, PAN HEAD

98507-03016-00

—
Out of stock

12

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

13

. UNAVAILABLE IN PRICE BOOK

1FG-14197-00-00

1
Out of stock

14

. PIPE

1FG-14147-00-00

1
Out of stock

15

CARBURETOR ASSEMBLY 1

(1FG-14901-00-00)

1
Out of stock

15

. UNAVAILABLE IN PRICE BOOKASSEMBLY 1

1J-J1490-10-00

1
Out of stock

16

. CARBURETOR ASSEMBLY 2ASSEMBLY 2

1FG-14902-00-00

1
Out of stock

16

. UNAVAILABLE IN PRICE BOOKASSEMBLY 2

1J-J1490-20-00

1
Out of stock

17

. CARBURETOR ASSEMBLY 3ASSEMBLY 3

1FG-14903-00-00

1
Out of stock

17

. UNAVAILABLE IN PRICE BOOKASSEMBLY 3

1J-J1490-30-00

1
Out of stock

18

. CARBURETOR ASSEMBLY 4ASSEMBLY 4

1FG-14904-00-00

1
Out of stock

18

CARBURETOR ASSEMBLY 4

(1JJ-14904-00-00)

1
Out of stock

19

.. DIAPHRAGM ASSEMBLY

29R-14170-00-00

1
Out of stock

20

.. NEEDLE SET

1FG-1490J-00-00

1
Out of stock

21

.. NEEDLE VALVE ASSY

10L-14390-02-00

1
Out of stock

22

.. FLOAT

4H7-14985-00-00

1
Out of stock

23

.. PIN, FLOAT

4H7-14186-00-00

1
Out of stock

24

.. GASKET, FLOAT CHMBR (4H7-14984-00)

4H7-14984-01-00

1
Out of stock

25

.. PLUG, DRAIN

4X7-14191-01-00

1
Out of stock

26

.. NOZZLE, MAIN

29R-14921-32-00

1
Out of stock

27

JET, MAIN #107

(4H7-14925-07-00)

1
Out of stock

28

.. WASHER, MAIN JET

4H7-14945-00-00

1
Out of stock

29

.. JET, PILOT #365 (#365)

4H7-14948-36-00

1
Out of stock

30

.. PLUNGER, STARTER

4H7-14171-00-00

1
Out of stock

31

.. CAP, PLUNGER

4H7-14174-00-00

1
Out of stock

32

.. COVER, PLUNGER CAP

4H7-14173-00-00

1
Out of stock

33

.. STARTER LEVER SET

5G2-W1495-00-00

1
Out of stock

34

. SPRING, PLUNGER

4H7-14135-00-00

1
Out of stock

35

.. SPRING, DIAPHRAGM

29R-14933-00-00

1
Out of stock

36

.. WASHER

4H7-14952-00-00

1
Out of stock

37

O-RING (686)

93210-07180-00

—

$2.88

In stock

38

.. UNAVAILABLE IN PRICE BOOK

1F-G1414-80-0]

1
Out of stock

39

.. UNAVAILABLE IN PRICE BOOK

1F-G1414-90-0]

1
Out of stock

40

SCREW, PAN HEAD (E56)

98580-04010-00

—

$6.17

In stock

41

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

42

WASHER, PLAIN (646)

92990-04600-00

—

$0.92

In stock

43

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

44

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

45

SCREW, PAN HEAD (E56)

98580-04010-00

—

$6.17

In stock

46

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

47

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

48

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

49

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

50

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

51

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

52

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

53

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock

54

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

55

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

56

.. COVER, CARB 1

1FG-14283-00-00

1
Out of stock

57

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

58

CLIP

90467-090A2-00

—

$2.51

In stock

59

CLIP

90467-100A1-00

—
Out of stock
