1982 Yamaha XJ650R (XJ650RJ) Front Fork Diagram

← All diagrams

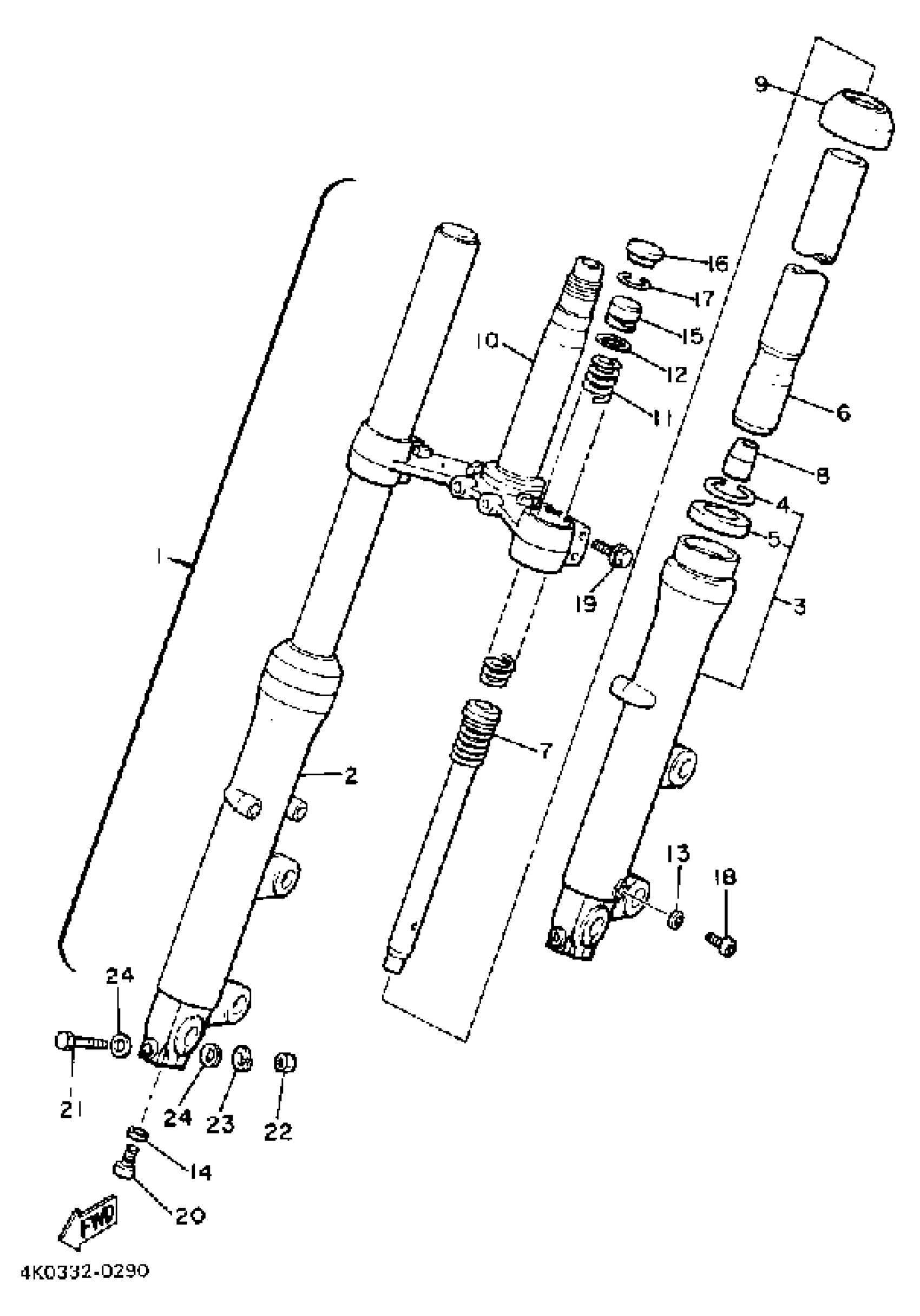

Find the part on the Front Fork diagram for your 1982 Yamaha XJ650R (XJ650RJ), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XJ650R (XJ650RJ) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

4K0-23101-20-00

1
Out of stock

2

TUBE, OUTER 2

(4K0-23136-00-00)

1
Out of stock

3

. TUBE, OUTER 1

4K0-23126-00-00

1
Out of stock

4

RING, SNAP

4A1-23156-00-00

1
Out of stock

5

OIL SEAL

4ES-23145-00-00

1
Out of stock

6

. INNER TUBE 1

4K0-23110-01-00

1
Out of stock

7

. CYLINDER, FRTFRK

4K0-23170-00-00

1
Out of stock

8

TAPER SPINDLE

1W1-23173-L0-00

1
Out of stock

9

SEAL, DUST

3J2-23144-00-00

—
Out of stock

10

. UNDER BRACKET

4K0-23340-00-00

1
Out of stock

11

. SPRING, FRONT FORK

4K0-23141-00-00

1
Out of stock

12

O-RING

3J2-23114-00-00

1
Out of stock

13

GASKET, DRAIN PLUG

122-23129-00-00

1
Out of stock

14

GASKET

509-23158-L0-00

1
Out of stock

15

. BOLT, CAP

3Y1-23111-00-00

1
Out of stock

16

. CAP, FRONT FORK

3Y1-23168-00-00

1
Out of stock

17

RING, SNAP

3J2-23183-00-00

—
Out of stock

18

SCREW, PAN HEAD(3XP)

98517-04006-00

1
Out of stock

19

BOLT, AXLE HOLDER

18G-23128-00-00

—
Out of stock

20

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—
Out of stock

21

BOLT, HEXAGON

97017-08060-00

—
Out of stock

22

NUT(6L2)

95333-08600-00

—
Out of stock

23

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

24

.. WASHER, PLATE

92990-08600-00

1
Out of stock
