1982 Yamaha XJ650L (XJ650LJ) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1982 Yamaha XJ650L (XJ650LJ), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

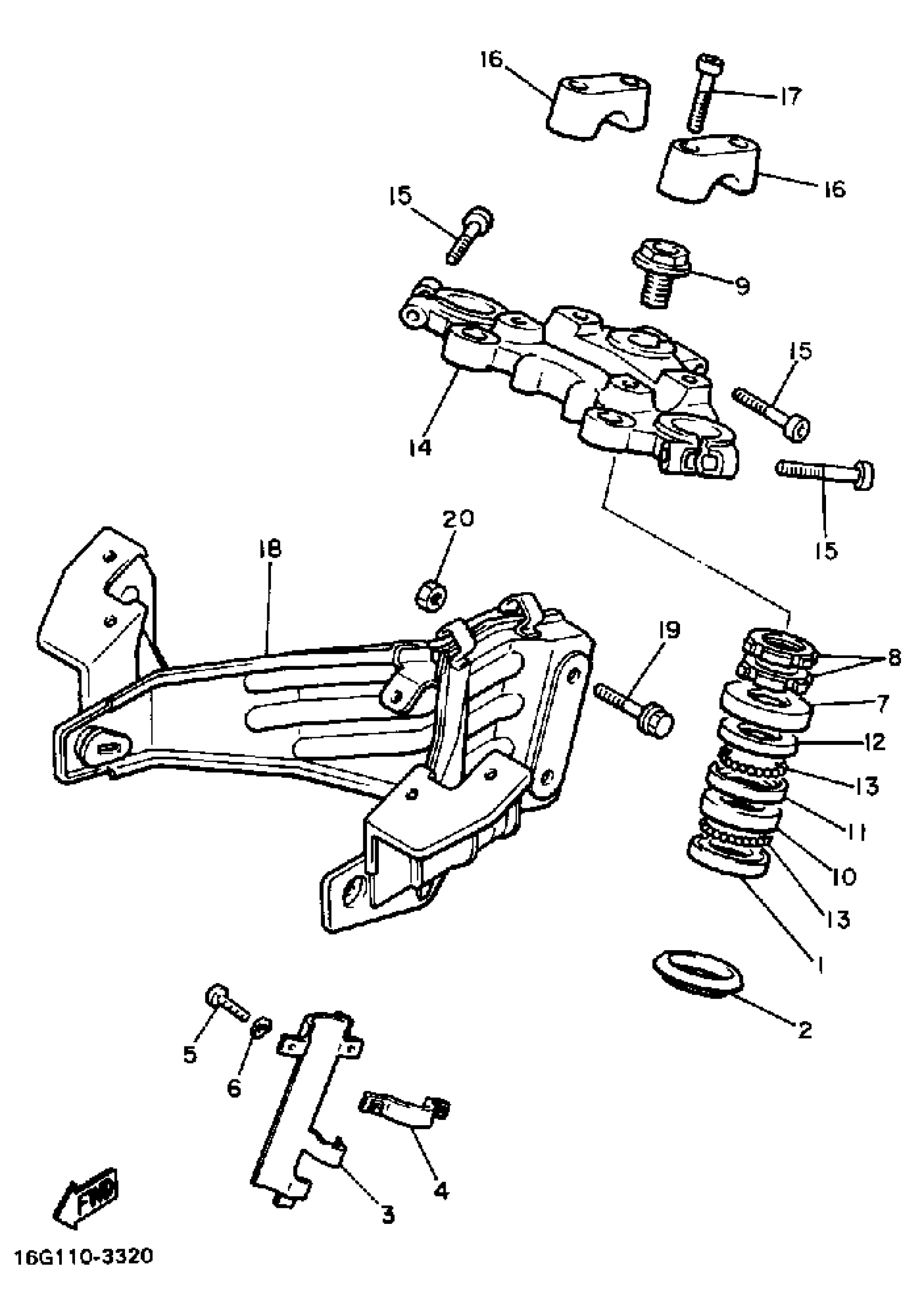

1982 Yamaha XJ650L (XJ650LJ) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 1

256-23411-00-00

1
Out of stock

2

SEAL, DUST

164-23462-00-00

1

$6.42

In stock

3

HOLDER, BRAKE HOSE

(16G-25887-00-00)

1
Out of stock

4

HOLDER, BRAKE HOSE

(16G-25886-00-00)

1
Out of stock

5

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

COVER, BALL RACE

136-23415-00-00

1

$7.71

In stock

8

NUT

90179-25004-00

1

$20.78

In stock

9

BOLT, WASHER BASED(1AR)

90105-14365-00

1

$10.12

In stock

10

RACE, BALL2

256-23412-00-00

—

$35.19

In stock

11

RACE, BALL3

256-23413-00-00

—

$35.19

In stock

12

RACE, BALL4

256-23414-00-00

—

$51.94

In stock

13

BALL

93501-04011-00

1
Out of stock

14

CROWN, HANDLE

16G-23435-00-98

1
Out of stock

15

BOLT, SOCKET

91317-08045-00

—

$6.82

In stock

16

HOLDER, HANDLE UPR

360-23441-01-98

1
Out of stock

17

BOLT, SOCKET

91317-08030-00

—

$6.17

In stock

18

STAY, HEADLIGHT

22N-23174-00-00

1
Out of stock

19

BOLT, WASHER BASED

90105-08107-00

1
Out of stock

20

NUT(55X)

90179-08491-00

—
Out of stock
