1982 Yamaha XJ650L (XJ650LJ) Shift Cam Fork Diagram

← All diagrams

Find the part on the Shift Cam Fork diagram for your 1982 Yamaha XJ650L (XJ650LJ), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

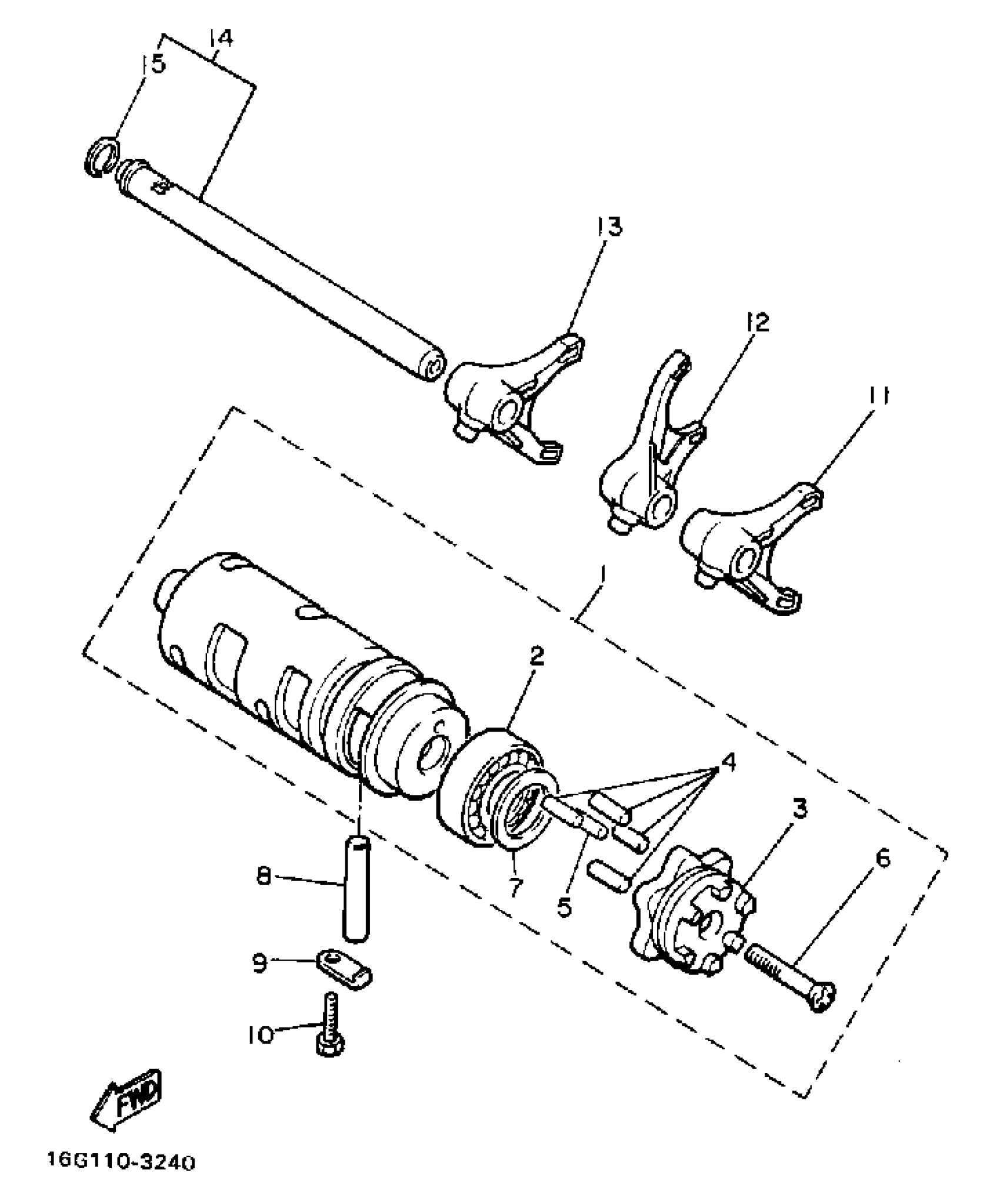

1982 Yamaha XJ650L (XJ650LJ) Shift Cam Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSEMBLY

16G-18540-00-00

1
Out of stock

2

BEARING (5K5)

93306-90501-00

1
Out of stock

3

. SEGMENT

16G-18185-00-00

1
Out of stock

4

PIN, DOWEL (409)

93604-16092-00

1
Out of stock

5

PIN,DOWEL (603)

93604-10011-00

1
Out of stock

6

SCREW, FLAT

98707-05035-00

1
Out of stock

7

WASHER, PLATE(59W)

90201-253K0-00

1
Out of stock

8

PIN, DOWEL (4H7)

93608-43157-00

1
Out of stock

9

PLATE, STOPPER

2H7-15531-00-00

—
Out of stock

10

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1
Out of stock

11

FORK, SHIFT 1

4KM-18511-00-00

—
Out of stock

12

FORK, SHIFT 2

4KM-18512-00-00

1
Out of stock

13

FORK, SHIFT 3

4KM-18513-00-00

—
Out of stock

14

BAR, SHIFT FORK GUIDE 1

4KM-18531-00-00

—
Out of stock

15

CIRCLIP 214156170000

93440-11029-00

1
Out of stock
