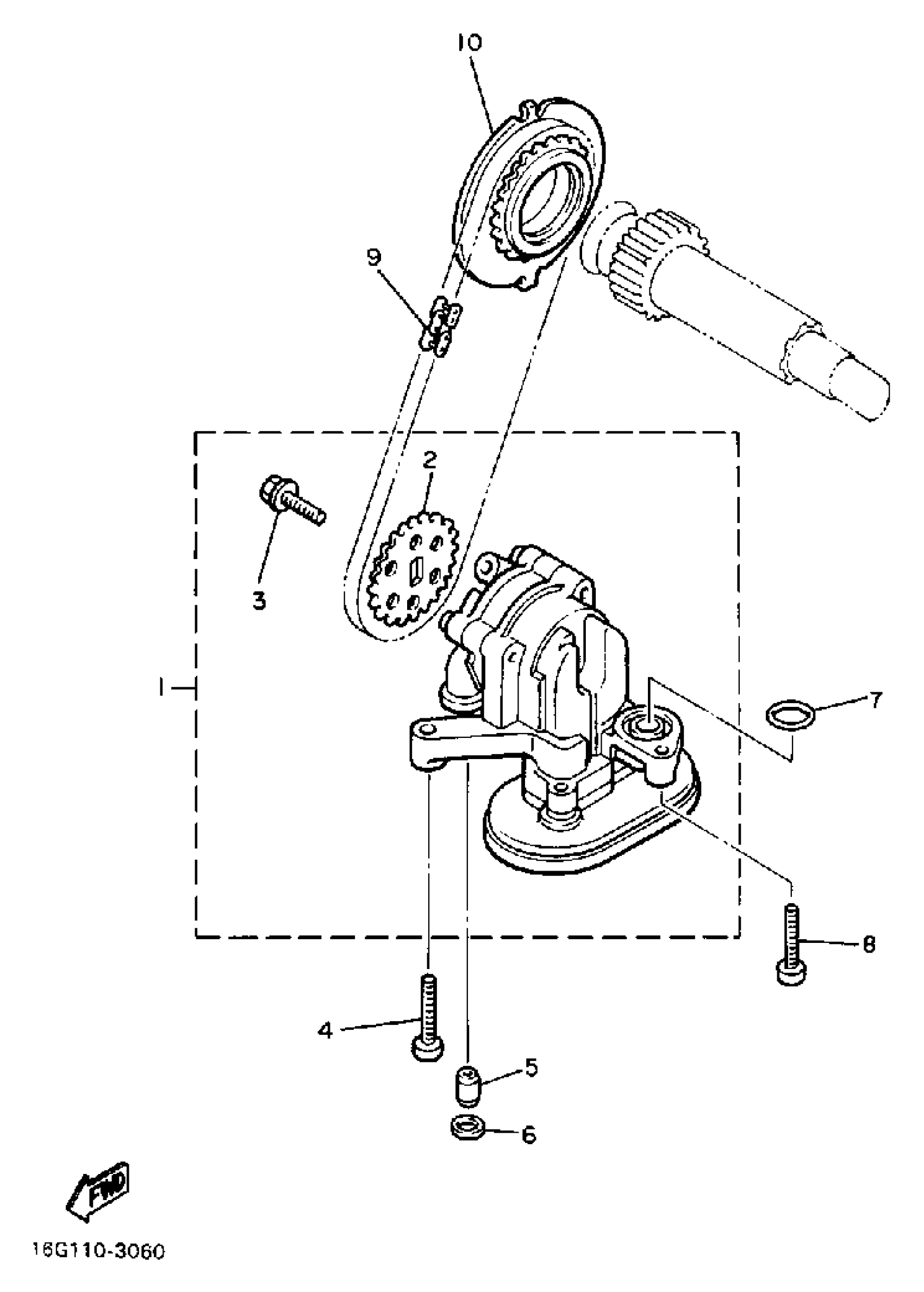

Yamaha XJ650LJ (XJ650L) 1982 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSEMBLY

16G-13300-00-00

Unavailable

2

. SPROCKET, DRIVENDRIVEN (23T)

16G-13355-00-00

Unavailable

3

BOLT, WASHER BASED (4H7)

90105-06154-00

$3.65

4

BOLT, HEXAGON SOCKET HEAD (4H7

90110-06035-00

$6.22

5

PIN, DOWEL(3XW)

91808-16023-00

$5.26

6

GASKET

90430-07179-00

Unavailable

7

O-RING (1J7)

93210-18319-00

$6.39

8

BOLT,SOCKET

91317-06025-00

$1.91

9

CHAIN

94580-31058-00

$17.59

10

SPROCKET, DRIVE

4H7-13354-00-00

Unavailable
