1982 Yamaha XJ650L (XJ650LJ) Frame Diagram

← All diagrams

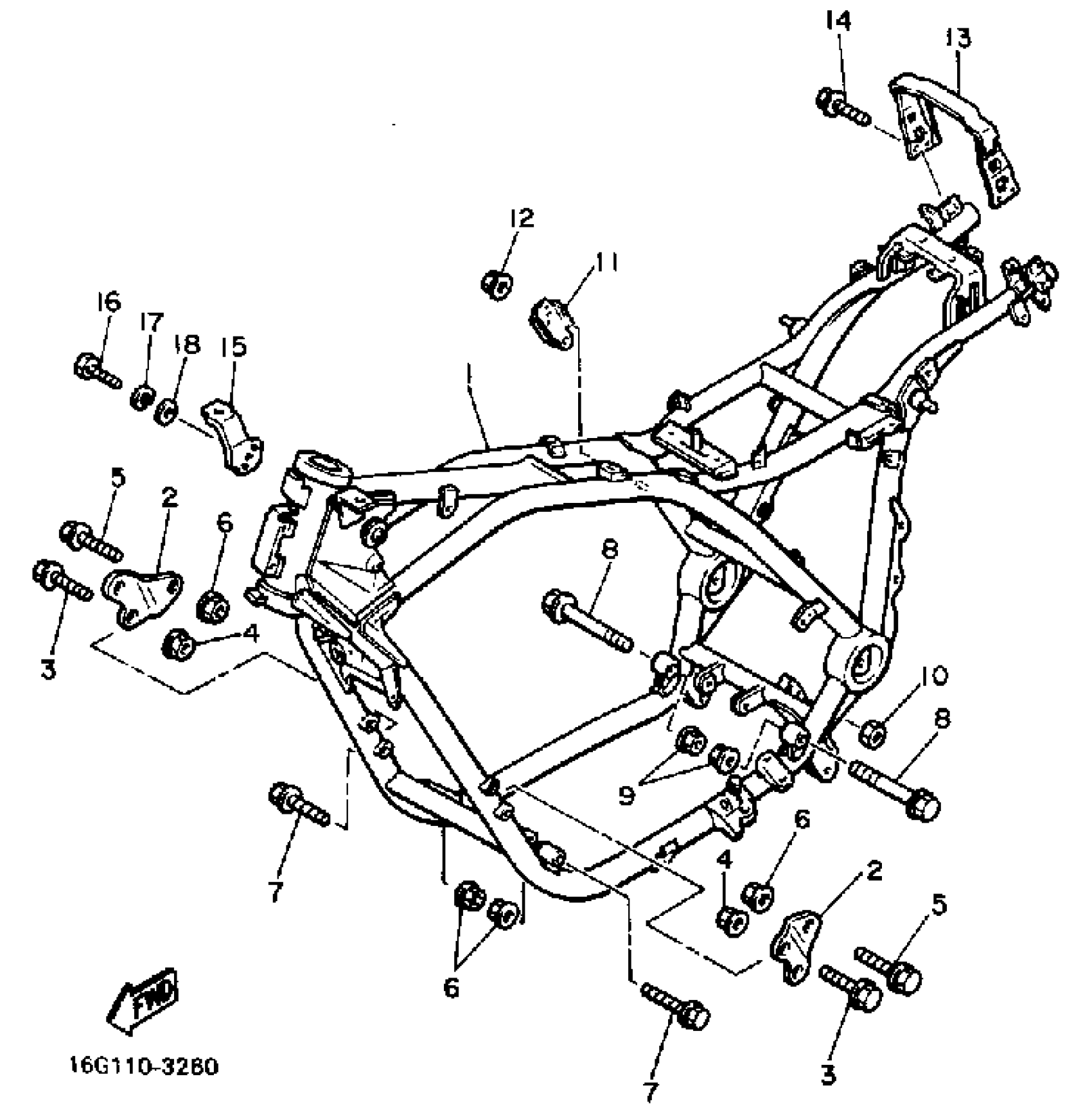

Find the part on the Frame diagram for your 1982 Yamaha XJ650L (XJ650LJ), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XJ650L (XJ650LJ) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

16G-21110-00-98

1
Out of stock

2

STAY, ENGINE 2

5G2-21315-00-00

1
Out of stock

3

BOLT, WASHER BASED

90105-08107-00

1
Out of stock

4

NUT(55X)

90179-08491-00

1
Out of stock

5

BOLT, WASHER BASED (4K0)

90105-10169-00

1

$9.98

In stock

6

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

7

BOLT, WASHER BASED(59V)

90105-10392-00

1

$8.40

In stock

8

BOLT, WASHER BASED

90105-12168-00

1
Out of stock

9

NUT(3GG)

90179-12588-00

1

$5.65

In stock

10

NUT, SPEC''L SHAPE

(90179-08388-00)

1
Out of stock

11

STAY 1

16G-2142G-00-00

1
Out of stock

12

NUT, FLANGE(4MV)

95707-06500-00

1

$0.78

In stock

13

BRCKT, REAR FNDR 1

16G-21151-00-00

1
Out of stock

14

BOLT, FLANGE

95812-06010-00

1

$2.75

In stock

15

BRACKET

(16G-2134V-01-00)

1
Out of stock

16

BOLT, HEXAGON

97017-06016-00

—

$6.18

In stock

17

WASHER, SPRING

92907-06100-00

—
Out of stock

18

WASHER(6TA)

92907-06600-00

—

$0.78

In stock
