1981 Yamaha XJ650L (XJ650LH) Crankcase Diagram

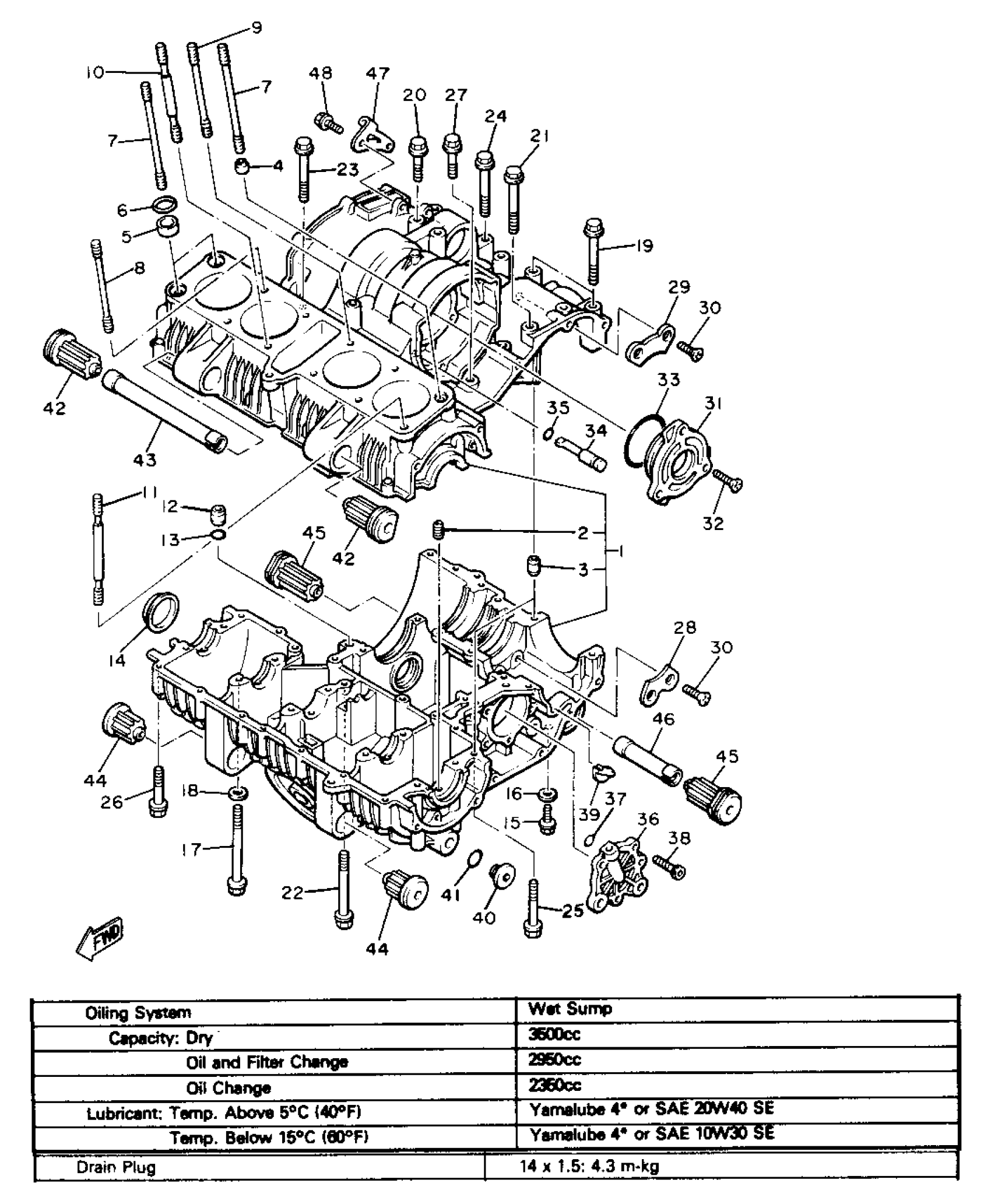

Find the part on the Crankcase diagram for your 1981 Yamaha XJ650L (XJ650LH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
CRANKCASE ASSEMBLY
(4W5-15100-00-00)
2
NOZZLE
4KM-13572-01-00
7
BOLT, CYLINDER HOLDING 4
4H7-11364-00-00
11
BOLT, CYLINDER HOLDING 4
4H7-11364-00-00
17
BOLT, FLANGE
(95816-08105-00)
20
BOLT, FLANGE
95816-06135-00
21
BOLT, FLANGE
(95816-06120-00)
22
BOLT, FLANGE
95817-06080-00
23
BOLT, FLANGE
95817-06070-00
24
BOLT, FLANGE
95817-06060-00
28
PLATE, BRNG COVER
(31A-15381-00-00)
31
HOUSING, BEARING 1
4H7-15163-01-00
34
NOZZLE
4H7-13454-00-00
35
UNAVAILABLE IN PRICE BOOK
93210-07423-00
36
HOUSING, BEARING 2
(5G2-15164-00-00)
39
GROMMET
4H7-15365-00-00
40
PLUG
4H7-15189-00-00
43
SPACER, ENG MOUNT (4W5-15317-00)
4H7-15317-00-00
44
DAMPER, ENG MOUNT 1
4H7-15316-00-00
45
DAMPER, ENGINE MOUNT 2 (2H7-15326-01-00)
36Y-15326-00-00
46
SPACER, ENG MOUNT (4W5-15327-00)
4H7-15327-00-00
47
HOLDER, CLUTCH CABLE
4H7-15441-01-00
