1982 Yamaha XJ650 (XJ650J) Side Cover Tool Diagram

← All diagrams

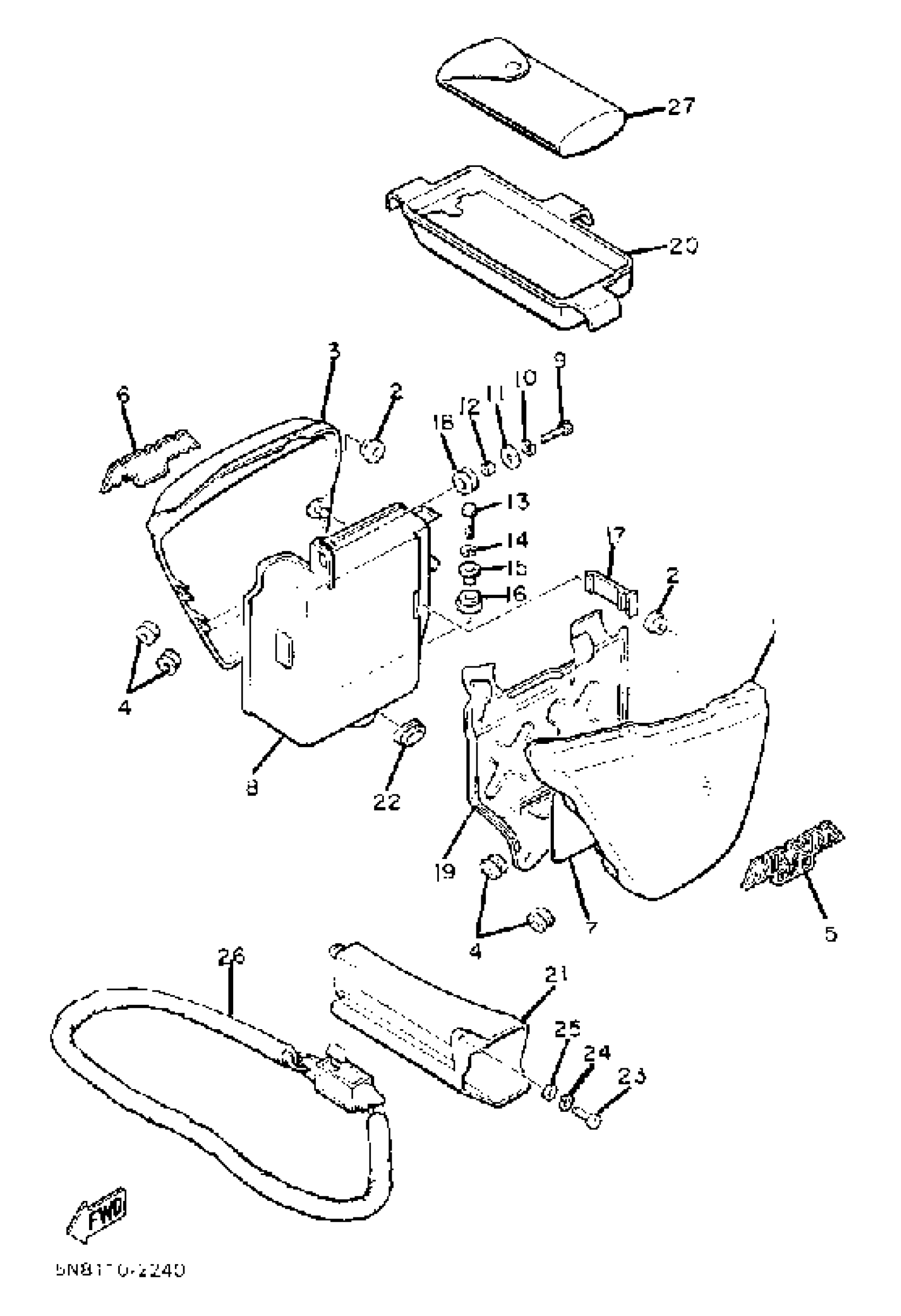

Find the part on the Side Cover Tool diagram for your 1982 Yamaha XJ650 (XJ650J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XJ650 (XJ650J) Side Cover Tool Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

(4H7-21711-01-4J)

1
Out of stock

1

COVER, SIDE 1

4H7-21711-01-H8

1
Out of stock

2

GROMMET(41Y)

90480-01401-00

1

$5.51

In stock

3

COVER, SIDE 2

4H7-21721-02-4J

1
Out of stock

3

COVER, SIDE 2

4H7-21721-02-H8

1
Out of stock

4

DAMPER, SIDE COVER (437)

90480-12053-00

1

$5.78

In stock

5

EMBLEM 1

5N8-21781-00-00

1
Out of stock

6

EMBLEM 2

5N8-21782-00-00

1
Out of stock

7

PLATE, SPEC

5N8-21683-01-00

1
Out of stock

8

BOX

(4H7-21240-01-00)

1
Out of stock

9

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

WASHER, PLATE

90201-06747-00

1

$6.17

In stock

12

COLLAR

90387-06113-00

1

$10.51

In stock

13

BOLT (682)

97013-08025-00

1

$6.80

In stock

14

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

15

COLLAR (21X)

90387-093H1-00

—

$8.29

In stock

16

DAMPER

4H7-21746-00-00

1
Out of stock

17

HOOK, BANK

4H7-2175R-00-00

1
Out of stock

18

GROMMET (2N3)

90480-16233-00

—

$6.82

In stock

19

PLATE, BRIDGE

4H7-21243-01-00

1
Out of stock

20

BOX

4H7-21170-00-00

1
Out of stock

21

BOX

4H7-21258-00-00

1
Out of stock

22

GROMMET

90480-22084-00

—
Out of stock

23

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

WASHER, PLATE

90201-06020-00

—

$6.28

In stock

26

WHEEL LOCK ASSEMBLY (4X7-W2171-00)

4W5-W2171-00-00

1
Out of stock

27

TOOL KIT

1FX-28100-00-00

1
Out of stock
