FRONT FORK
1982 Yamaha XJ650 (XJ650J) Front Fork Diagram

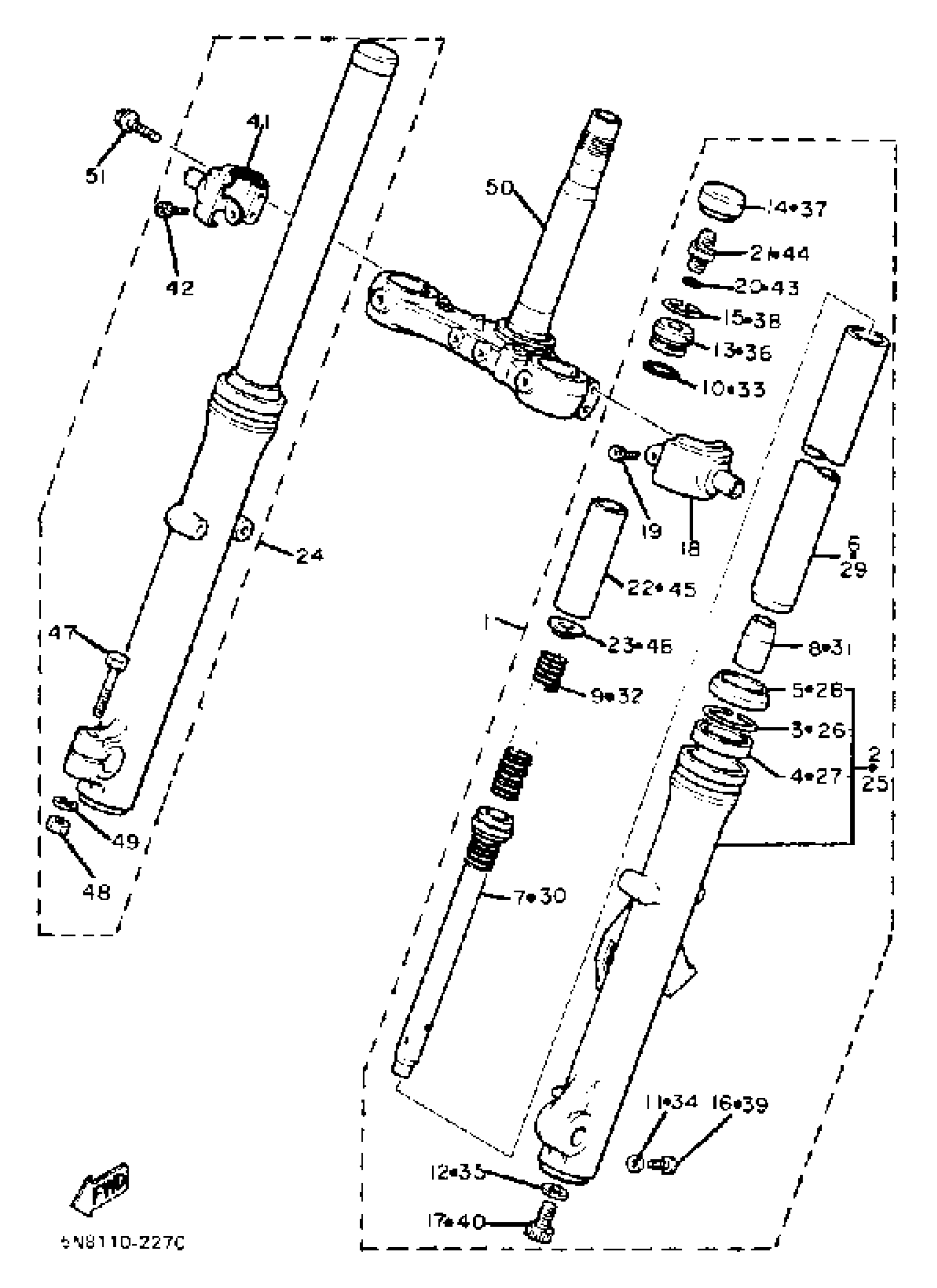

Find the part on the Front Fork diagram for your 1982 Yamaha XJ650 (XJ650J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT FORK ASSEMBLY L
(5N8-23102-00-00)
2
. TUBE, OUTER 1
4H7-23126-00-00
6
. INNER TUBE 1
4H7-23110-00-00
7
. CYLINDER, FRTFRKFRONT FORK
4H7-23170-00-00
9
SPRING, FRONT FORK
(5N8-23141-00-00)
13
. BOLT, CAP
3J2-23111-00-00
14
. CAP, FRONT FORK
4X7-23168-00-00
18
. COVER, OUTER 1
4H7-23122-00-00
19
. BOLT, HEX SCKT HEAD
4H7-23181-00-00
20
O-RING
3J2-23147-00-00
22
SPACER
5N8-23118-00-00
23
. SEAT, SPRING UPPER
583-23142-00-00
24
FRONT FORK ASSEMBLY R
5N8-23103-00-00
25
. TUBE, OUTER 2
22U-23136-01-38
29
. INNER TUBE 1
4H7-23110-00-00
30
. CYLINDER, FRTFRKFRONT FORK
4H7-23170-00-00
32
SPRING, FRONT FORK
(5N8-23141-00-00)
36
. BOLT, CAP
3J2-23111-00-00
37
. CAP, FRONT FORK
4X7-23168-00-00
41
. COVER, OUTER 2
4H7-23132-00-00
42
. BOLT, HEX SCKT HEAD
4H7-23181-00-00
43
O-RING
3J2-23147-00-00
45
SPACER
5N8-23118-00-00
46
. SEAT, SPRING UPPER
583-23142-00-00
47
BOLT
97013-08045-00
50
. UNDER BRACKET
5N8-23340-00-33
