1982 Yamaha XJ650 (XJ650J) Crankcase Cover Diagram

← All diagrams

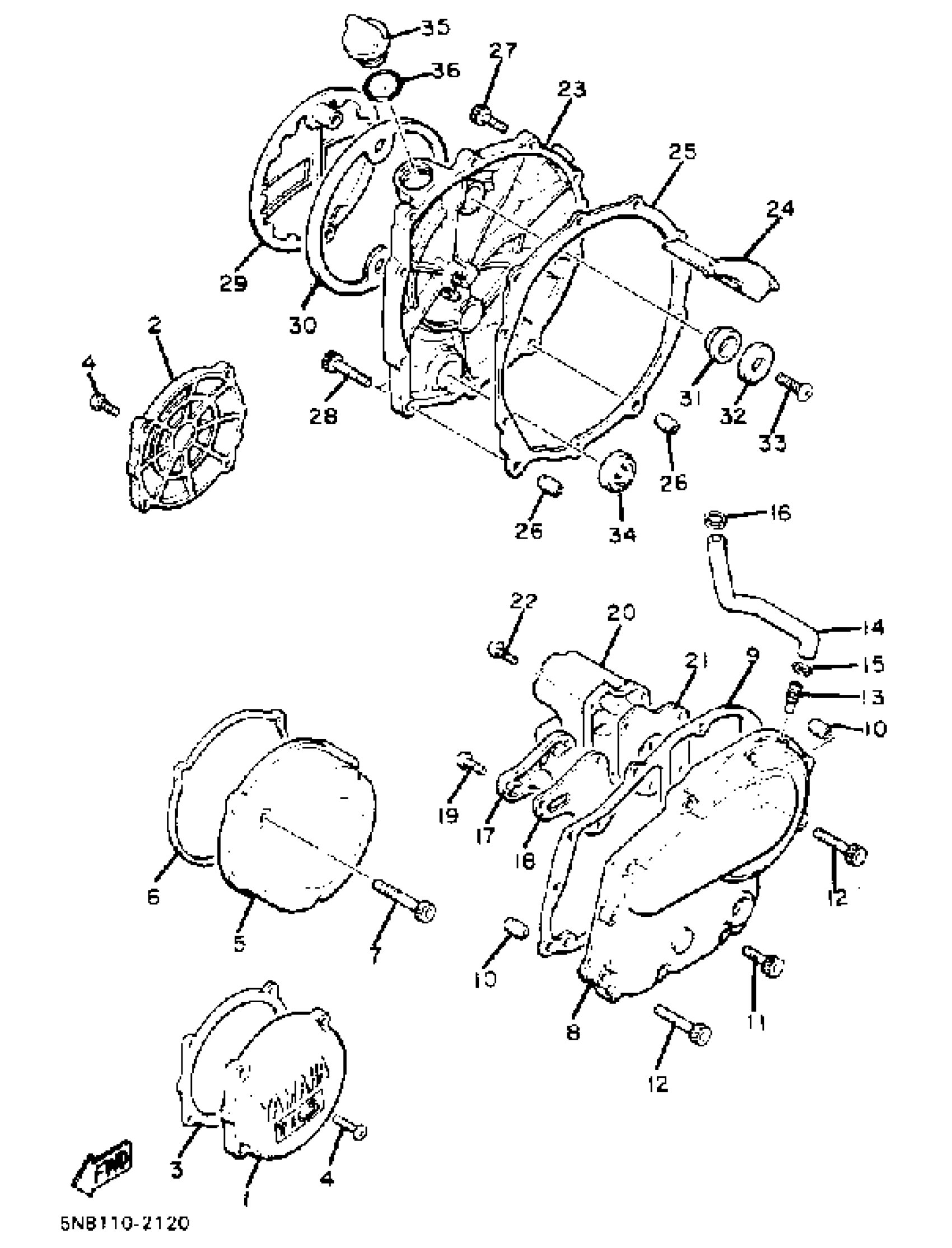

Find the part on the Crankcase Cover diagram for your 1982 Yamaha XJ650 (XJ650J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XJ650 (XJ650J) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, OIL PUMP

4U8-15416-01-00

1
Out of stock

2

COVER, OIL PUMP R

4U8-15426-01-00

1
Out of stock

3

GASKET, OIL PUMP COVER 1

4BB-15456-00-00

1
Out of stock

4

SCREW, BIND (J17)

98980-06020-00

1
Out of stock

5

COVER, GENERATOR

4H7-15415-00-00

1
Out of stock

6

GASKET 1

4BB-15455-00-00

1
Out of stock

7

BOLT, SOCKET

91314-06070-00

1
Out of stock

8

COVER, CRANKCASE L

5N8-15411-00-00

1
Out of stock

9

GASKET, CRANKCASE COVER 1

4BB-15451-00-00

1
Out of stock

10

PIN, DOWEL(3VD)

99530-10114-00

1
Out of stock

11

BOLT,SOCKET HEAD

91314-06025-00

1
Out of stock

12

BOLT, SOCKET

91314-06040-00

1
Out of stock

13

PIPE, BREATHER 2

371-11167-01-00

1
Out of stock

14

PIPE, BREATHER 1

4H7-11166-01-00

1
Out of stock

15

CLIP (371)

90467-14015-00

1
Out of stock

16

CLIP

90468-08104-00

—
Out of stock

17

BREATHER 1

(4H7-15346-00-00)

1
Out of stock

18

GASKET

4BB-15457-00-00

—
Out of stock

19

SCREW, PAN

98507-06014-00

—
Out of stock

20

BREATHER 2

4H7-15347-01-00

—
Out of stock

21

GASKET

4BB-15467-00-00

—
Out of stock

22

SCREW, PAN

98507-06014-00

—
Out of stock

23

COVER, CRANKCASE R

4H7-15421-02-00

1
Out of stock

24

COVER, OIL PUMP

4H7-15412-01-00

1
Out of stock

25

GASKET, CRANKCASE COVER 2

4BB-15461-00-00

—
Out of stock

26

PIN, DOWEL(3VD)

99530-10114-00

1
Out of stock

27

BOLT,SOCKET HEAD

91314-06025-00

1
Out of stock

28

BOLT, SOCKET

91314-06040-00

1
Out of stock

29

COVER, CAP

5G2-15417-00-00

1
Out of stock

30

RING, RUBBER

4H7-15449-00-00

1
Out of stock

31

GROMMET

4H7-15486-00-00

—
Out of stock

32

WASHER (4H7)

90209-06096-00

—
Out of stock

33

SCREW, PAN

98507-06014-00

—
Out of stock

34

GAUGE, LEVEL

2H7-15361-00-00

—
Out of stock

35

PLUG, OIL

2H7-15363-00-00

—
Out of stock

36

O-RING(1KT)

93210-27778-00

—
Out of stock
