CRANKCASE

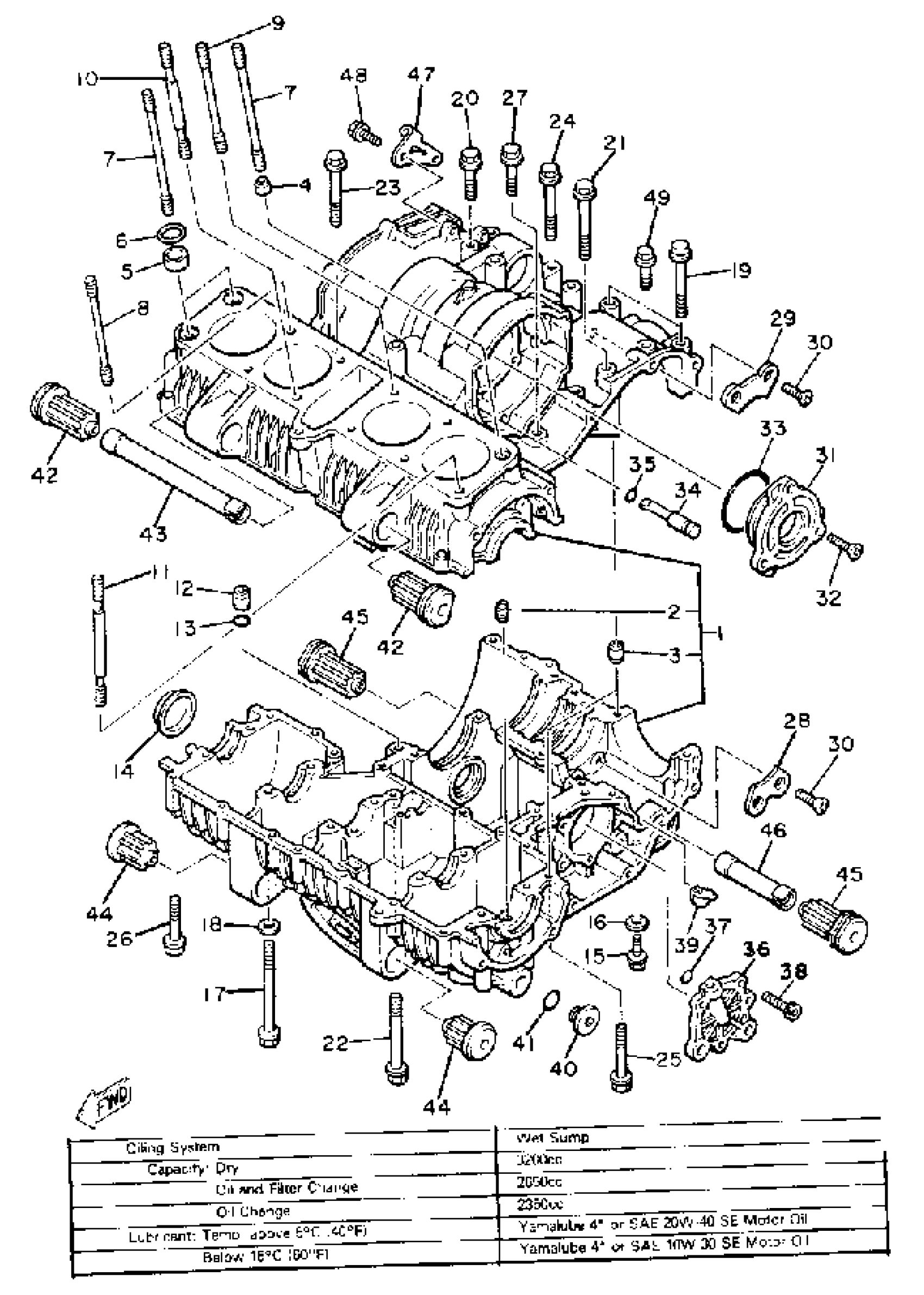

1980 Yamaha XJ650 (XJ650G) Crankcase Diagram
Find the part on the Crankcase diagram for your 1980 Yamaha XJ650 (XJ650G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
CRANKCASE ASSEMBLY
4H7-15100-03-00
1
CRANKCASE ASSEMBLY
(99999-01239-00)
2
NOZZLE
4KM-13572-01-00
11
BOLT, CYLINDER HOLDING 4
4H7-11364-00-00
20
BOLT, FLANGE
95817-06135-00
21
BOLT, FLANGE
95817-06120-00
22
BOLT, FLANGE
95817-06080-00
23
BOLT, FLANGE
95817-06070-00
24
BOLT, FLANGE
95817-06060-00
28
PLATE, BRNG COVER
(31A-15381-00-00)
31
HOUSING, BEARING 1
4H7-15163-01-00
32
SCREW, FLAT
98707-06014-00
34
NOZZLE
4H7-13454-00-00
36
HOUSING, BEARING 2
(5G2-15164-00-00)
39
GROMMET
4H7-15365-00-00
40
PLUG
4H7-15189-00-00
43
SPACER, ENG MOUNT (4W5-15317-00)
4H7-15317-00-00
44
DAMPER, ENG MOUNT 1
4H7-15316-00-00
45
DAMPER, ENGINE MOUNT 2 (2H7-15326-01-00)
36Y-15326-00-00
46
SPACER, ENG MOUNT (4W5-15327-00)
4H7-15327-00-00
47
HOLDER, CLUTCH CABLE
4H7-15441-01-00
49
BOLT, FLANGE
95817-06060-00
